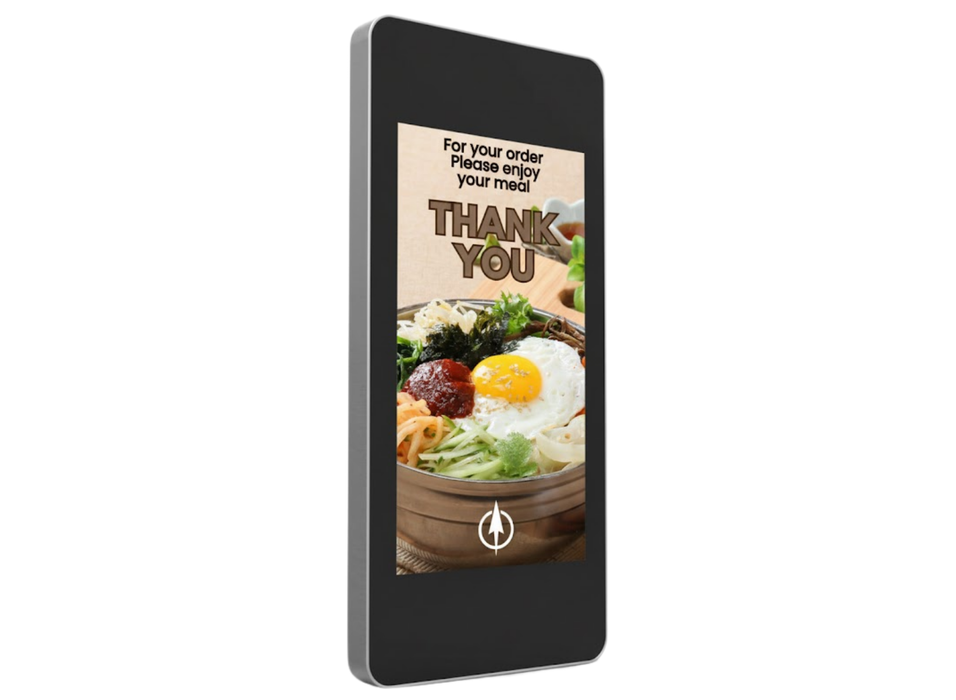

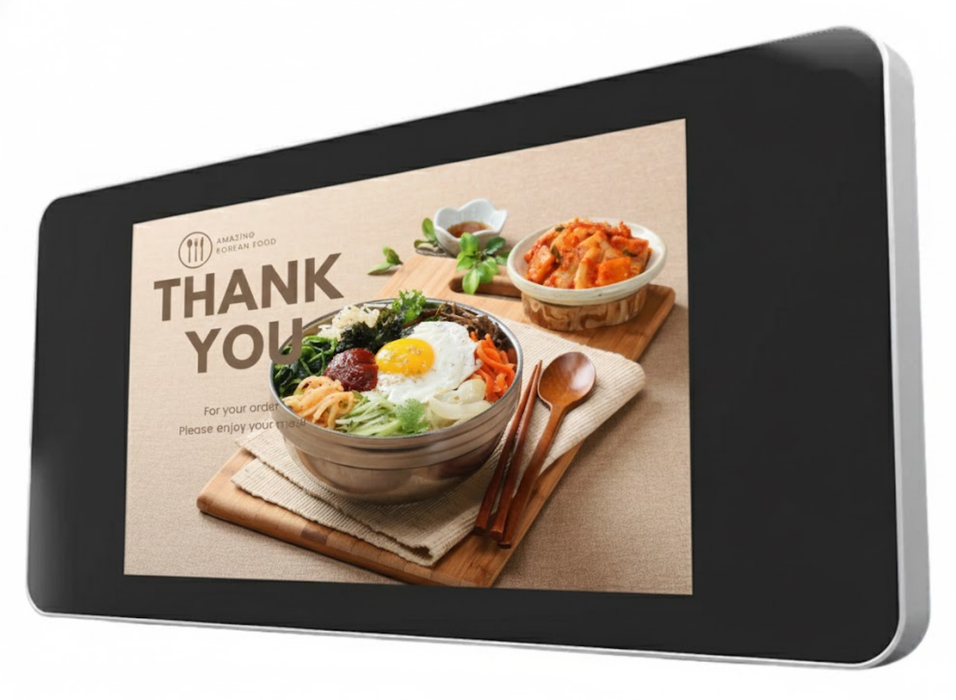

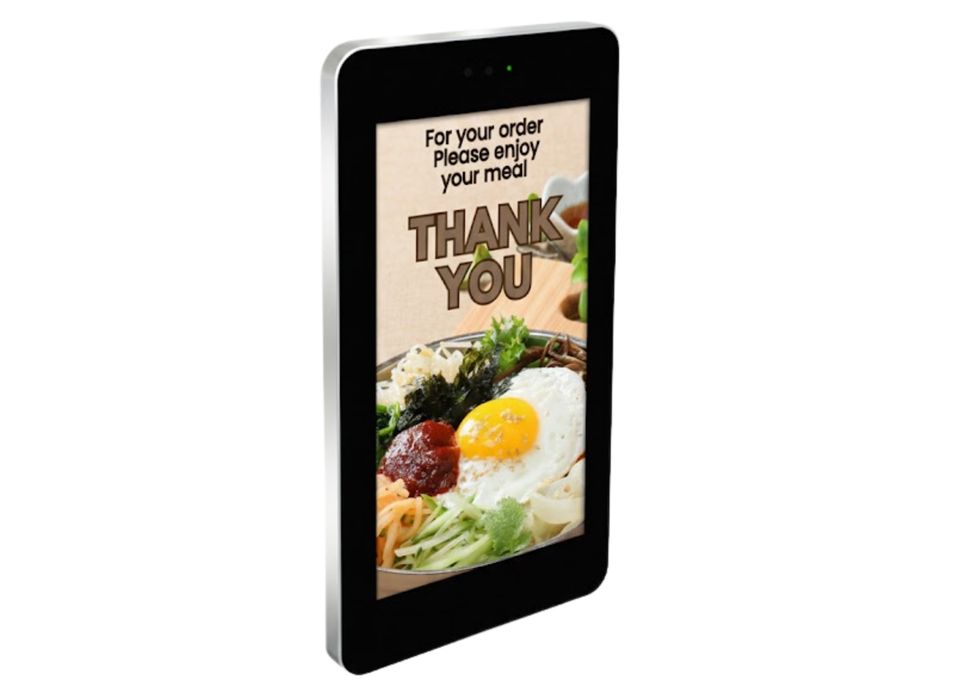

Wall-mounted PCAP Outdoor Touch Screens

Wall-mounted PCAP Outdoor Touch Screens

SKU: OW22D-T2
|
Vendor: North Digital Signage | PDF Icon Specsheet
Resolution Full HD (1080p)

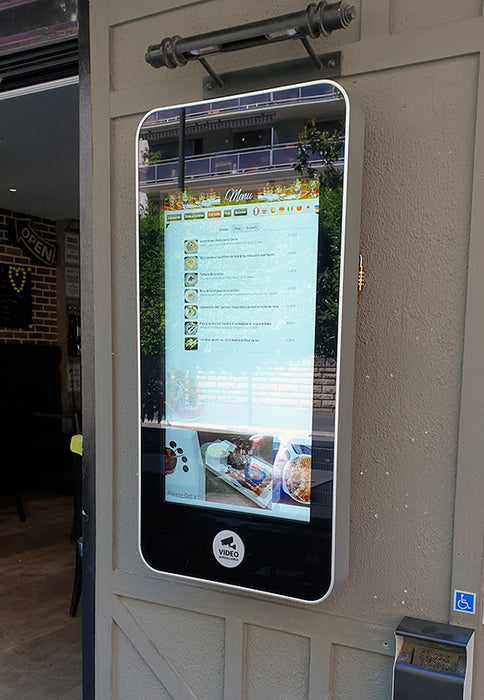

Orientation Landscape & Portrait
Operating Hours 24/7
Warranty 3 Year
Availability:
100 in stock.
Availability:
100 in stock.
Availability:
100 in stock.
Availability:
100 in stock.
Availability:
100 in stock.
Availability:
100 in stock.
🚚 Order before 4PM, get it by tomorrow.
Save £685.00 Save £448.00
£2,896.00
£2,896.00 - £10,140.00
£2,896.00
£2,448.00
£2,448.00 - £10,452.00
£2,448.00
(Inc. VAT)
Payment Icons
Request a quote
  • Description
  • Specifications
  • Downloads

  • Ultra-Bright Displays Built for Any Weather

    Direct Sunlight Readable
    Thanks to their commercial grade ultra-high brightness panels (2,000 cd/m²), these displays are up to 10 times brighter than a domestic TV and so are easily readable even in direct sunlight.


    Weatherproof
    Designed to withstand the elements, these displays are protected against all wet weather conditions and airborne dust particles by their robust IP65 rated enclosure. They also feature a waterproof coating on all internal circuit boards and waterproof over-moulded AV connectors.


    Vandal Proof
    With a mild steel enclosure and thermally-toughened glass front, these IK10 rated displays are designed to withstand any damage that may occur in public spaces. To avoid tampering, controls and inputs are hidden and cannot be accessed by passers-by.


    Advanced Temperature Control System
    To maximise the lifespan of the display, the internal airflow system keeps the screen running at the optimal temperature regardless of the external conditions. Built-in air conditioning can be tailored to allow the display to work in any climate.


    Anti Reflective Glass
    The front glass face is specially treated to help diffuse direct sunlight, making the display easily readable even in bright weather conditions.


    Plug and Play
    Plug and Play is the most straightforward way to upload content to the screen. Simply load images and videos onto a USB, insert into the display, wait for your content to copy over, then remove. Your images and videos will now play in a continuous loop.


    Optional Network Upgrade
    For a small charge, you can upgrade your screen to be networked. This will allow you to connect your screen via Wi-Fi, LAN or 4G, and then remotely update it over the internet.

    Internal Locker
    Should you need run the screen from an external source, there is space to fit a small PC or media player inside the lockable compartment. This can then be connected to the display via the HDMI, VGA or 3.5mm audio inputs.

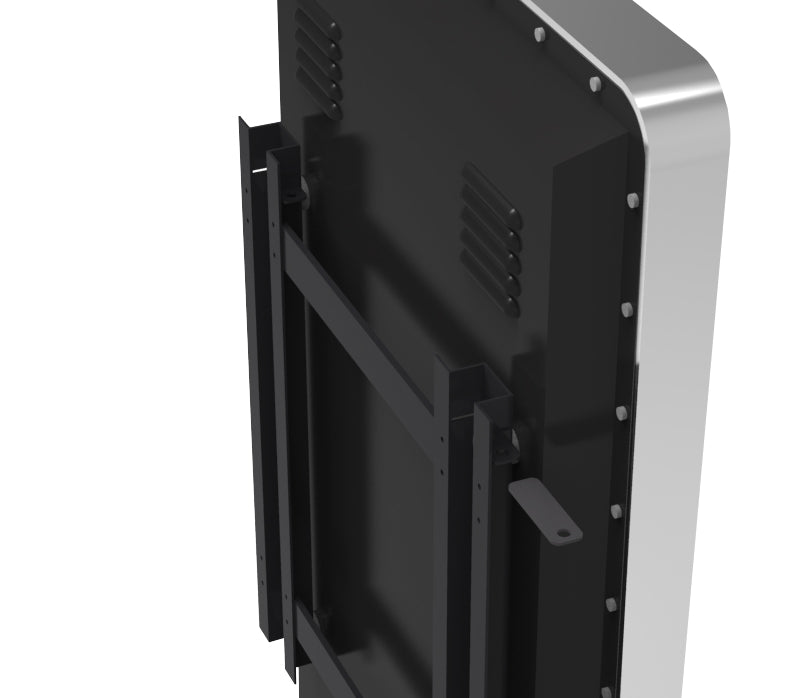

    Free Lockable Wall Mount

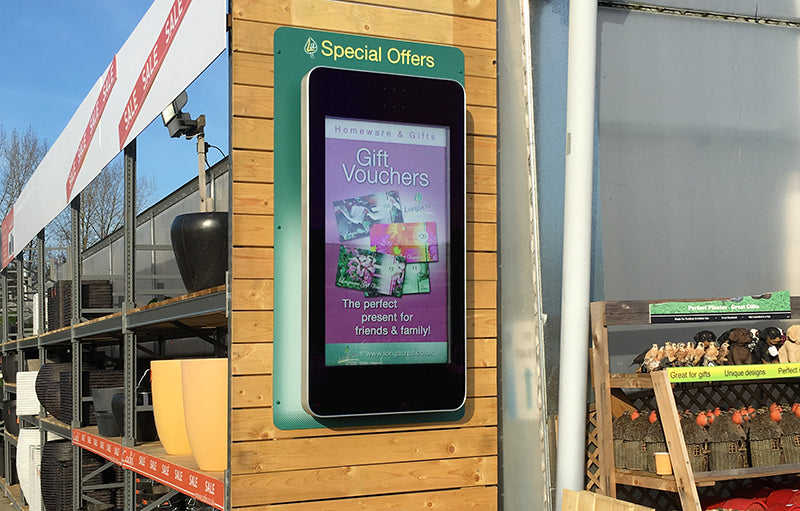

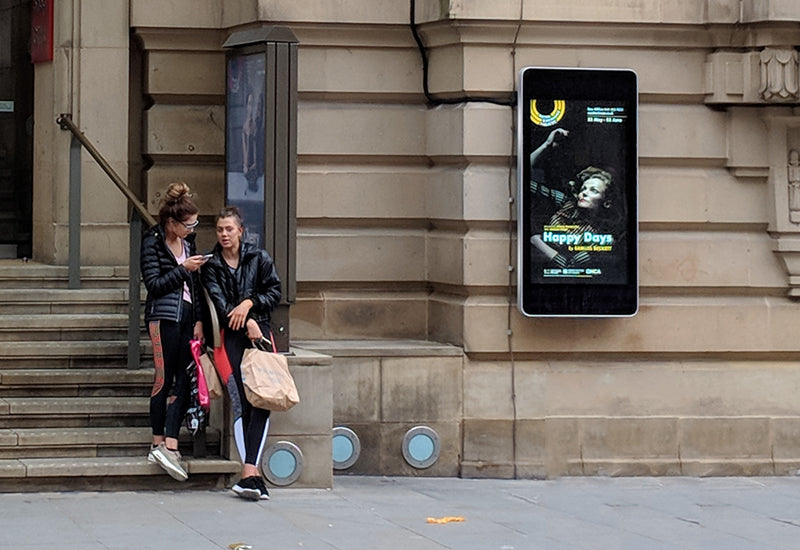

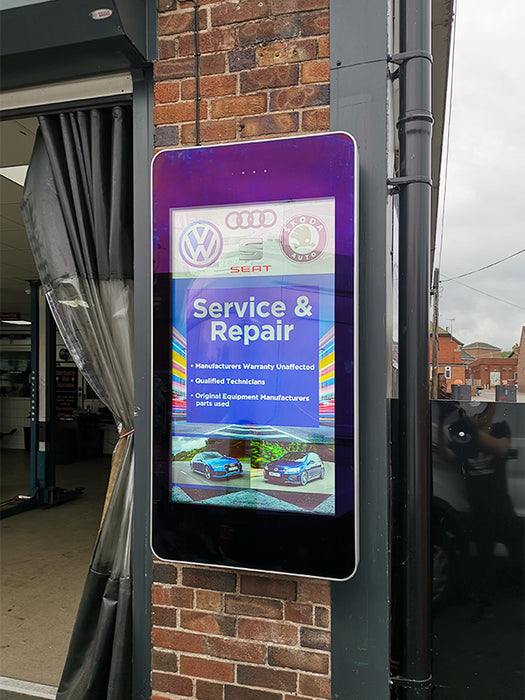

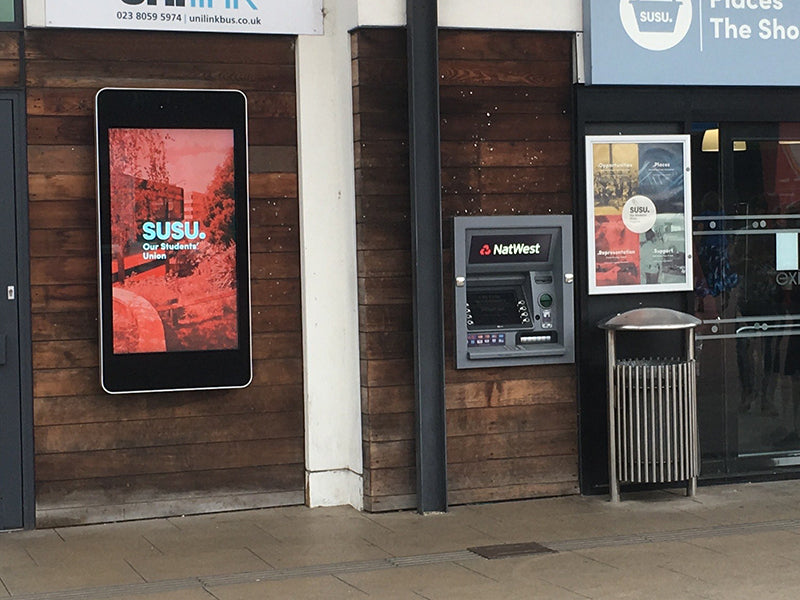

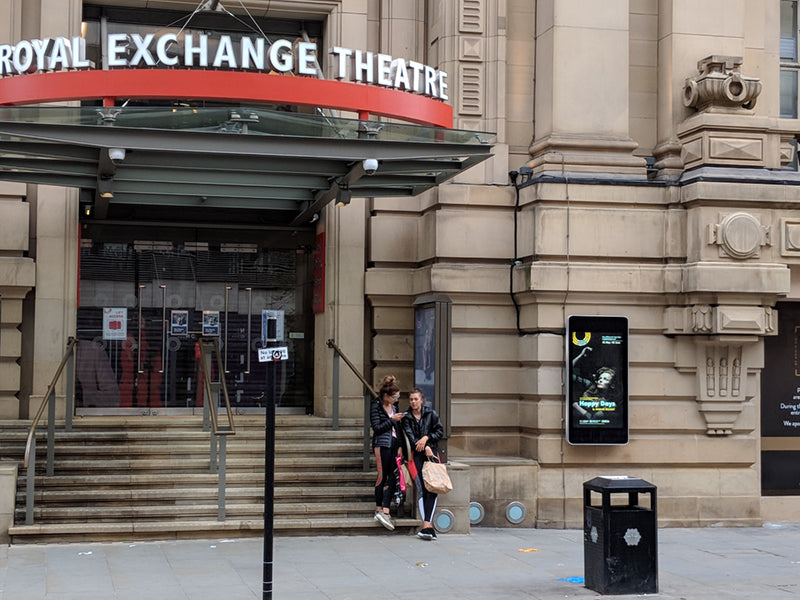

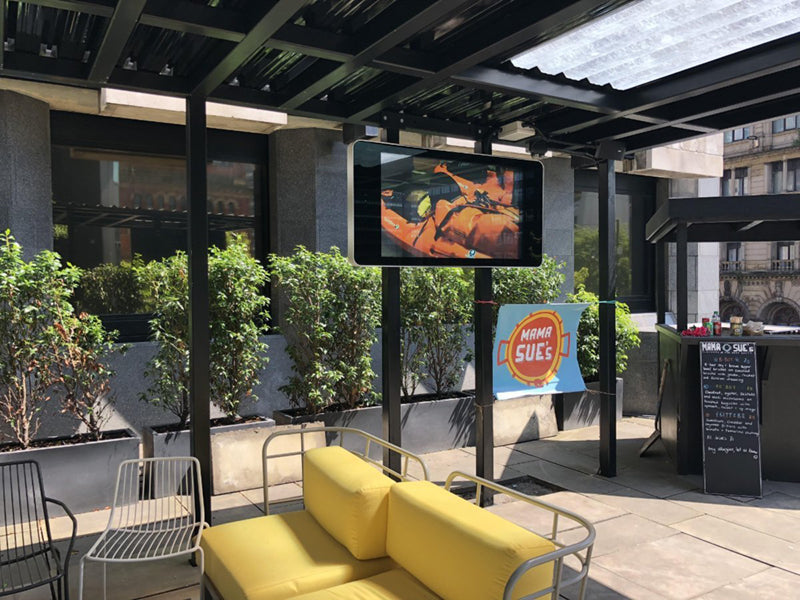

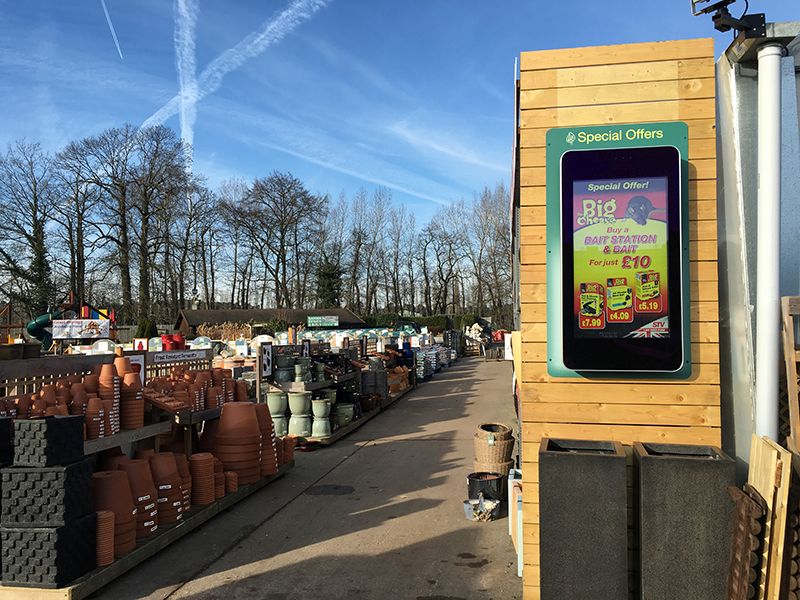

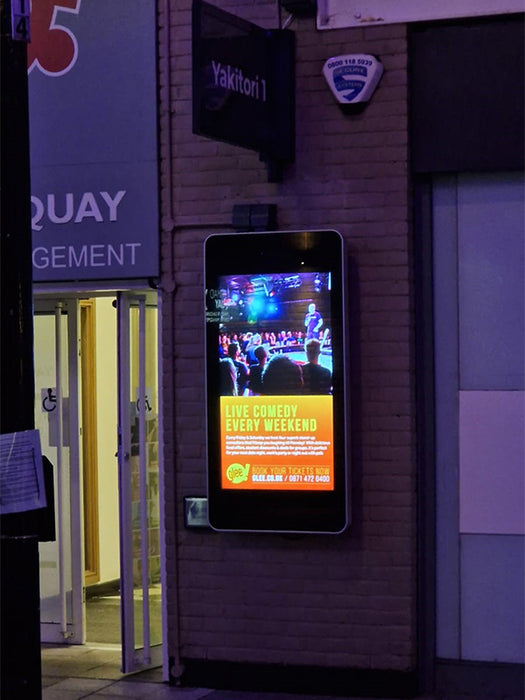

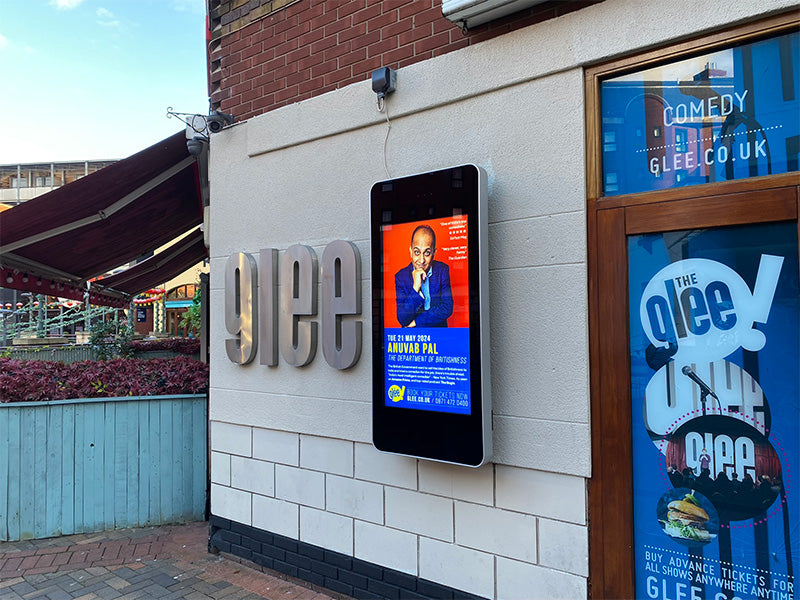

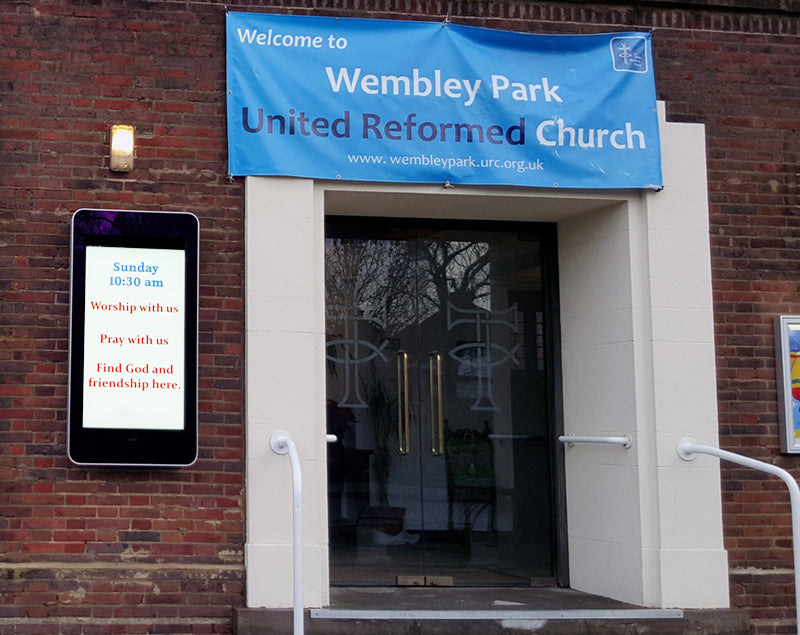

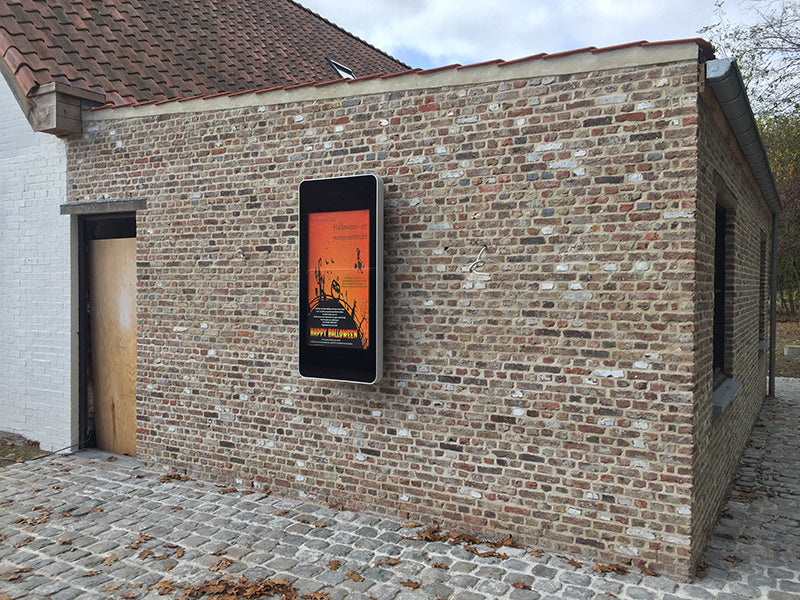

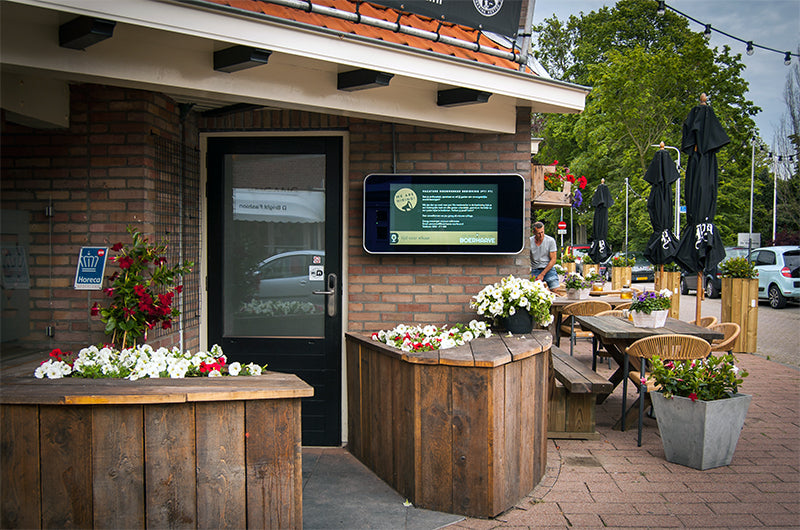

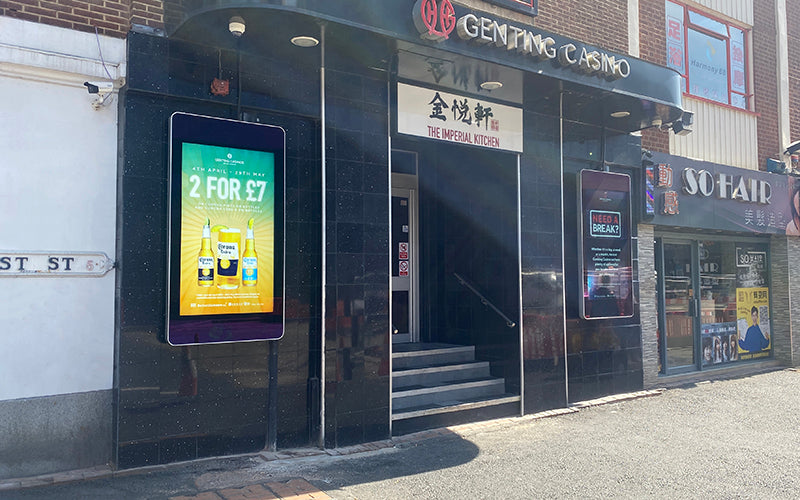

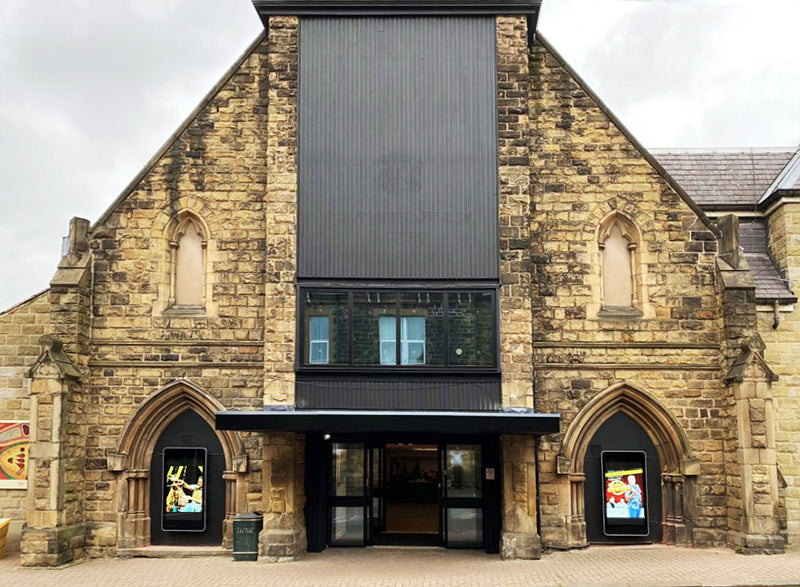

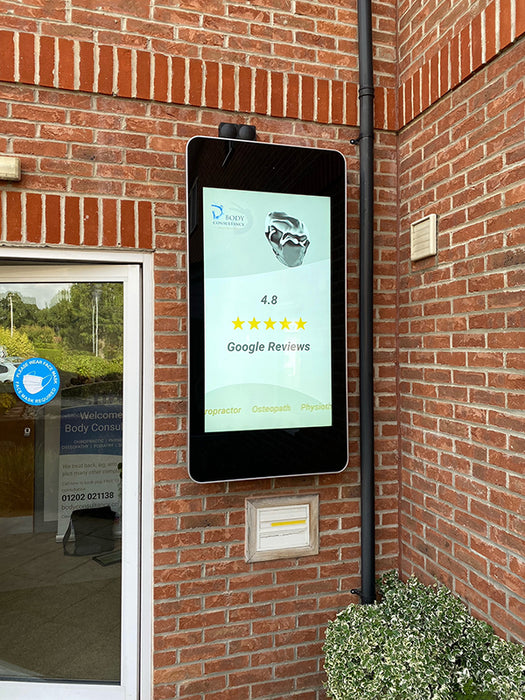

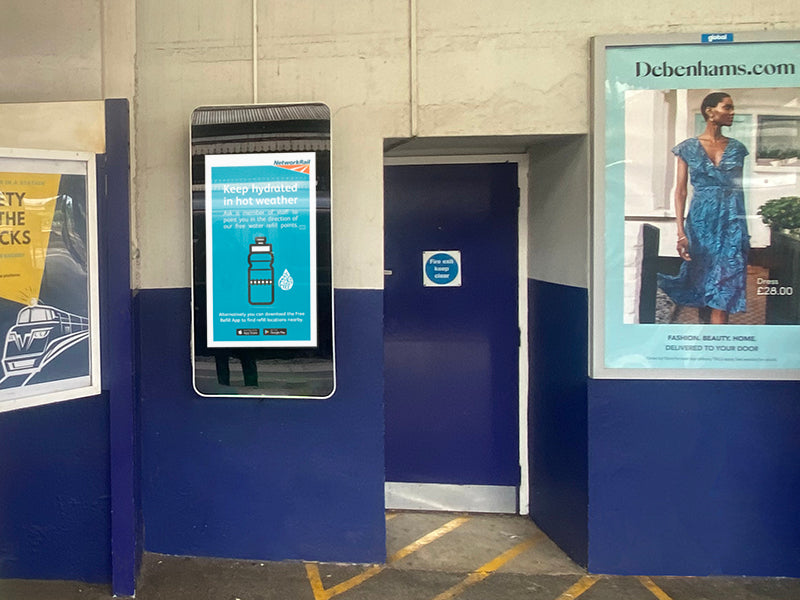

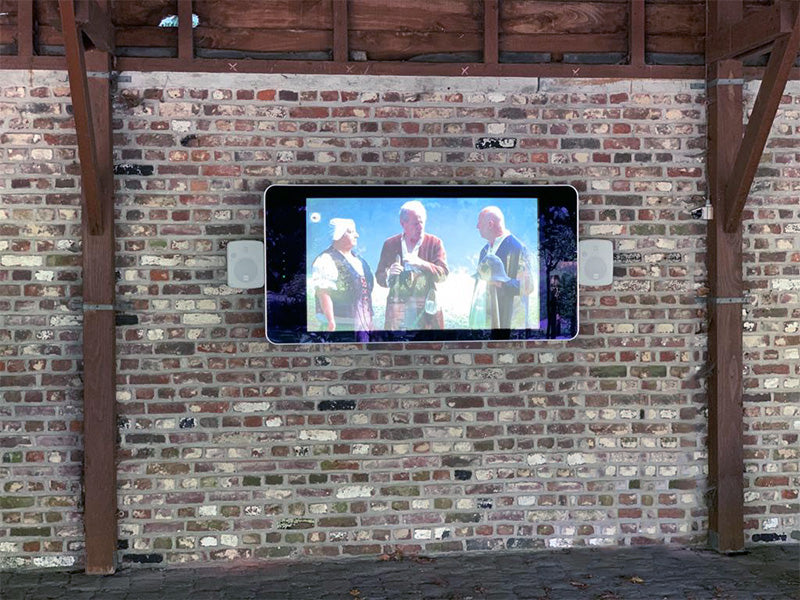

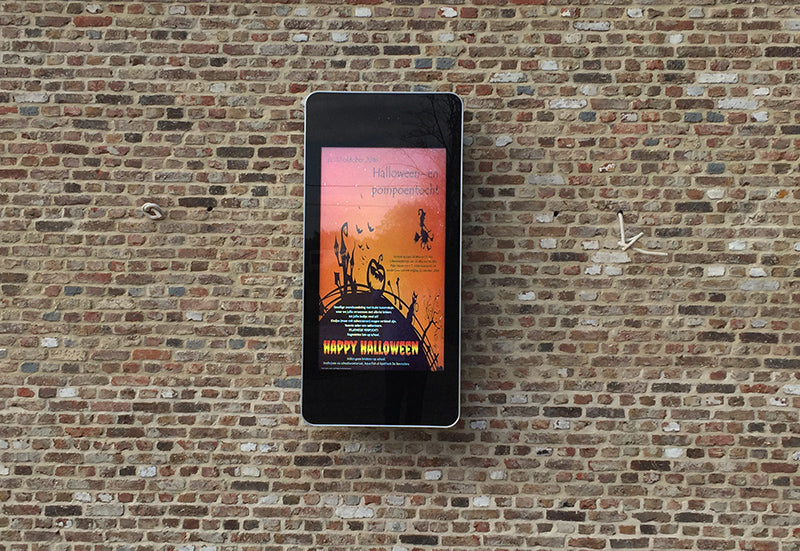

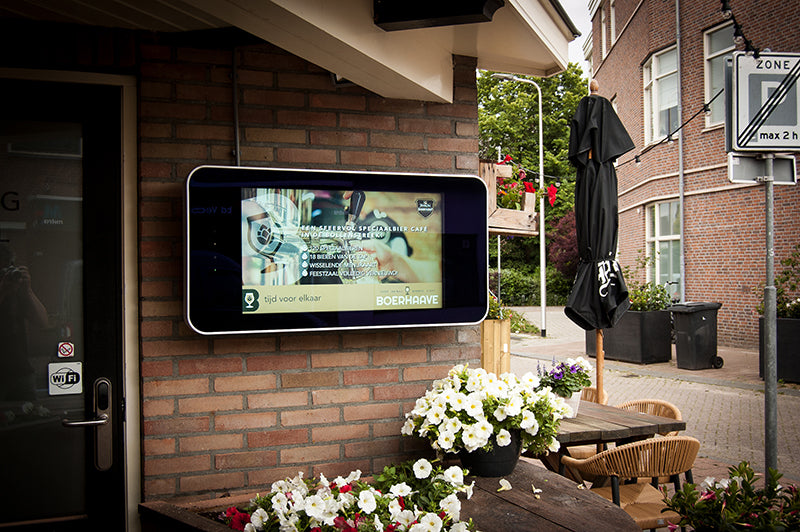

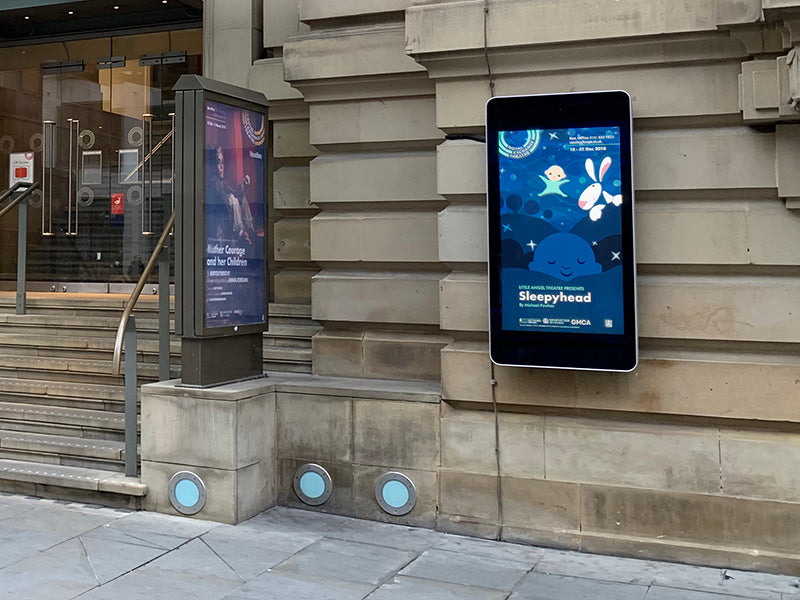

    To ensure that this is a complete turnkey solution, a lockable wall mount is included at no extra cost, allowing you to securely mount your screen in either landscape or portrait orientation.


    Customisation Available
    Bespoke displays can be manufactured to order should you require a non-standard solution, to incorporate a camera or touch screen upgrade for example. We can also modify existing models to add a 4G module for mobile connectivity or a vinyl logo/wrap.

  • Display Area (22") 477x270 Display Area (32") 702x396
    Display Area (43") 941x529 Display Area (49") 1073x603
    Display Area (55") 1215x686 Display Area (65") 1428.5x803.5
    Unit Size (22") 737x397x120 Unit Size (32") 1001x516x130
    Unit Size (43") 1410x670x140 Unit Size (49") 1500x746x140
    Unit Size (55") 1638x817x140 Unit Size (65") 1910x990x140
    Resolution (22"-43") 1920x1080 Resolution (49"-65") 3840x2160 / 3840x2610
    Brightness (22") 2,000 Brightness (32"-65") 2,500
    Colour (22"-32") 1.06B Colour (43"-65") 16.7M to 1.07B
    VESA Holes (22"-43") 250x250 to 400x400 VESA Holes (49"-65") Various sizes incl. 1300x400
    Net Weight (22"-32") 22kg / TBC Net Weight (43"-65") 65kg to 112kg
    Gross Weight (22"-32") 27kg / TBC Gross Weight (43"-65") 82.5kg to 165kg
    Power Consumption (22"-32") 130W / 134W Power Consumption (43"-65") 250W to 550W

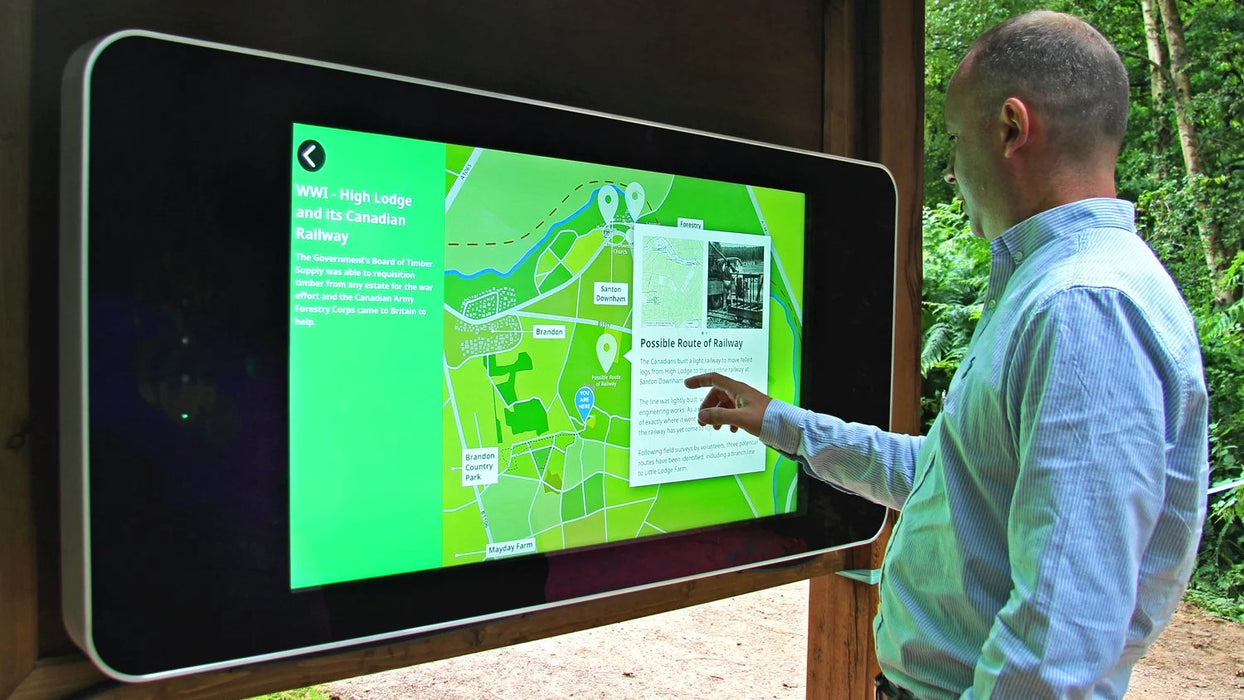

    Touch Screen PCAP Touch Points 10-point
    Operating System Android 7.1 / Android 10 CPU Cortex-A17 / RK3399
    RAM 4GB DDR3 Storage (ROM) 32GB
  • 22" Outdoor PCAP Touch Screen - Spec Sheet Downloads
    32" Outdoor PCAP Touch Screen - Spec Sheet Downloads
    43" Outdoor PCAP Touch Screen - Spec Sheet Downloads
    49" Outdoor PCAP Touch Screen - Spec Sheet Downloads
    55" Outdoor PCAP Touch Screen - Spec Sheet Downloads
    65" Outdoor PCAP Touch Screen - Spec Sheet Downloads
    22" Outdoor Advertising Display - Technical Drawing Downloads
    32" Outdoor Advertising Display - Technical Drawing Downloads
    43" Outdoor Advertising Display - Technical Drawing Downloads
    49" Outdoor Advertising Display - Technical Drawing Downloads
    55" Outdoor Advertising Display - Technical Drawing Downloads
    65" Outdoor Advertising Display - Landscape Technical Drawing Downloads
    65" Outdoor Advertising Display - Portrait Technical Drawing Downloads
    Outdoor Advertising Displays - User Manual Downloads
    Outdoor Advertising Display - Installation Guide Downloads
