Elevate the Traditional Digital Signage Experience with Next-Generation Audience Engagement

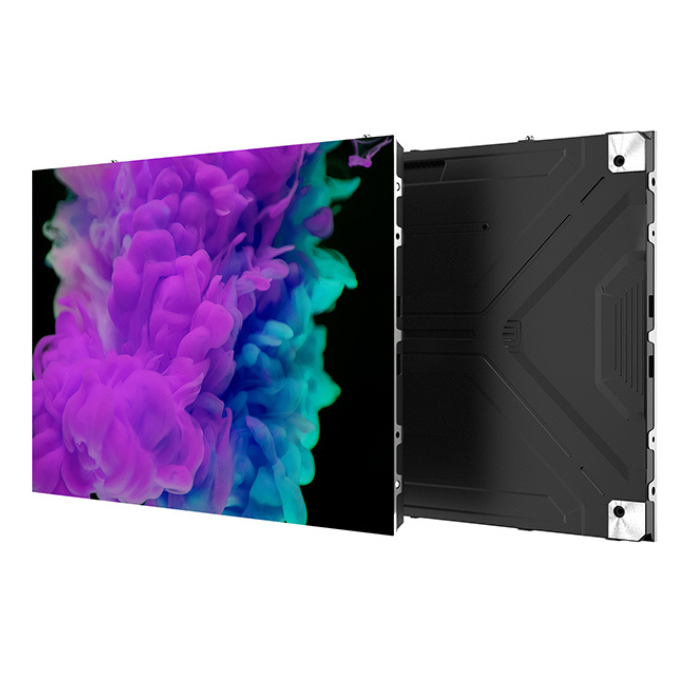

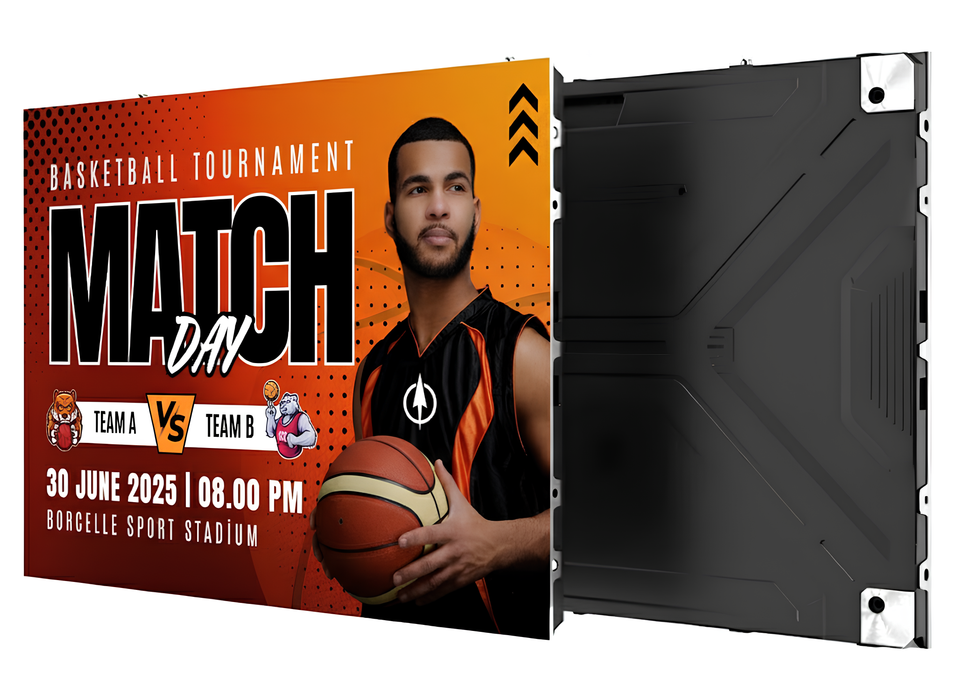

Indoor Direct View LED Solutions
Available in P1.8 and P2.5 pixel pitches (other models available on request)
Captivating Image Quality
State-of-the-art SMD Direct View LED technology and an ultra-high 6,500:1 contrast ratio guarantee that these video walls deliver stunning image quality. Experience vivid colours, true black and crystal clarity across the seamless display. Plus, advanced video processing technology ensures colours are accurate and lifelike without any distortion.
Complete Package Solution
This all-in-one package contains everything needed to get your display up and running, including the LED modules and mounting bracket. For larger DV-LED video walls an aluminium screen edge can also be made to order at no additional cost, protecting the display and improving the overall aesthetic.

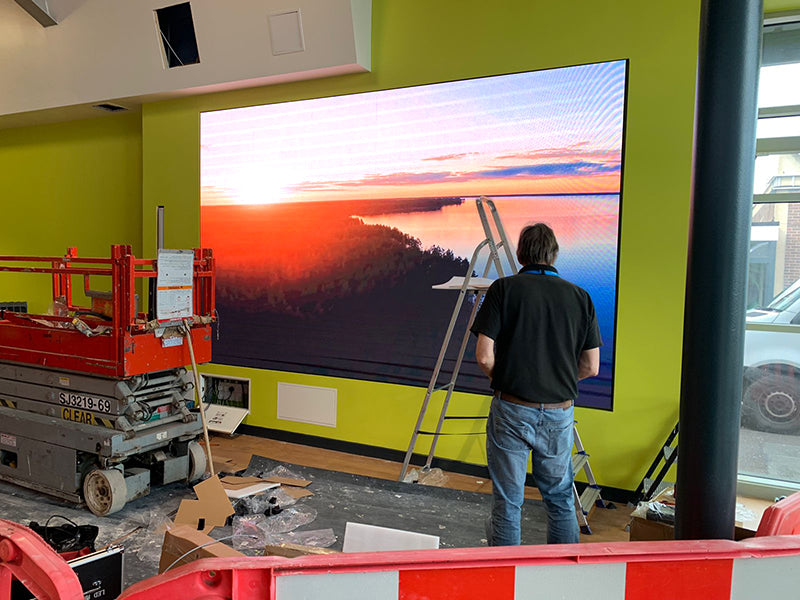

Easy Installation and Maintenance

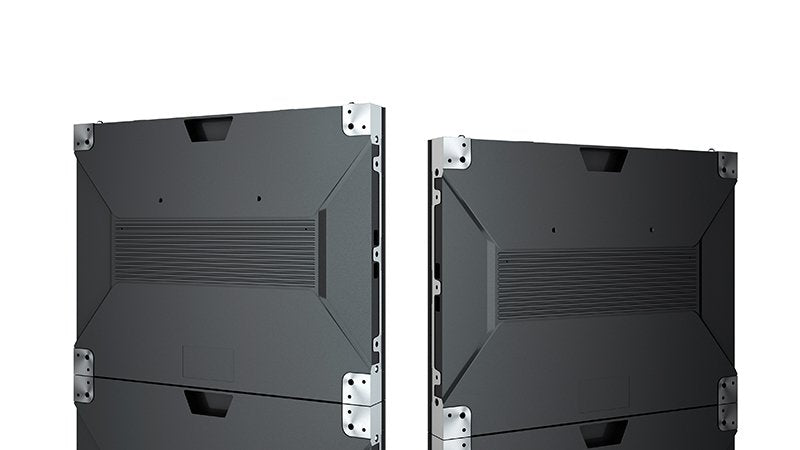

Due to their lightweight design, magnetic modules, positioning pins and simple cabinet structure, these displays are incredibly easy to install. After installation, they can be serviced from the front of the display by quickly and efficiently removing the DV-LED modules for ultimate ease of maintenance.
End-to-End Project Management
As every Direct View LED project is unique, they each come with their own challenges. We are here to advise and support you every step of the way. From designing bespoke displays to ensuring hassle-free installation and even providing maintenance, we can deliver full end-to-end project management where required.
Complete Quality Control
From production through to installation, our video walls undergo multiple rounds of strict quality control to ensure long-lasting reliability. In addition, quality calibration guarantees consistent image quality across the whole display.

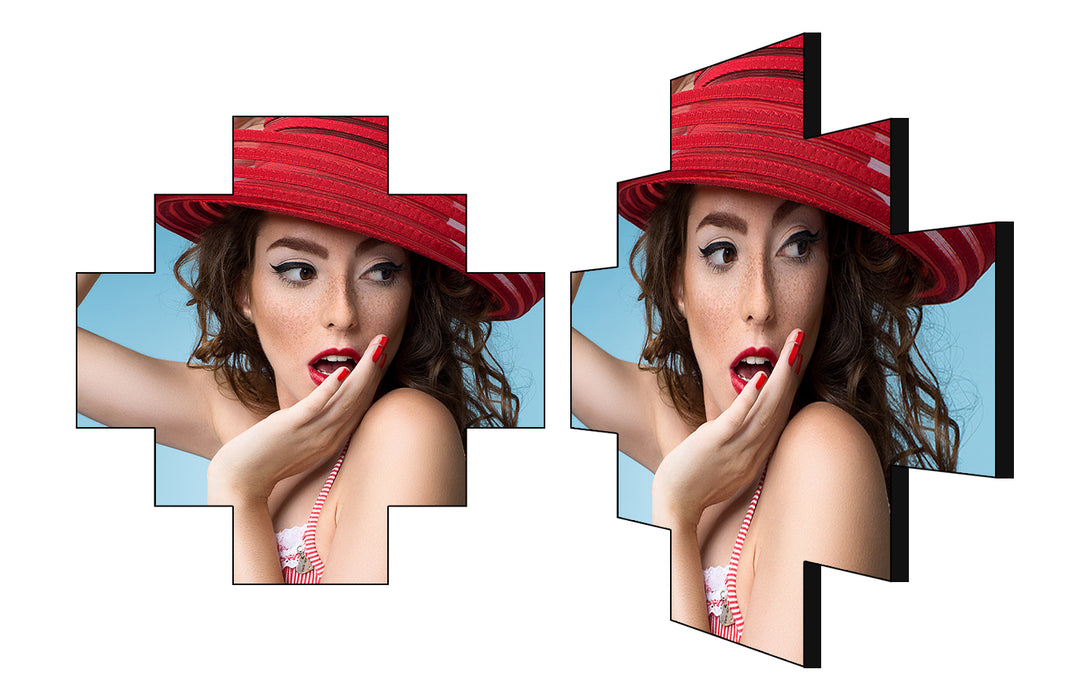

Modular Video Walls
Thanks to their modular design, these versatile displays are not constrained by standard aspect ratios. Stand out from the crowd by sculpting seamless large-scale video walls to fill spaces of any shape and size in any location. The unique cabinet size gives ultimate flexibility by ensuring a 16:9 aspect ratio is also possible.
UK Stock Held
Our fully-stocked UK warehouse means we can fulfil projects with a rapid turnaround time if required. From initial enquiry to finished installation, by holding extensive stock in the UK we can deliver results without long delays.
Feature | P1.8 | Feature | P2.5 |
---|---|---|---|
Pixel Pitch (mm) | 1.8 | Pixel Pitch (mm) | 2.5 |
Brightness (Calibrated) | 800cd/m² | Brightness (Calibrated) | 550cd/m² |
LED Type | SMD1515 | LED Type | SMD2121 |
Module Resolution (px) | 174x87 | Module Resolution (px) | 128x64 |
Cabinet Resolution (px) | 348x261 | Cabinet Resolution (px) | 256x192 |
Cabinet Size (mm) | 640x480x31.4 | Cabinet Size (mm) | 640x480x54.3 |
Net Weight (Kg) | 6.2 | Net Weight (Kg) | 6.8 |
Refresh Rate | 2880Hz | Refresh Rate | 3840Hz |
Cabinet Current | ≤0.45A | Cabinet Current | ≤0.45A |
Avg Power Consumption | 36W | Avg Power Consumption | 33W |
Max Power Consumption | 110W | Max Power Consumption | 99W |
Standby Consumption | 0.5W | Standby Consumption | 0.5W |
Contrast Ratio | 6,500:1 | Viewing Angle | 170° |
Processing | 12 bit | Frame Rate | 60 FPS |
Maintenance | Front service | Module Size (mm) | 320x160x14.5 |
Input Voltage | 240V AC | Lifetime | 100,000 hours |
Operating Temp. | -10ºC to +30ºC | Operating Humidity | 10% to 65% |
Indoor Direct View LED Solutions - Spec Sheet | Downloads |
P1.8 Indoor Direct View LED Cabinets - Technical Drawing | Downloads |
P2.5 Indoor Direct View LED Cabinets - Technical Drawing | Downloads |
Indoor DV-LED - Installation Guide | Downloads |
Indoor DV-LED - With Protective Edging - Installation Guide | Downloads |
Indoor DV-LED - 16:9 Aspect Ratio Guide | Downloads |
