Bespoke Outdoor Digital Signage Solutions Optimised for Crystal Clear Distant Viewing
Outdoor Direct View LED Solutions
Available in P4 and P6 pixel pitches (other models available on request)
Stunning Image Quality
State of the art SMD-LED technology that delivers remarkable image quality across the seamless display, certain to garner attention. With advanced video processing technology to produce accurate and vibrant colours with no distortion, offering remarkable viewing experiences.
Outstanding High Brightness
With impressive brightness levels, the DV-LED Video Wall has outstanding visibility. The display is sunlight readable even in direct sunlight, instantly catching attention from viewers and ensuring your content always stands out.
Weatherproof
Designed with a robust aluminium enclosure to protect the display from harsh weather conditions, the outer casing is also IP-rated, keeping out airborne swarf, dust and other particles.
Outdoor Reliability
This display includes a variety of features and services that were designed to maximise the lifespan of your displays, ensuring the high quality and consistency of our solutions.
High Refresh Rate
With a refresh rate more than three times higher than the industry standard, every image and video will come to life with astonishing clarity and precision, delivering a captivating visual experience with fluid transitions.
Easy Installation

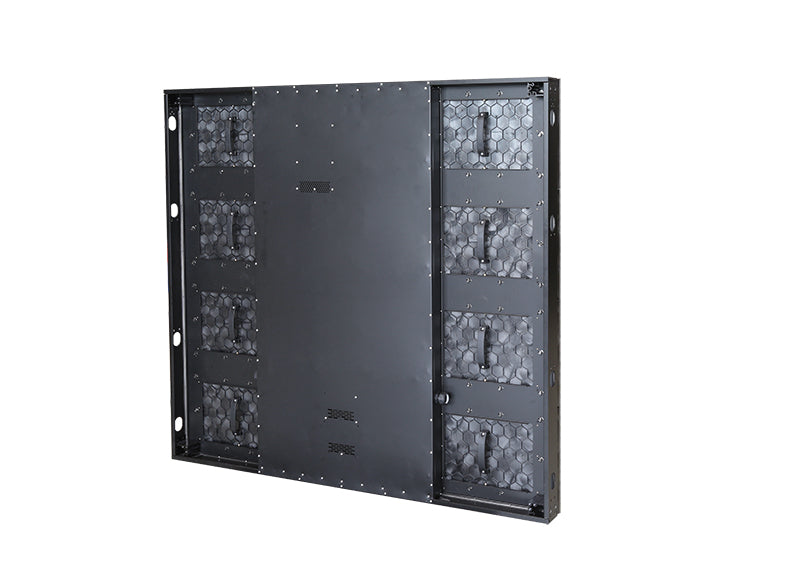

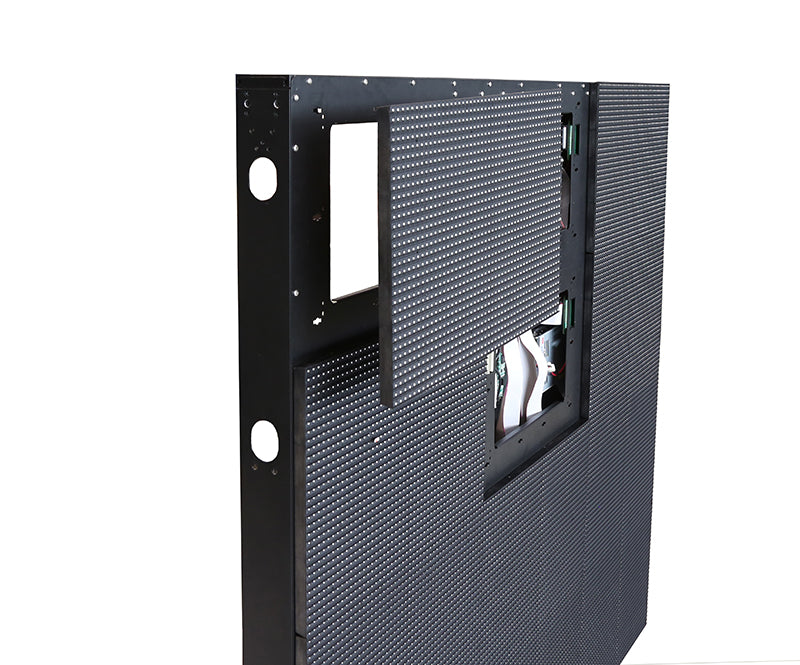

The light and compact design as well as magnetic modules, positioning pins and simple cabinet structure make this display ideal for either permanent installations or rental jobs.
End-to-End Project Management
We understand that every Direct View LED project is unique and each comes with their own set of challenges. In order to help our partners embrace this innovative technology, we are offering full end-to-end project management. From design to installation, our team is dedicated to assisting you every step of the way.
Bespoke displays can be developed to accommodate specific project requirements, installation of the Video Walls can be carried out or assisted by team members to ensure a hassle-free process, and maintenance can be provided when necessary. This all guarantees easy accessibility to the solutions for both you and your customers.
Model | P4 | Pixel Pitch (mm) | 4.0 |
LED Type | SMD 1921 | Brightness | 5,500 cd/m² |
Contrast Ratio | 10,000:1 | Module Resolution (px) | 120x80 |
Cabinet Resolution (px) | 240x240 | Avg Power (Per Cabinet) | 160W |
Max Power (Per Cabinet) | 450W | ||
Model | P6 | Pixel Pitch (mm) | 6.67 |
LED Type | SMD 2727 | Brightness | ≥8,000 cd/m² |
Contrast Ratio | 15,000:1 | Module Resolution (px) | 72x48 |
Cabinet Resolution (px) | 144x144 | Avg Power (Per Cabinet) | 193W |
Max Power (Per Cabinet) | 580W | ||
Pixel Configuration | 1R1G1B | Refresh Rate | 3840Hz |
Viewing Angle - H | 140° | Viewing Angle - V | 120° |
Processing | 20 bit | Frame Rate | 60 fps |
Maintenance | Front or Rear Access | Module Size (mm) | 480x320 |
Cabinet Size (mm) | 960x960x68 | Net Weight (Kg) | 20.5 |
Input Voltage | AC220/110 ±10%, 47~63Hz | Front IP Rating | IP65 |
Rear IP Rating | IP65 | Operating Temp | -20ºC to +50ºC |
Operating Humidity | 10% to 95% | Lifetime | 100,000 hours |
Outdoor Video Wall - Spec Sheet | Download |
Outdoor Video Wall Cabinet - P4 & P6 Technical Drawing | Download |
Outdoor DV-LED - Installation Guide | Download |
