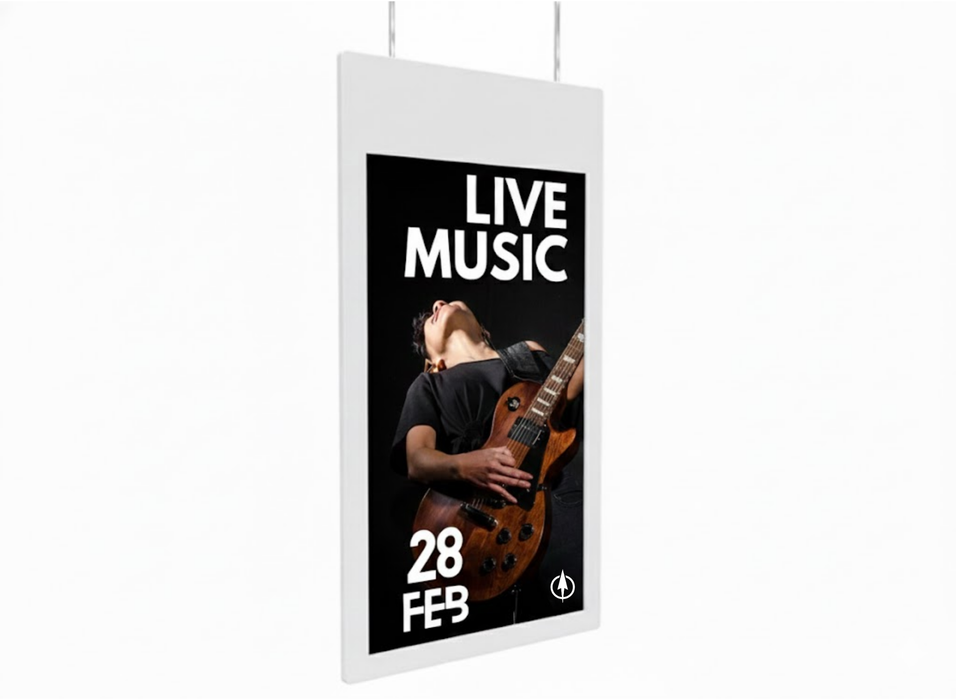

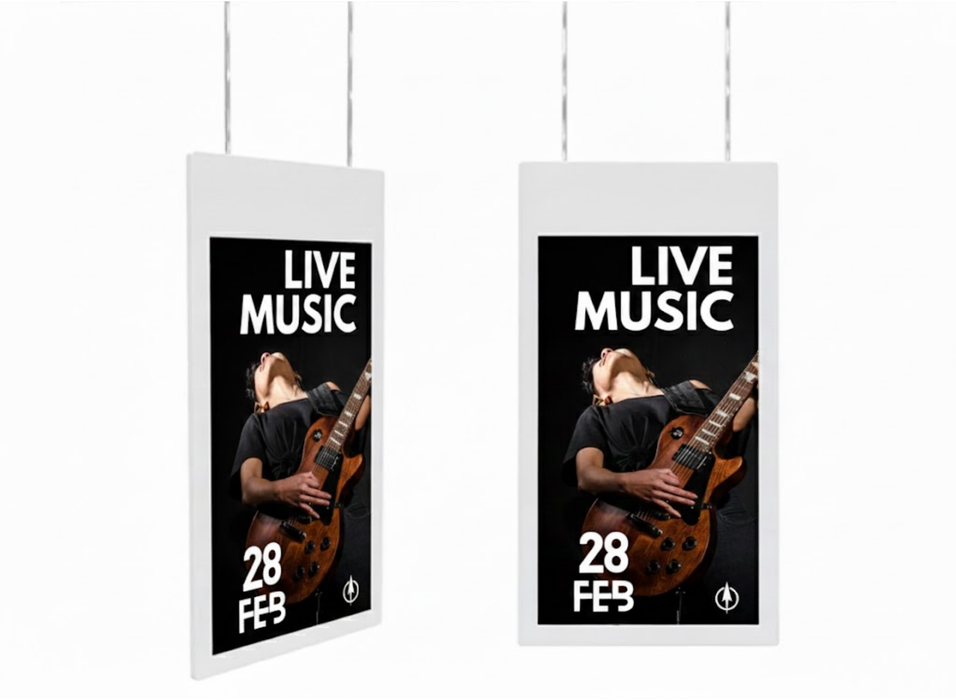

Super-Slim Dual Sided Display for Windows with Integrated Ceiling Mounting
Hanging Double-Sided
Window Displays
(43" & 55")
Maximise window displays by broadcasting content inwards and outwards

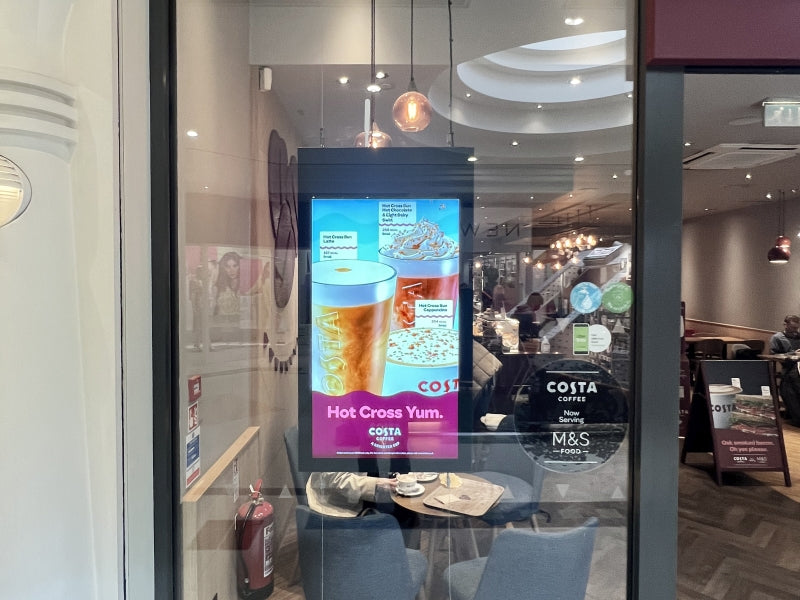

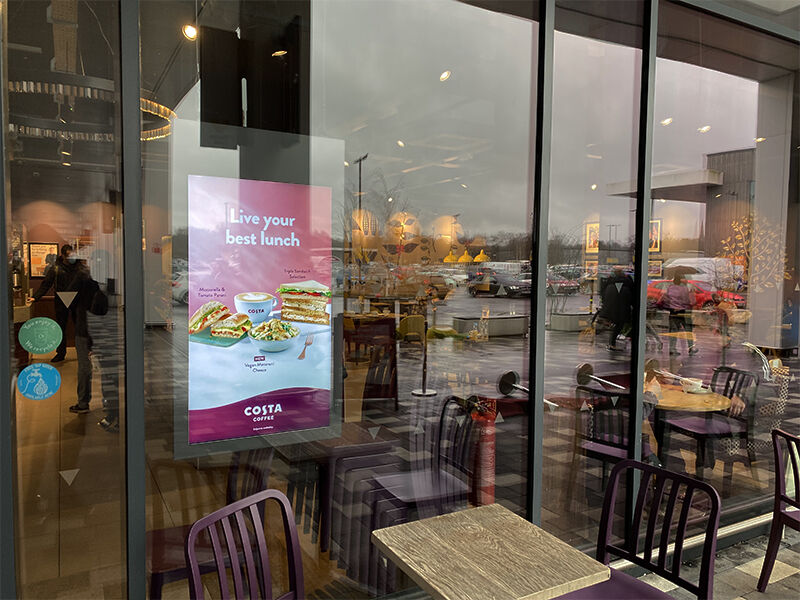

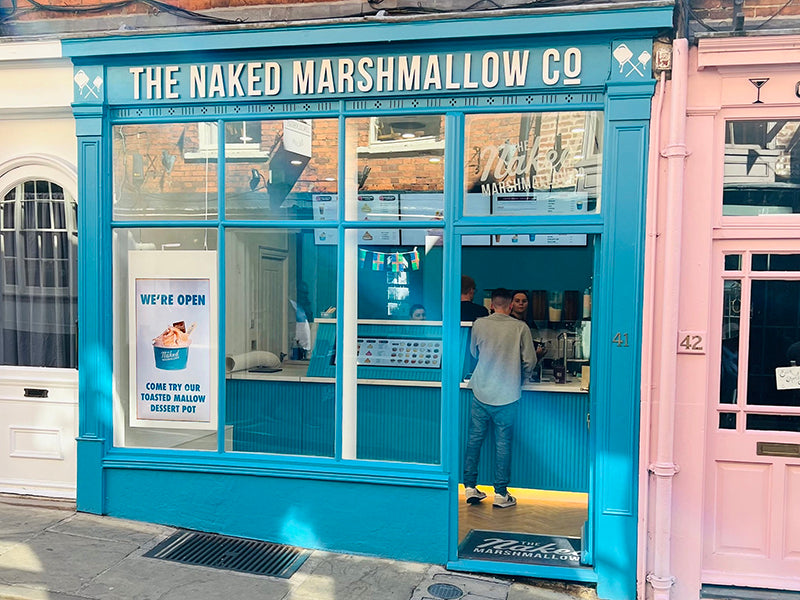

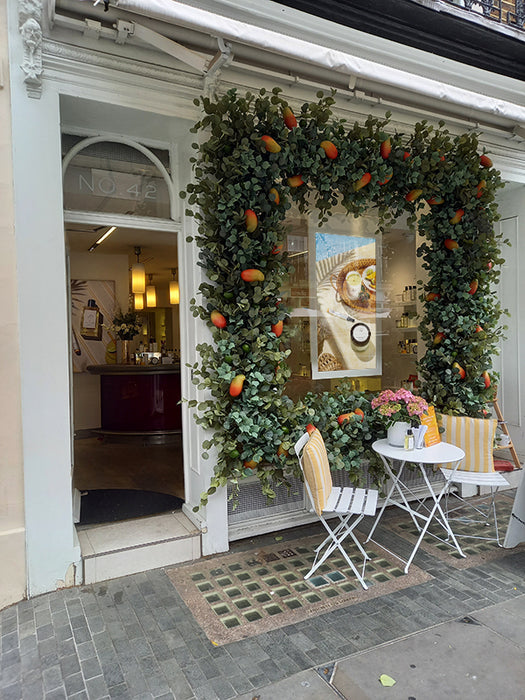

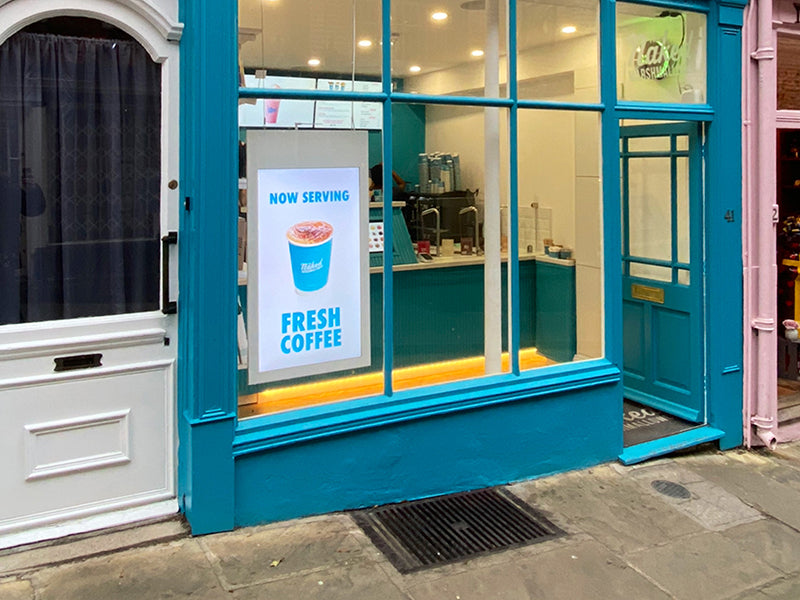

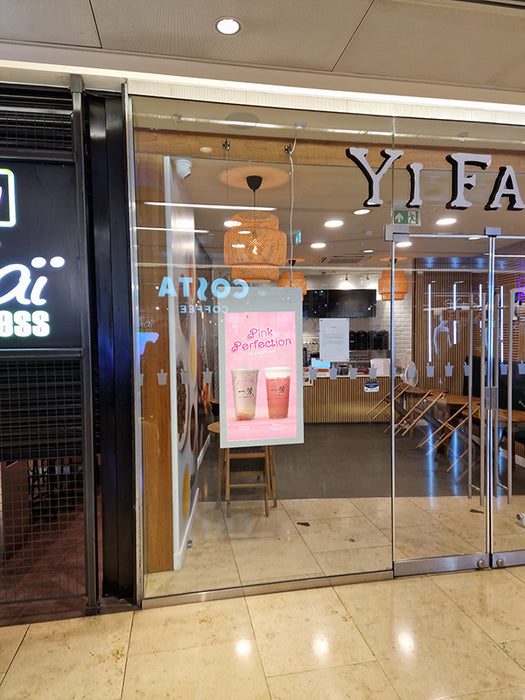

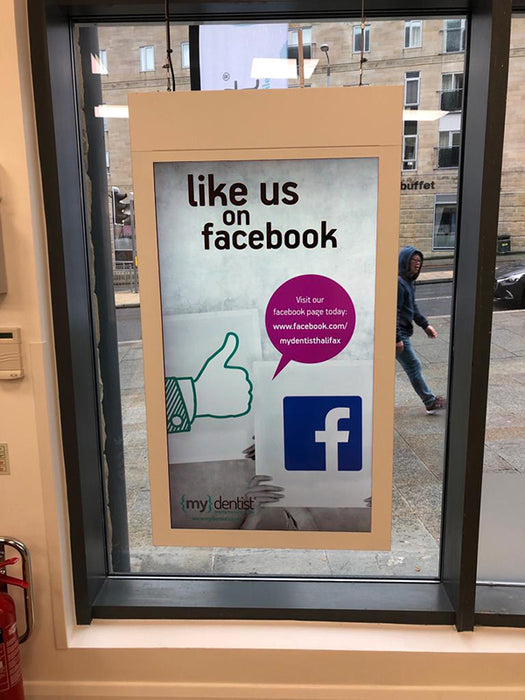

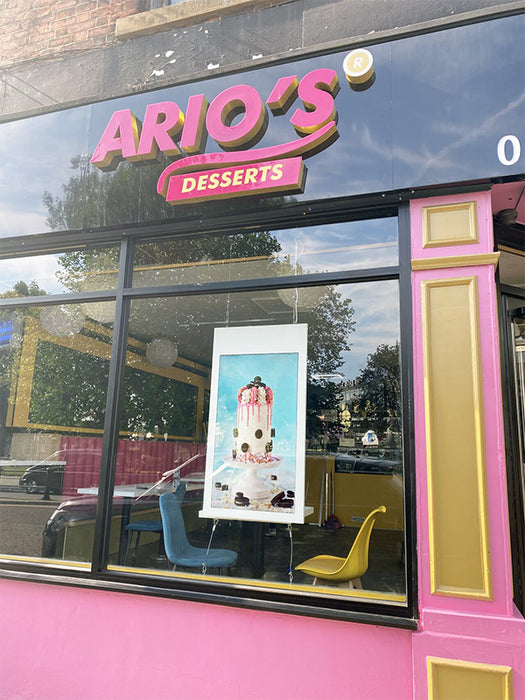

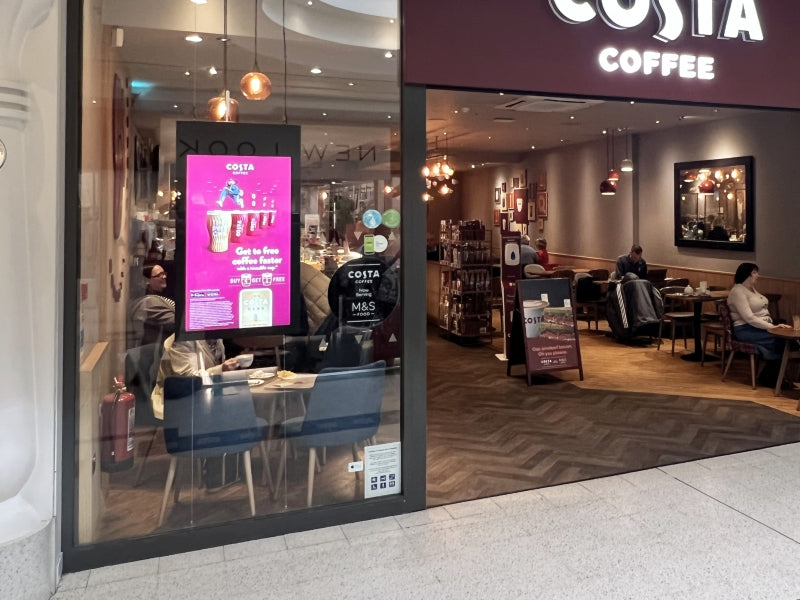

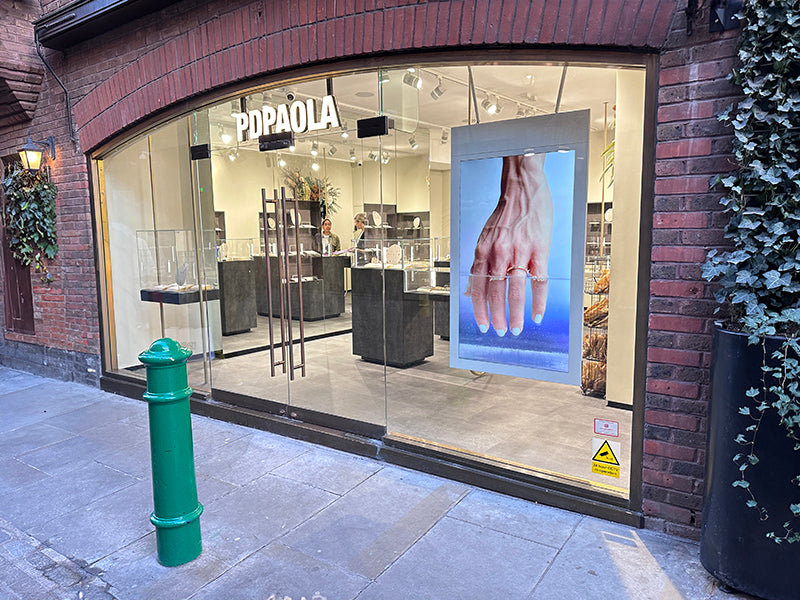

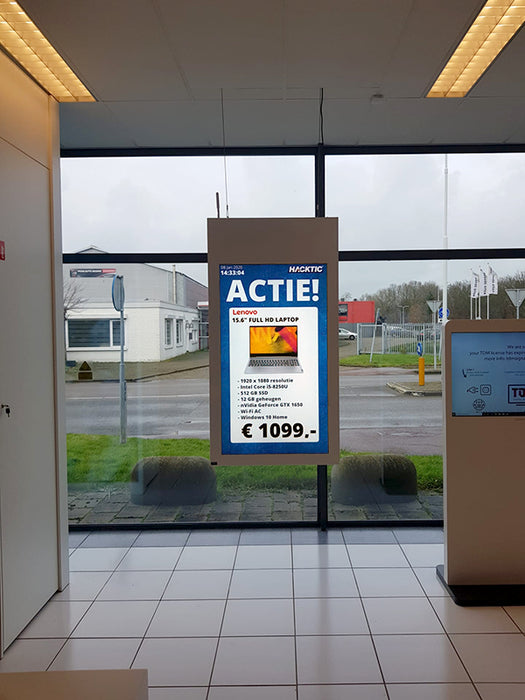

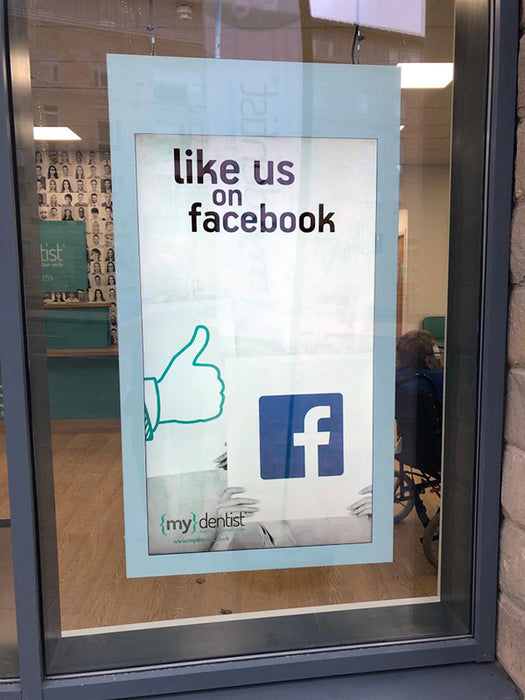

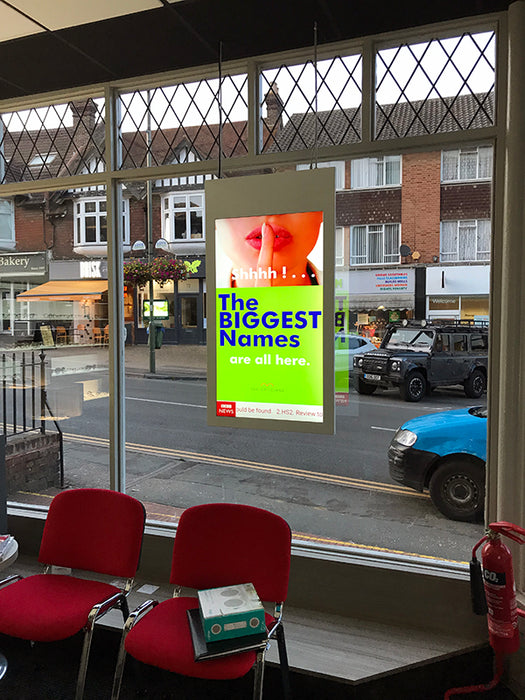

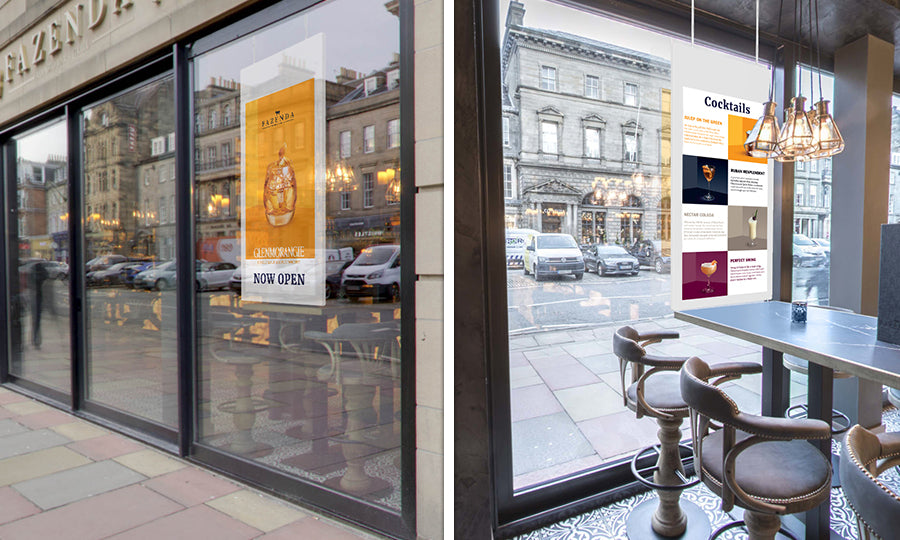

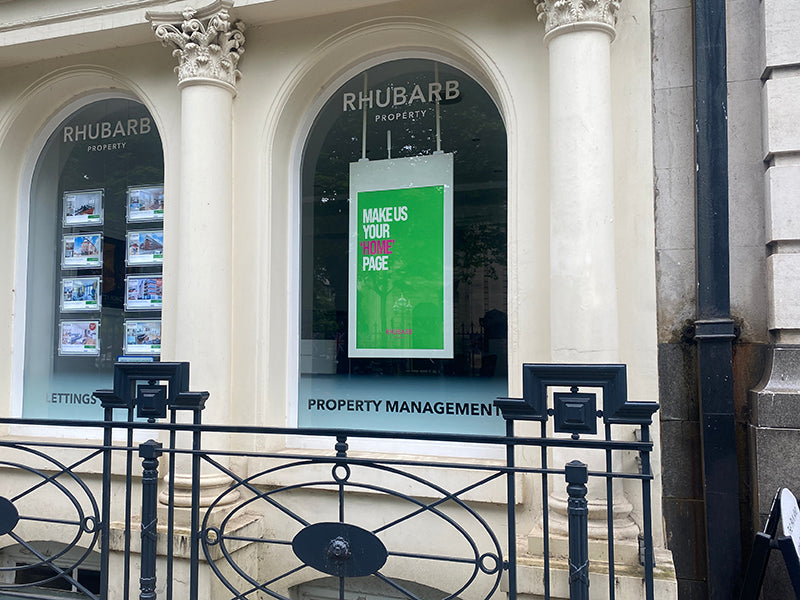

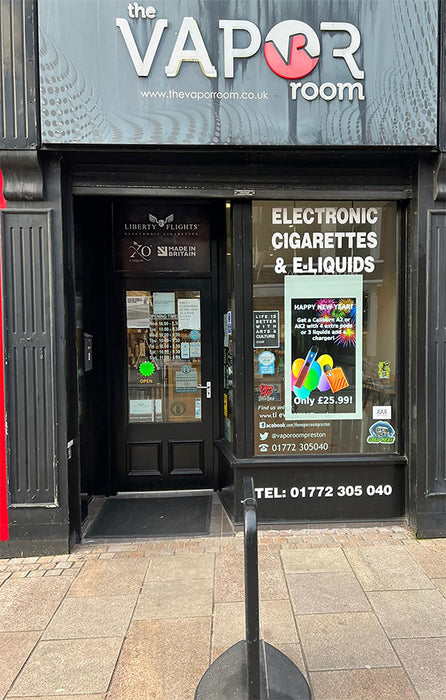

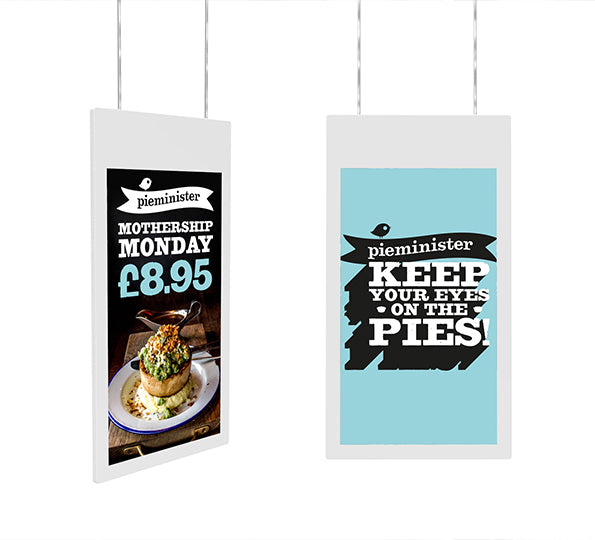

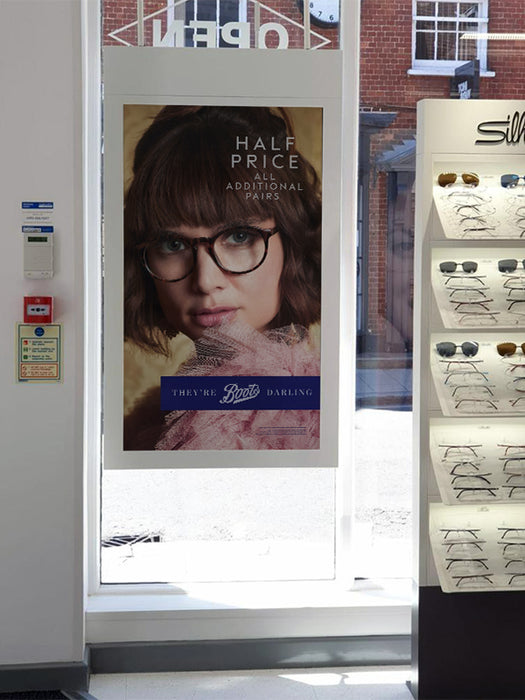

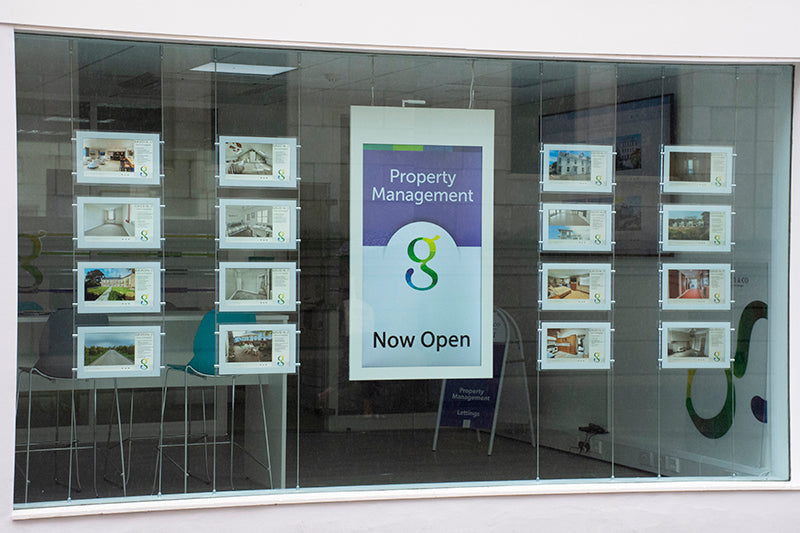

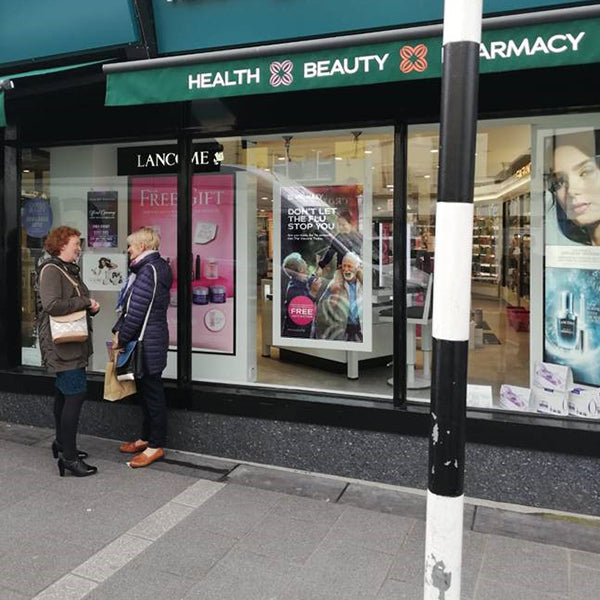

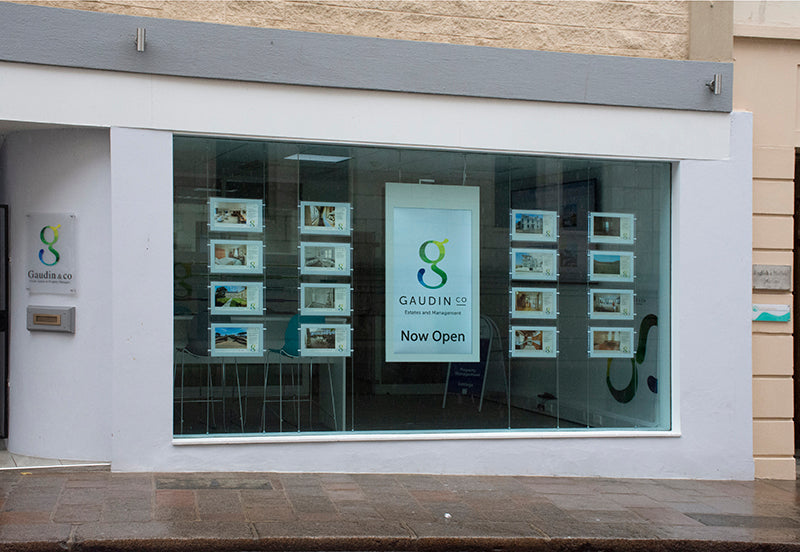

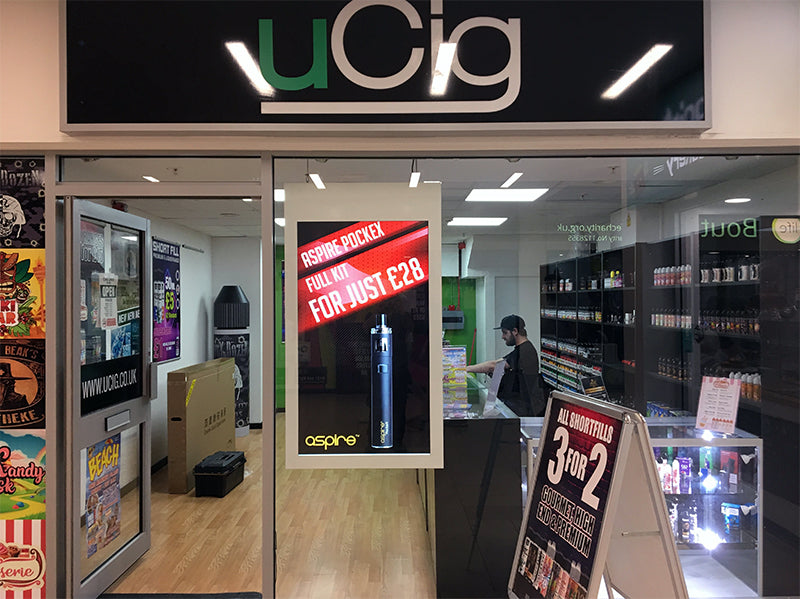

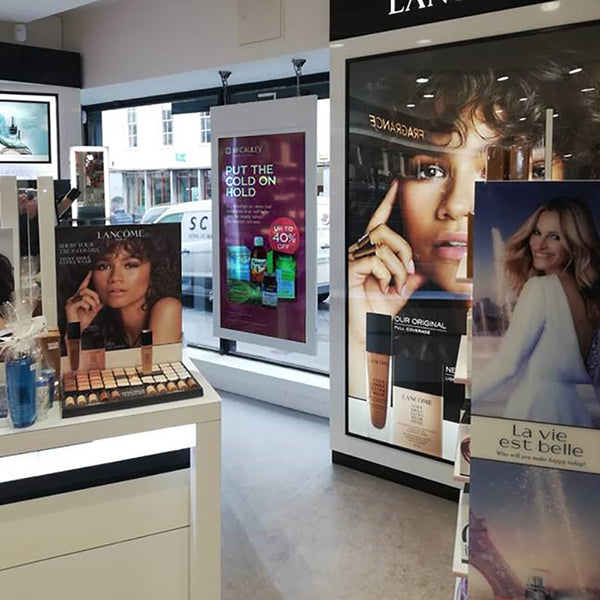

Double Sided Window Display

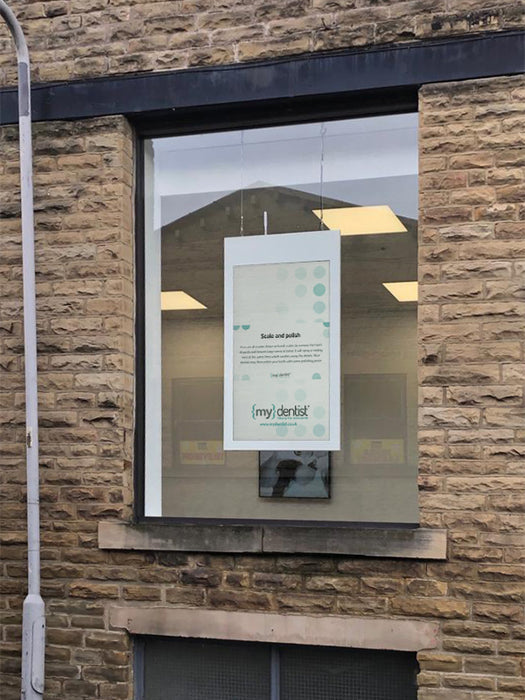

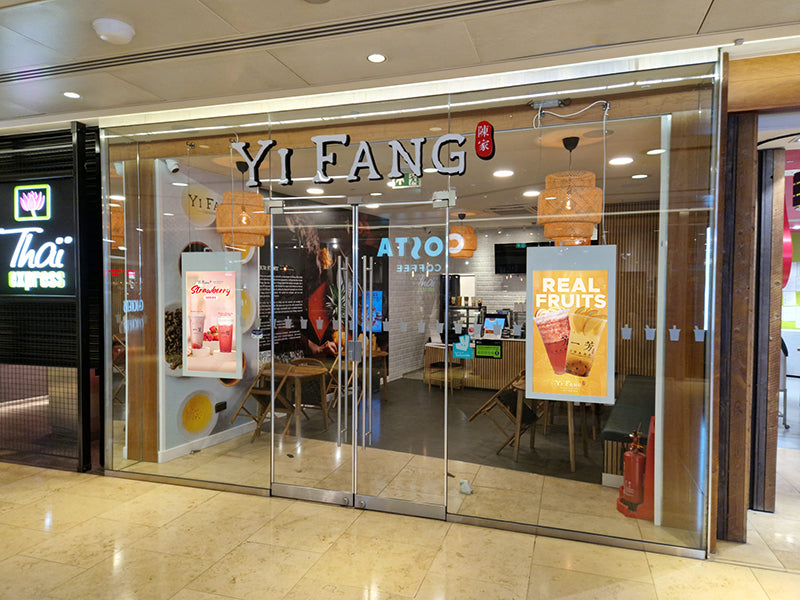

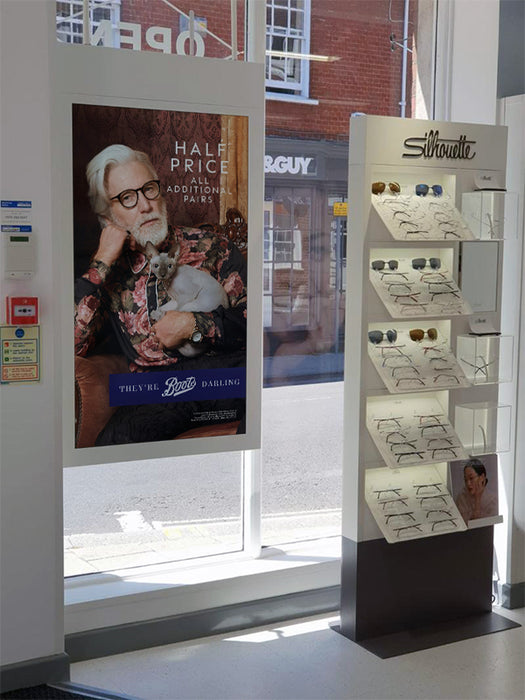

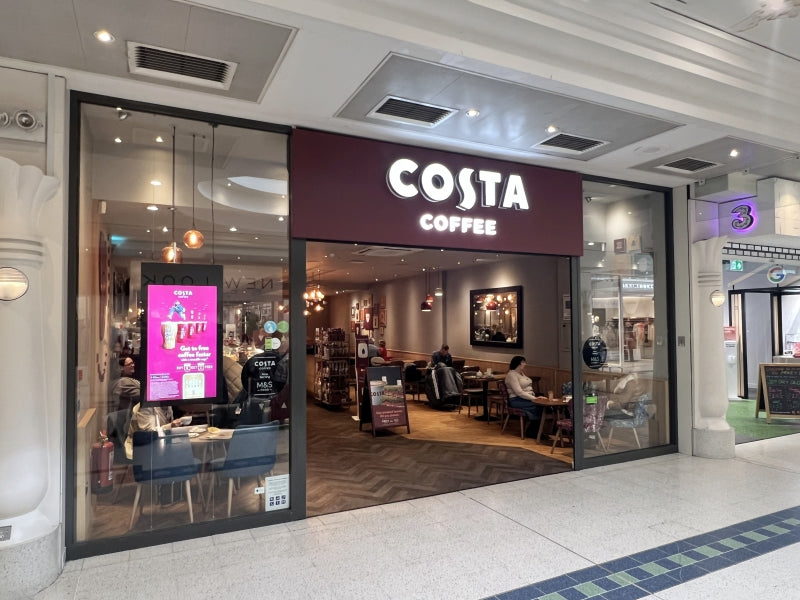

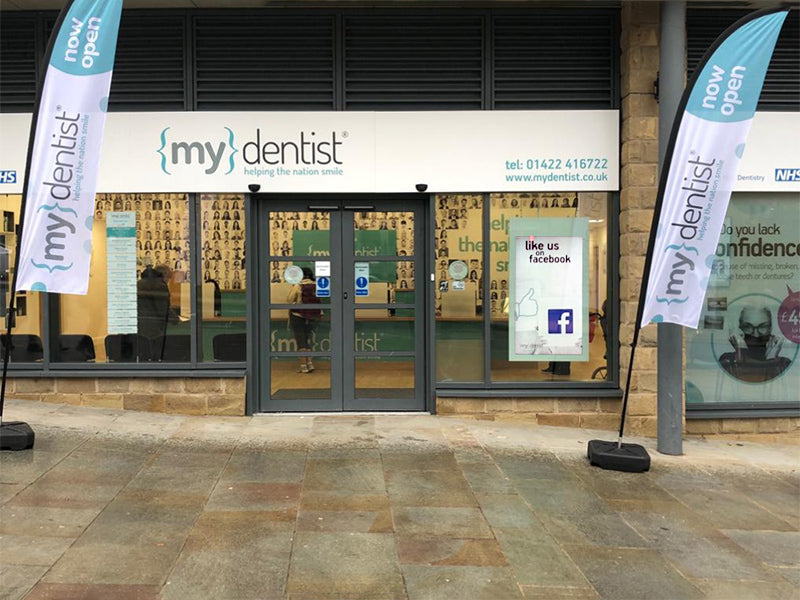

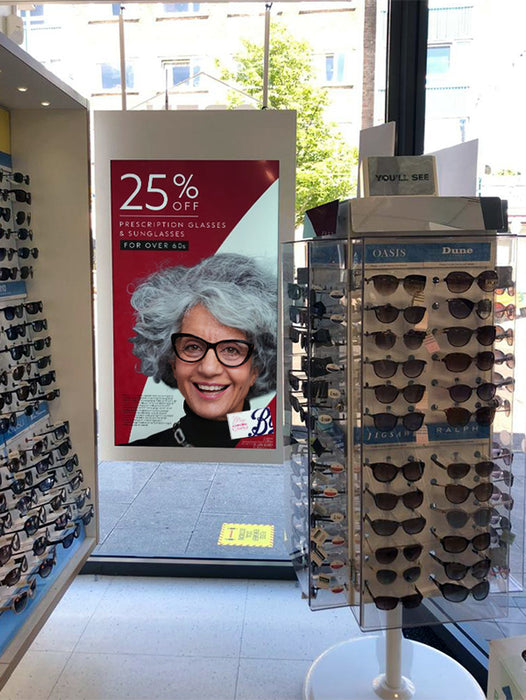

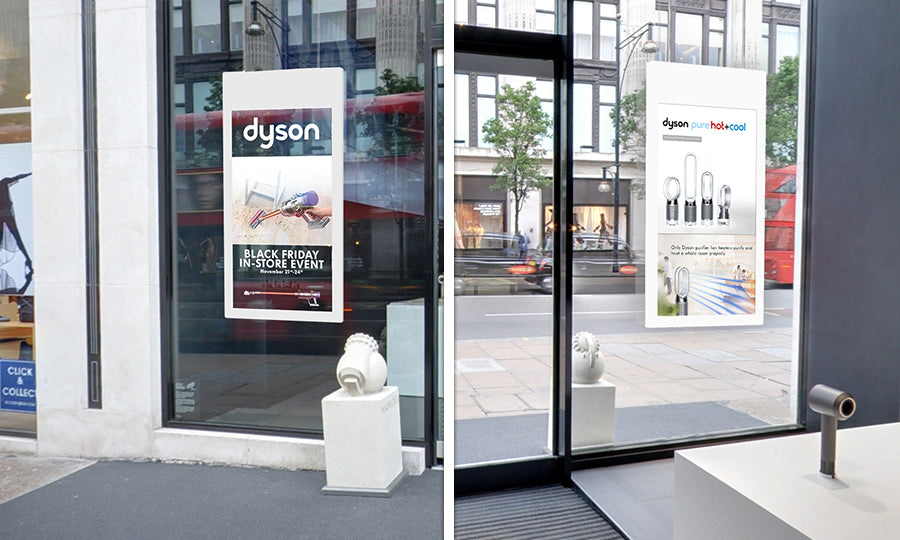

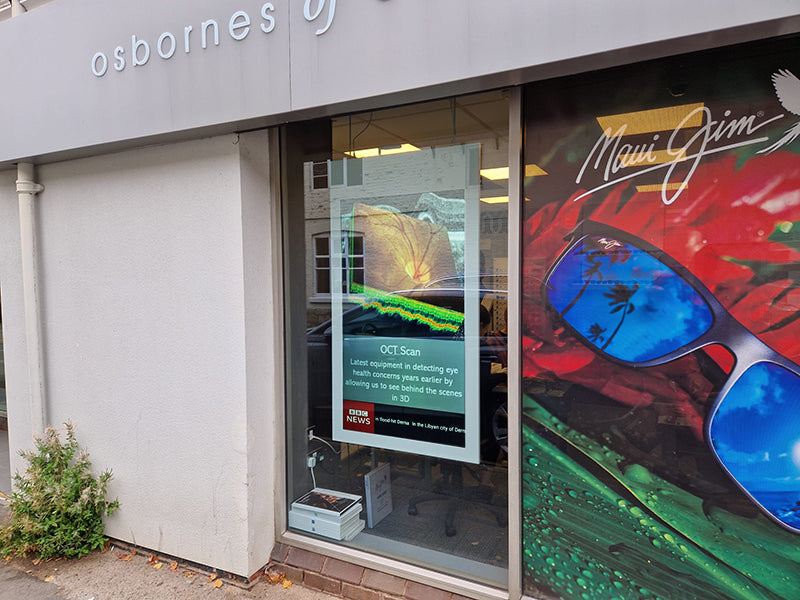

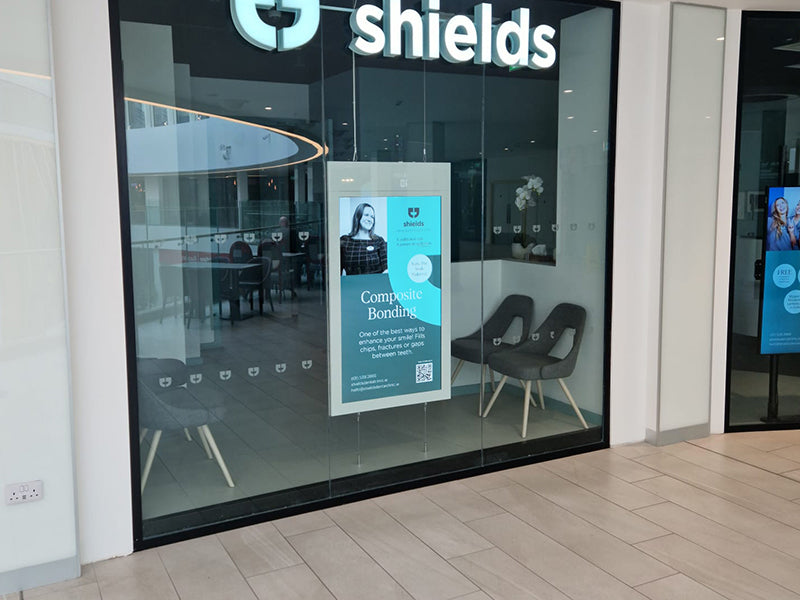

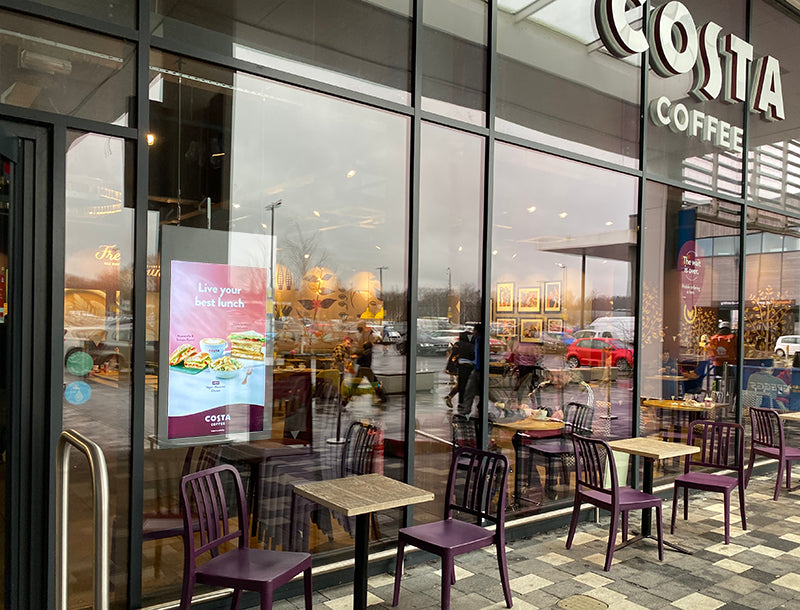

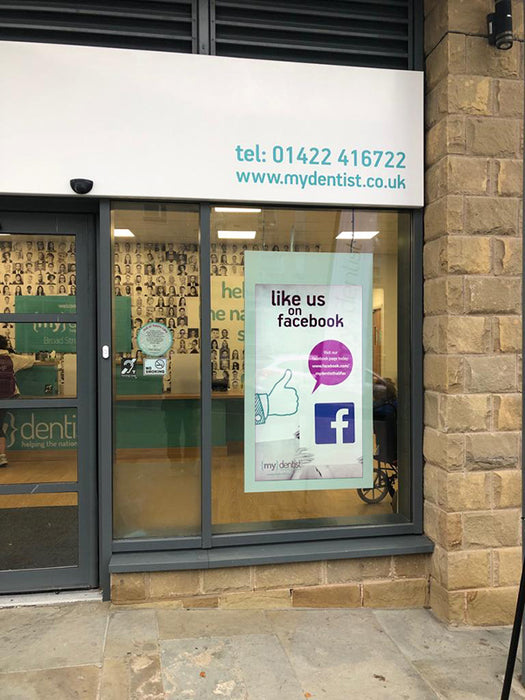

Grab the attention of onlookers with the outward facing, sunlight readable screen. Once your customers are inside the building you can then use the inward facing display to reinforce your message further.
Window Displays (700cd/m²)
Brightness is paramount when using outward facing screens, these displays use commercial grade high brightness panels (700cd/m²); more than twice the brightness of a standard home TV to allow easy readability in window displays.
Plug and Play
The Double Sided Hanging Displays come with a built in HD Android media player, allowing you to update them using a USB memory stick. Load your pictures and videos onto a USB memory stick then insert it into the display, which will copy the files into its internal flash memory. Once you remove the memory stick the screen will then start playing the pictures and videos in a continuous loop.
Optional Network Upgrade
For a small charge you can also upgrade your screen to be networked, allowing you to remotely update your screen via LAN, WiFi or 4G. To find out more about our Digital Signage

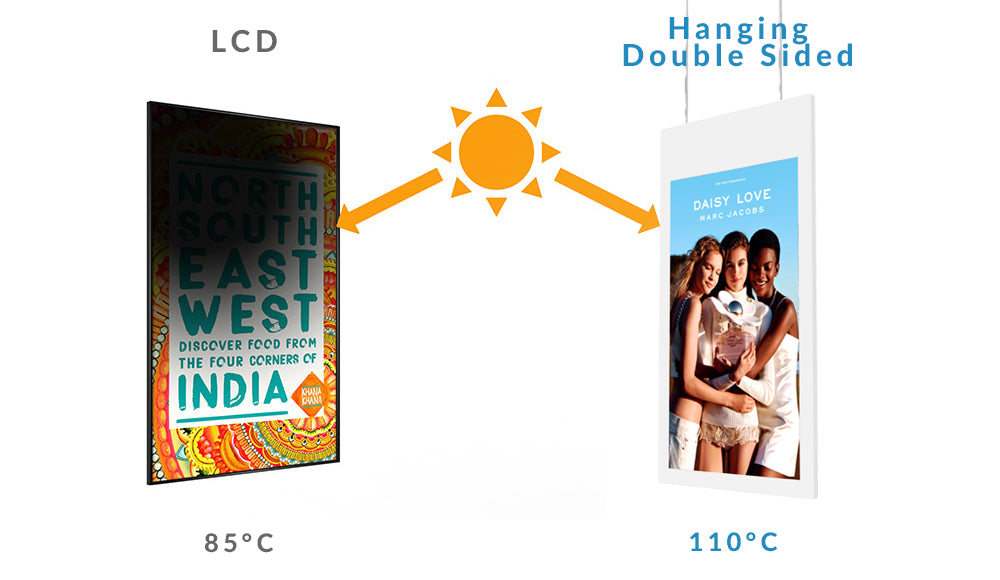

Ultra Resistant to Blackening
When dealing with direct sunlight most LCD panels will overheat and the blackening on the panel will occur, we use a special ultra-high brightness panel that can withstand surface temperatures up to 110˚C with no blackening defect occurring making this the number one choice for Digital Signage in window displays.

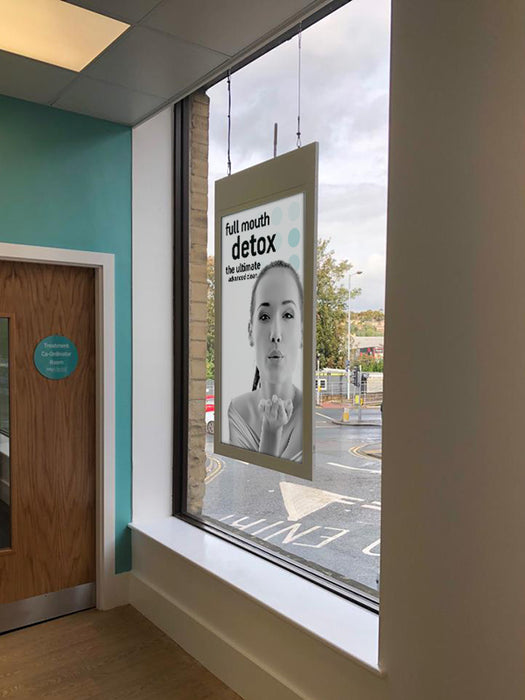

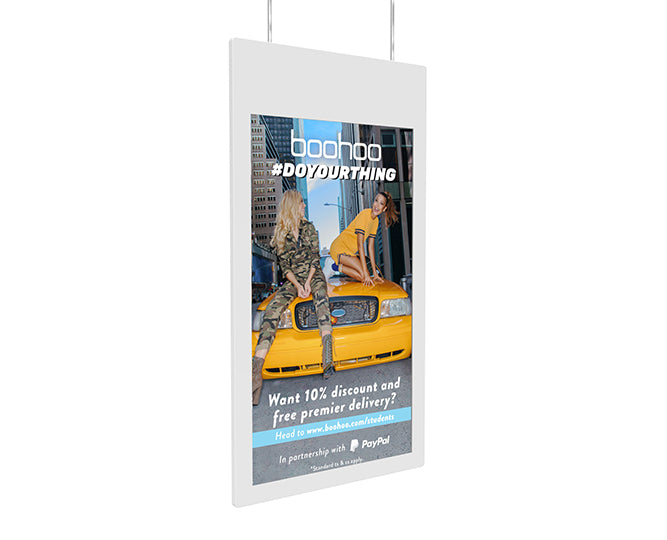

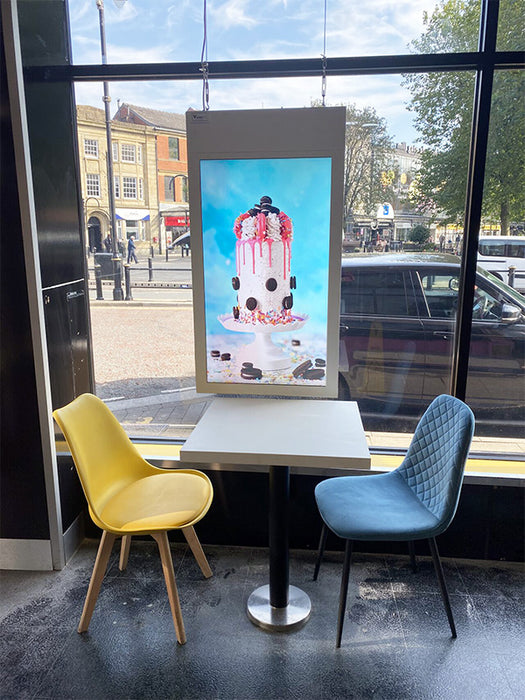

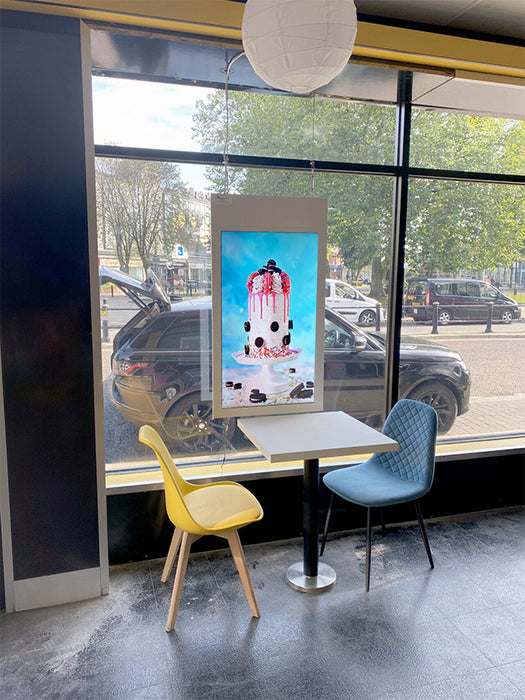

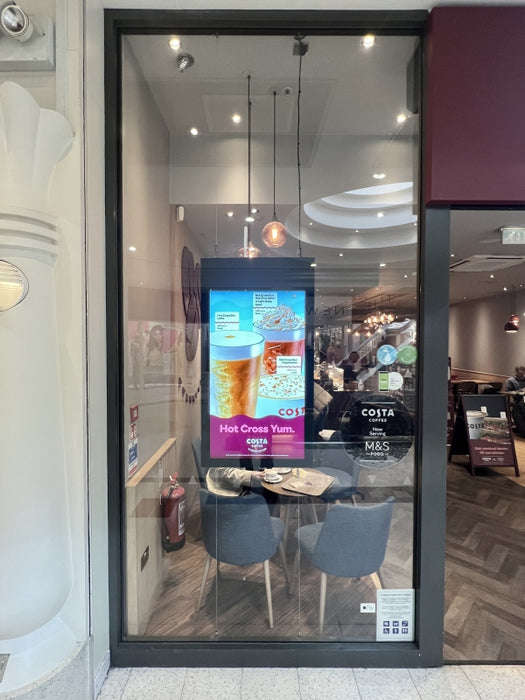

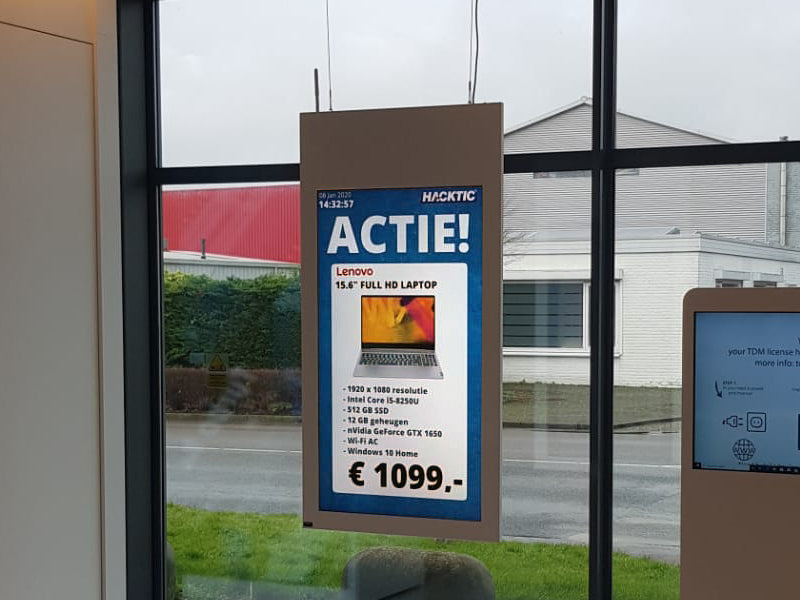

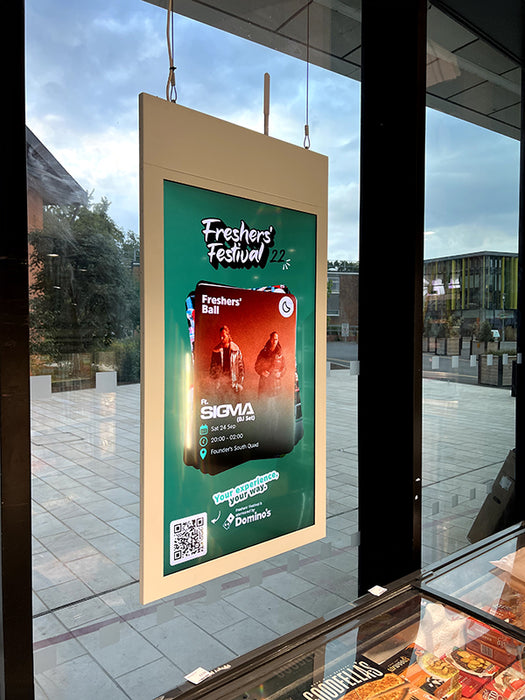

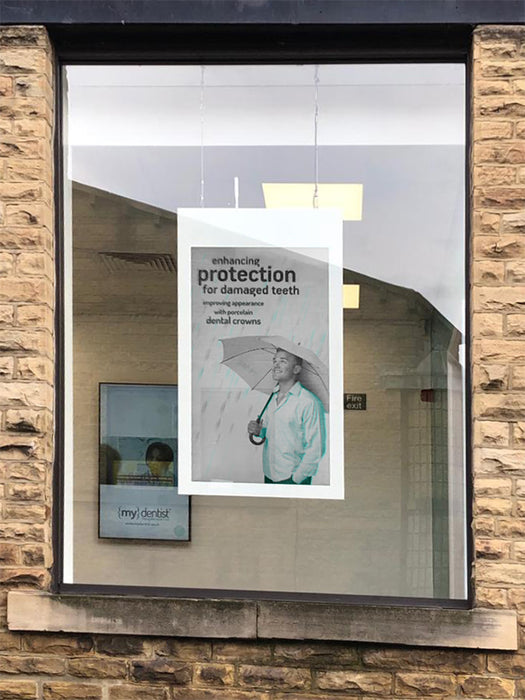

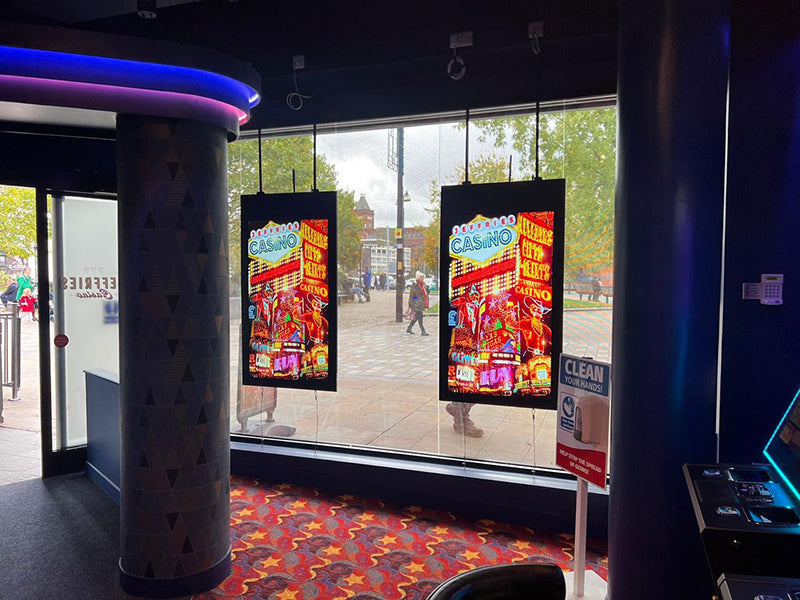

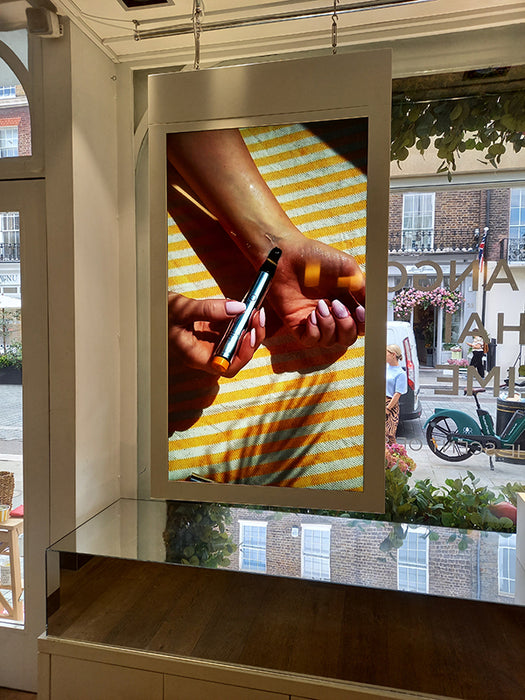

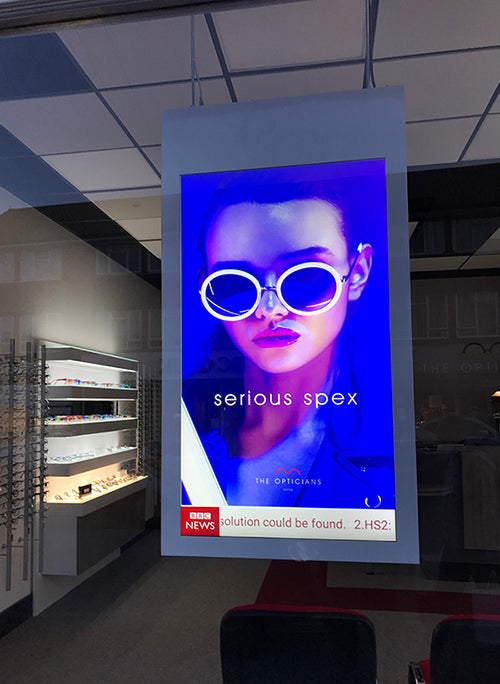

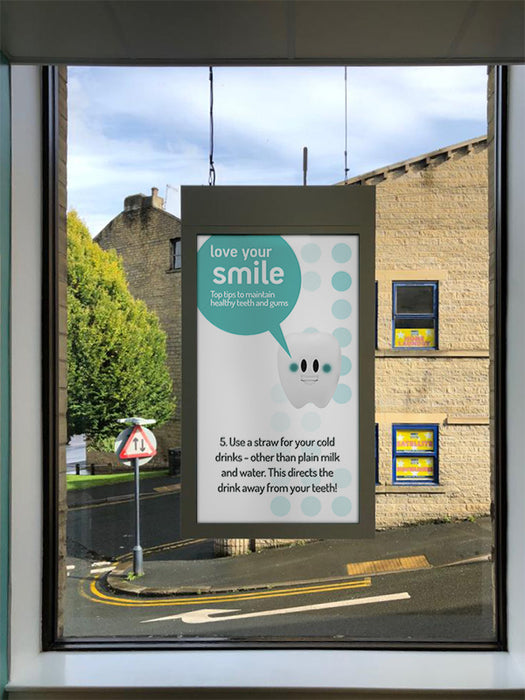

Integrated Ceiling Mount
The screen comes with an integrated wire hanging mounting solution so no additional ceiling mount is required. You can even hide unsightly power and data cables in the cover tubes provided.

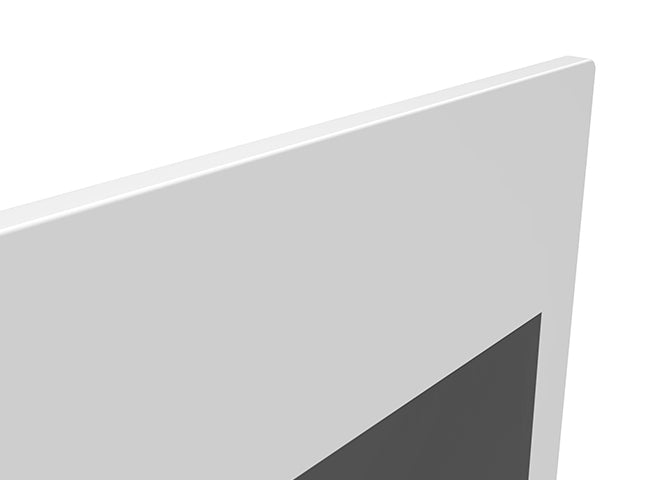

Super Slim Design
Even though these displays feature two separate screens they have a profile thinner than most single-sided displays. They have a remarkable depth of just 21.6mm, allowing for stylish and modern window displays.
Commercial Grade Panel and Components
Fitted with a commercial grade panel, with a lifespan of 70,000 hours, and using high quality components ensures that the high brightness monitor displays can be in constant use 24/7.
Built-in Speakers
The Hanging Double-Sided Window Displays displays have two integrated slimline speakers for applications that involve an audio element.
Power Timer
The eco-friendly power timer allows you to assign daily or weekly on and off times for your screen. The ability to power on and off automatically means that the screen is only in use when it needs to be; improving your environmental efficiency.
Feature | 43" - HDS43HD8 | Feature | 55" - HDS55HD8-B |
---|---|---|---|
Display Area | 943.2x531.4 | Display Area | 1209.6x680.4 |
Unit Size (mm) | 1178.3x634.6x21.6 | Unit Size (mm) | 1479.4x817.2x21.6 |
Package Size (mm) | 1300x750x160 | Package Size (mm) | 1600x935x160 |
Net Weight (kg) | 16.9 | Net Weight (kg) | 26.6 |
Gross Weight (kg) | 22.5 | Gross Weight (kg) | 34 |
Power Consumption (w) | 150 | Power Consumption (w) | 220 |
Resolution | 1920x1080 | Aspect Ratio | 16:9 |
Viewing Angle | 178° | Contrast Ratio | 1200:1 |
Colour | 16.7M | Blackening Defect Free | Up to 110°C (230°F) |
Brightness (cd/m²) | 700 | Video Inputs | HDMI, VGA |
Audio Input | 3.5mm Socket | Speaker | 2W, 5Ω (x2) |
Operating Temp. | 0°C to 40°C | Storage Temp. | -20°C to 60°C |
Operating Humidity | 10% - 90% | Storage Humidity | 0% - 95% |
Media Formats | Video, Audio, Image | Media Resolution | 1920x1080 / 1080x1920 |
CPU | Quad-Core ARM Cortex A17 | GPU | Quad-Core ARM Mali-T764 |
RAM | 2GB DDR3 | Internal Storage | 8GB eMMC |
USB Ports | 1 x OTG/HOST, 1 x HOST | LAN | 100M/1000M (Network Only) |
Wi-Fi | 802.11b/g/n/ac | Bluetooth | Bluetooth 4.0 |
OS | Android 7.1 | Graphic Engine | OpenGL ES, OpenCL, D3D 11.1 |
Included Accessories | Installation Kit, Scheduling Software, Remote Control, User Manual | ||
Optional Accessories | Network Upgrade |
43" Hanging Double-Sided Window Display - Spec Sheet | Download |
55" Hanging Double-Sided Window Display - Spec Sheet | Download |
43" Hanging Double-Sided Window Display - Technical Drawing | Download |
55" Hanging Double-Sided Window Display - Technical Drawing | Download |
Hanging Double-Sided Window Displays - Hardware User Manual | Download |
