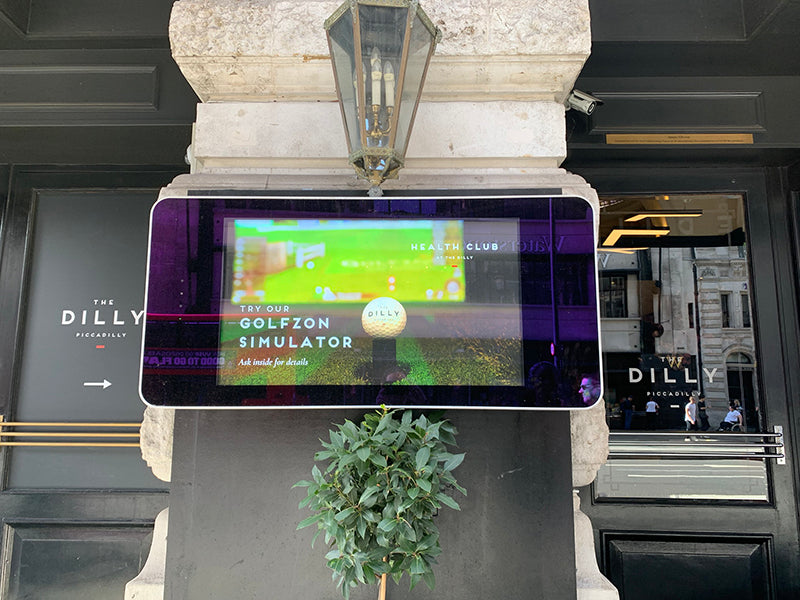

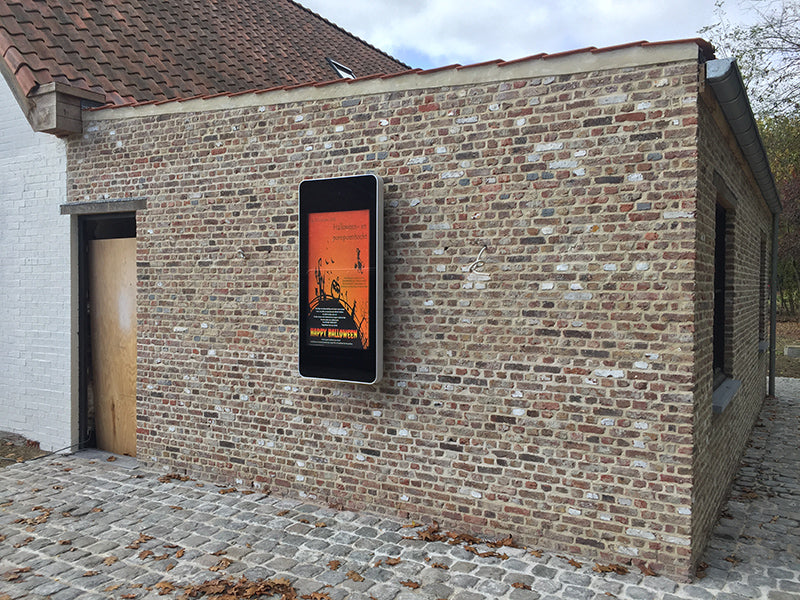

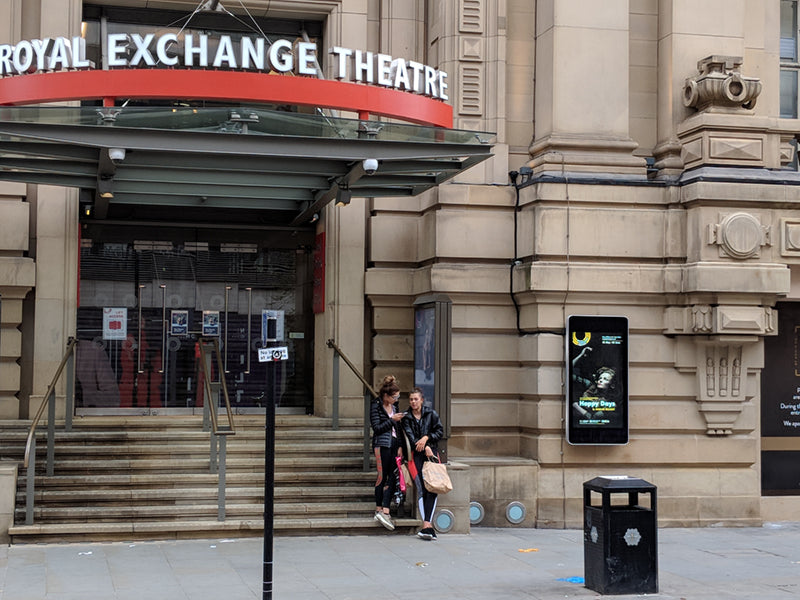

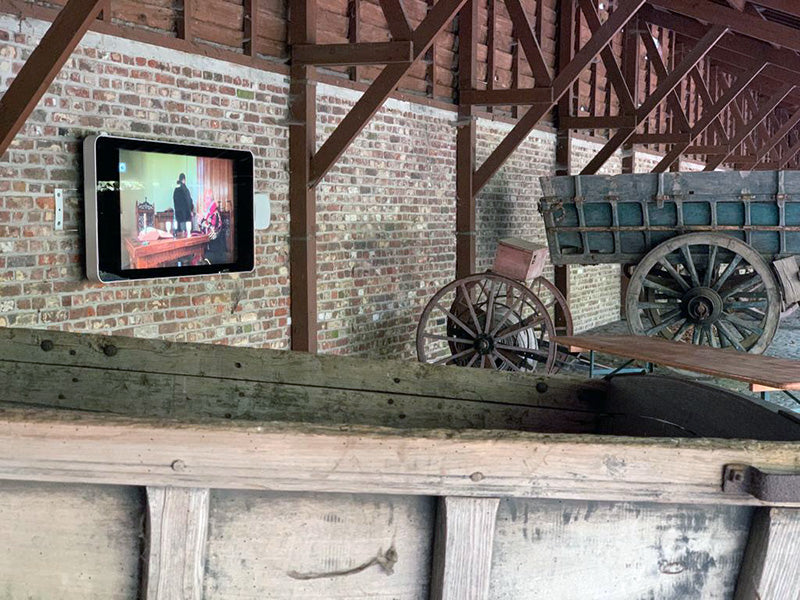

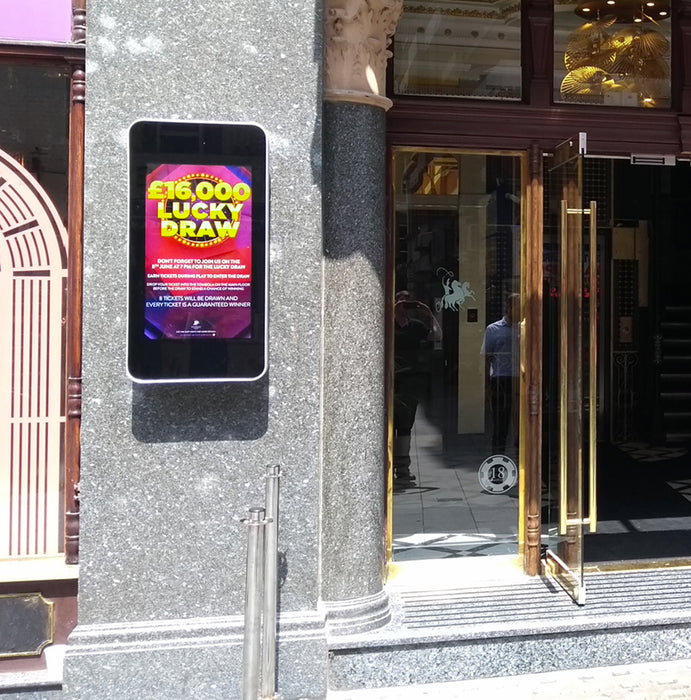

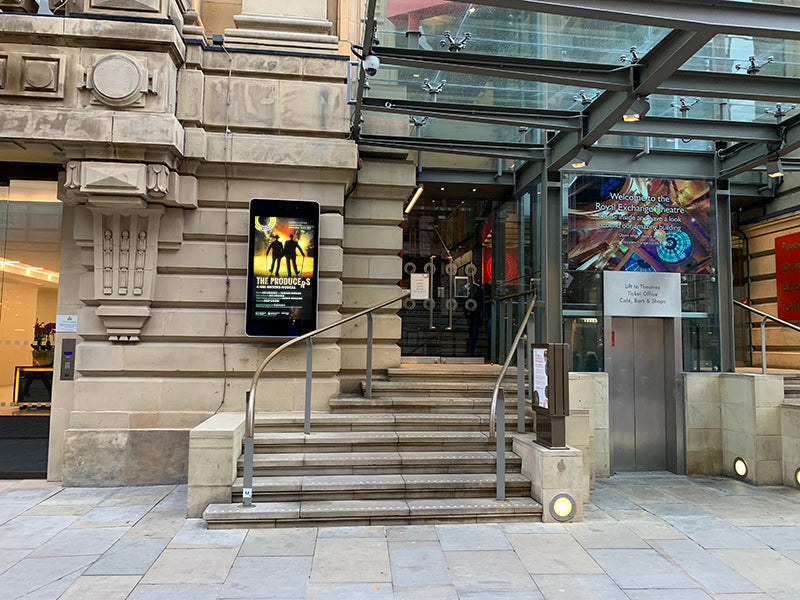

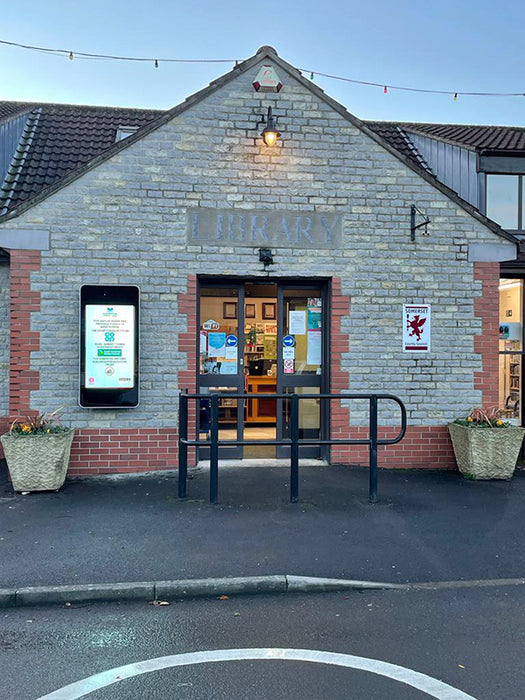

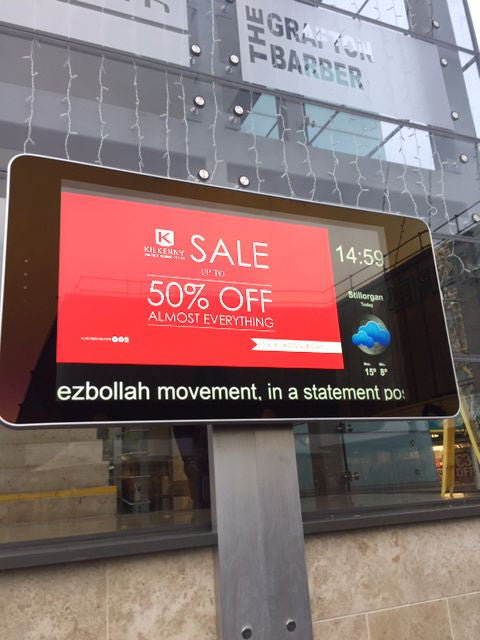

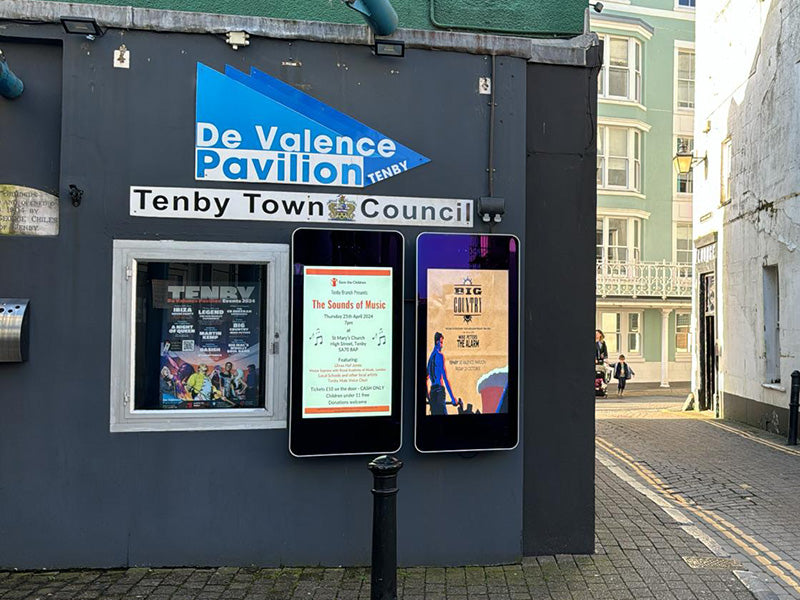

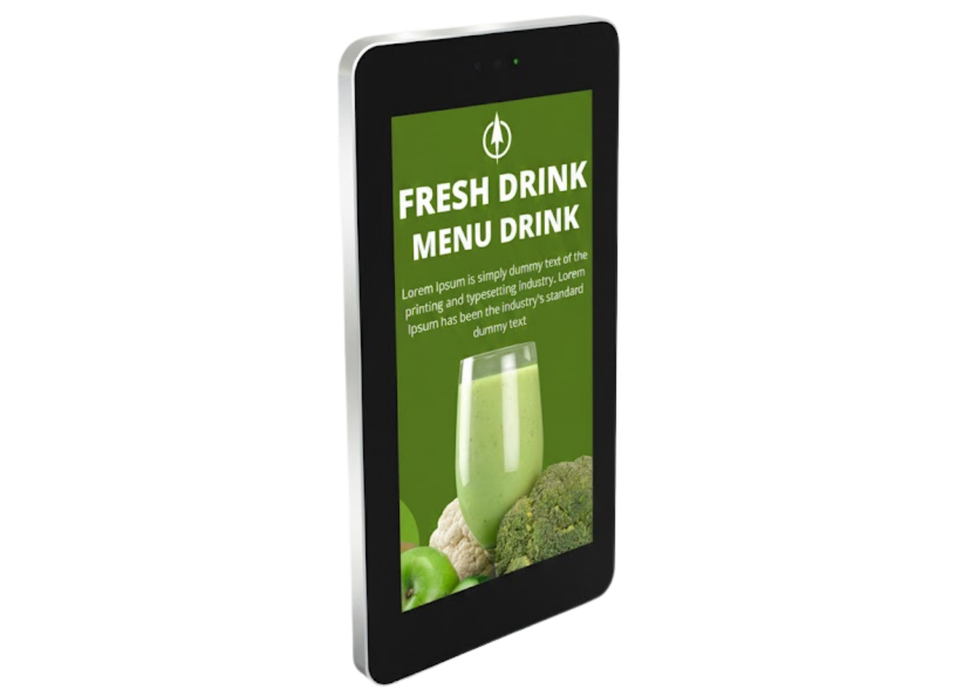

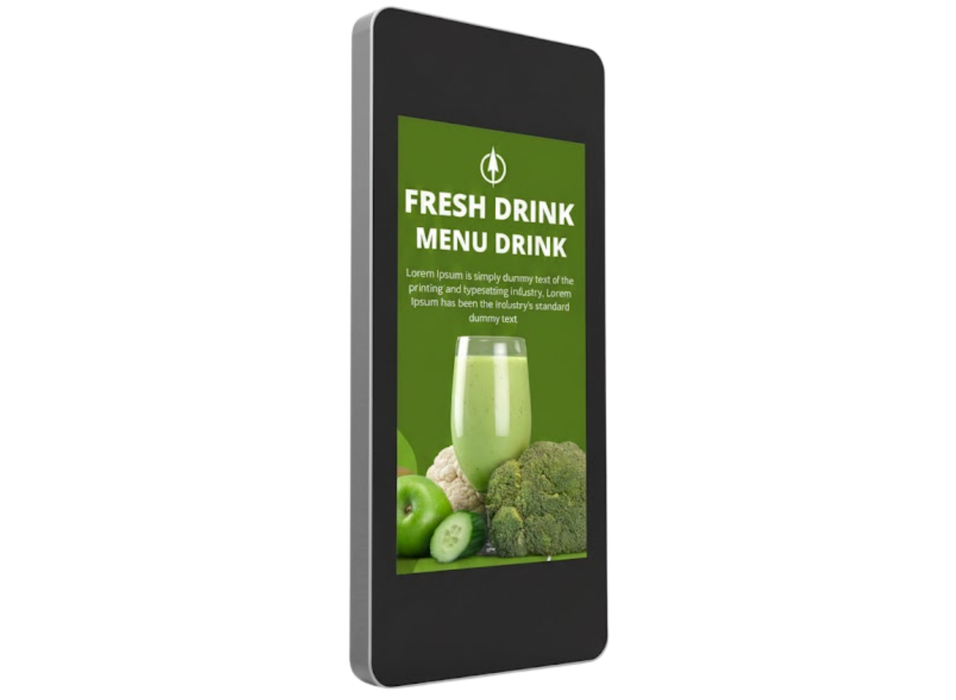

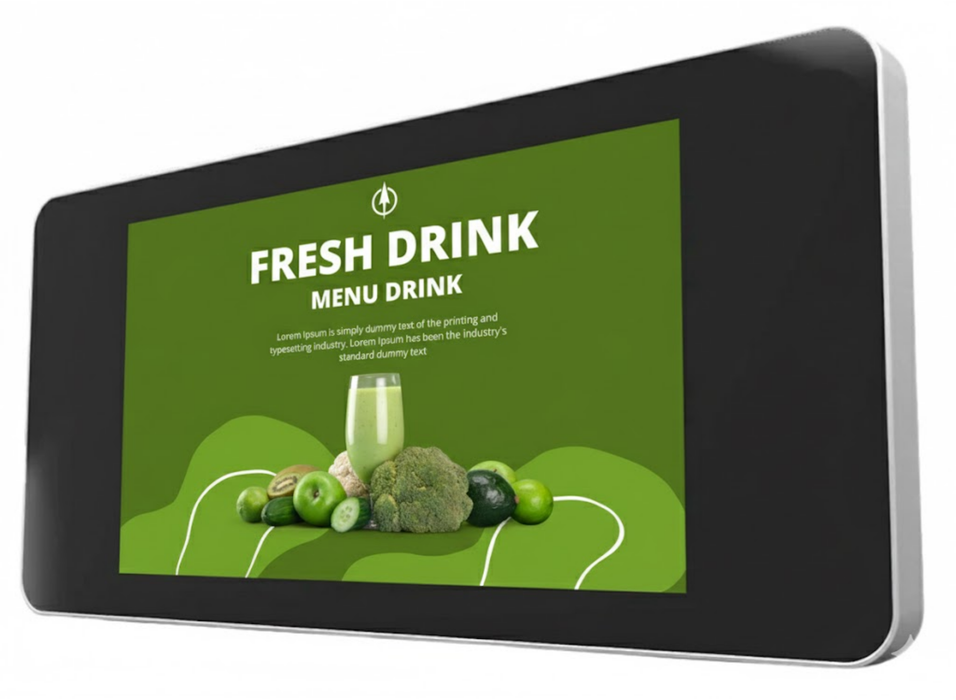

Wall-mounted Outdoor Digital Advertising Displays

SKU: OW22D4
|
Vendor: North Digital Signage | PDF Icon Specsheet
Resolution Full HD (1080p)

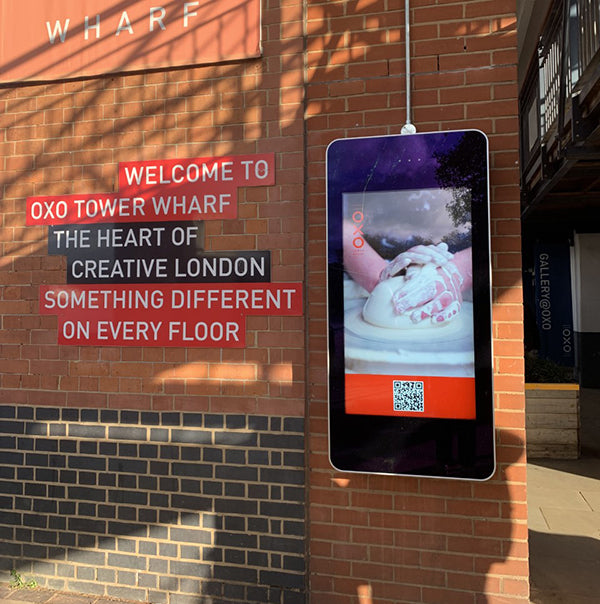

Orientation Landscape & Portrait
Operating Hours 24/7
Warranty 3 Year
Availability:
99 in stock.
Availability:
100 in stock.
Availability:
100 in stock.
Availability:
100 in stock.
Availability:
99 in stock.
Availability:
100 in stock.
🚚 Order before 4PM, get it by tomorrow.
Save £1,113.99 Save £276.00
Original price £1,998.00
Original price £1,998.00 - Original price £9,999.99
Original price £1,998.00
Current price £1,722.00
£1,722.00 - £8,886.00
Current price £1,722.00
(Inc. VAT)
Payment Icons
Request a quote
  • Description
  • Specifications
  • Downloads
  • IP Rated Ultra High Brightness Digital Signage Solution with 2500cd/m² Brightness, Weatherproof Design, Smart Cooling & Anti-Reflective Glass for 24/7 Outdoor Use

    IP Rated Ultra High Brightness Digital Signage Solution

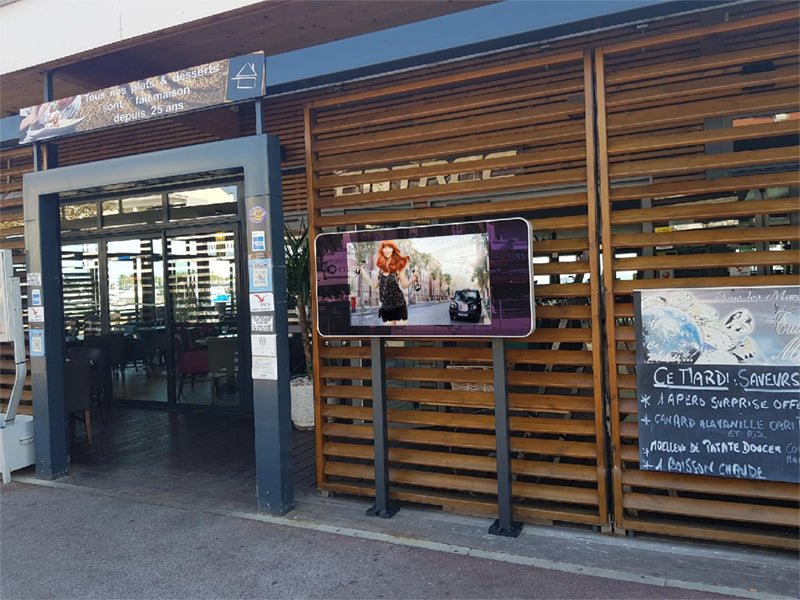

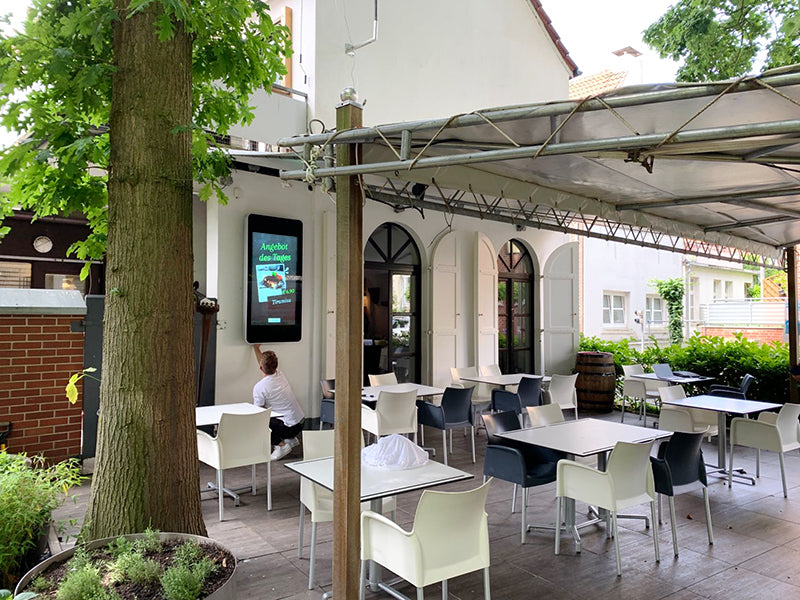

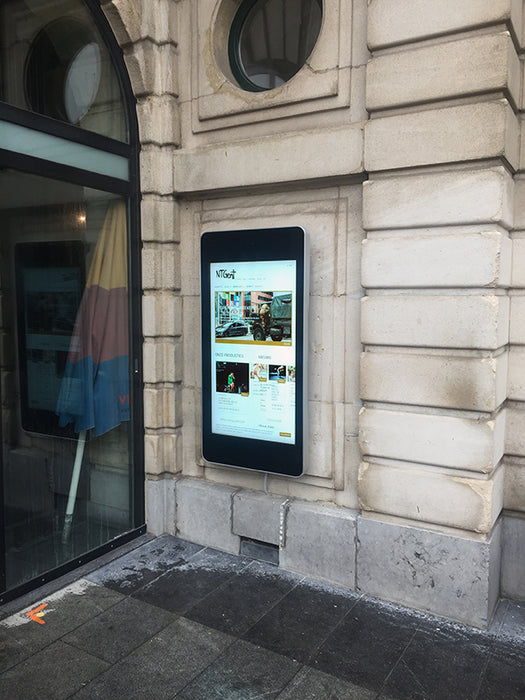

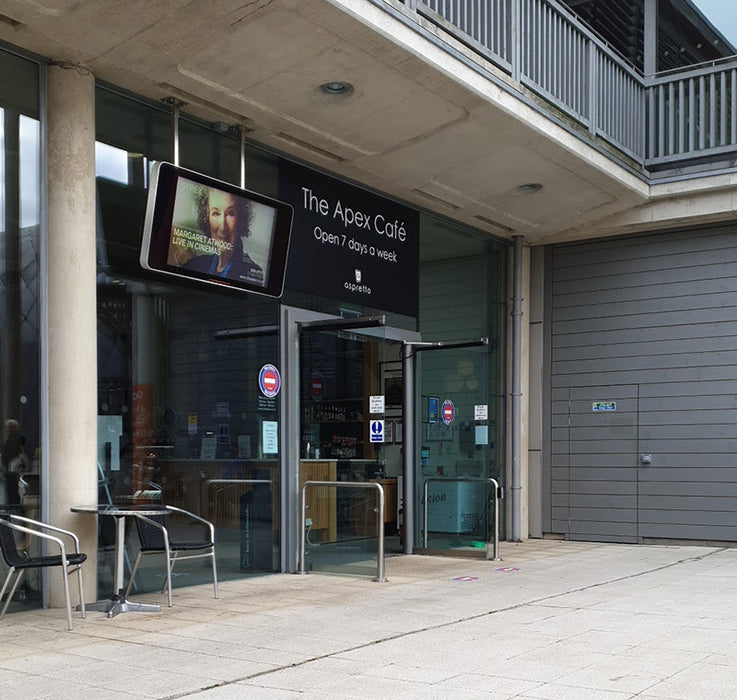

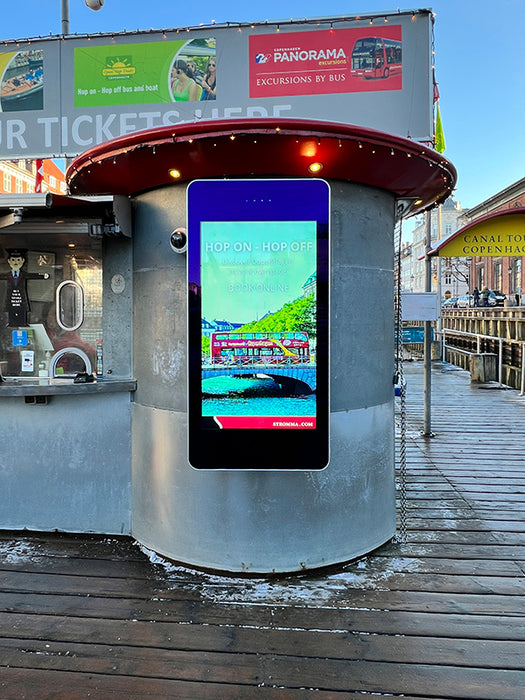

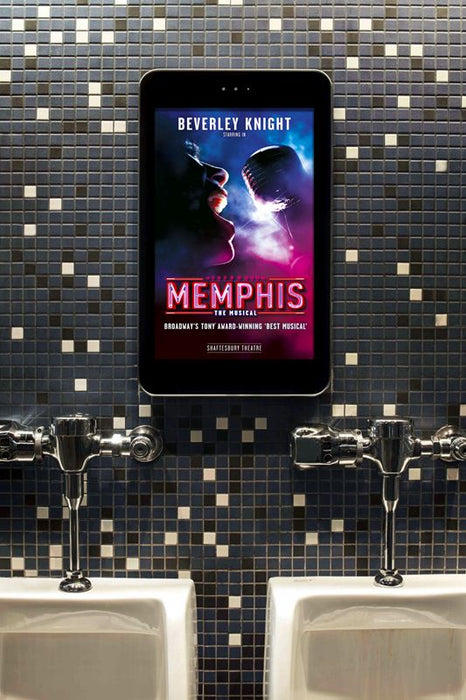

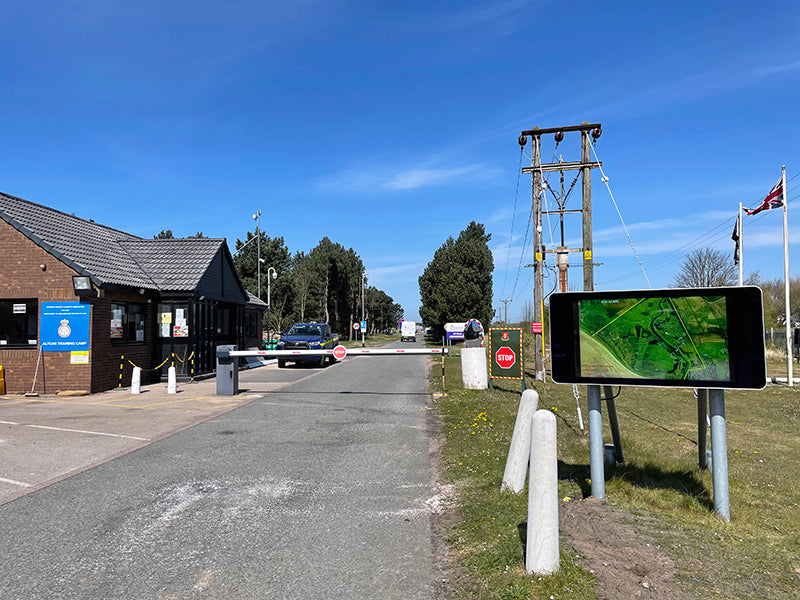

    Outdoor Digital Advertising Displays
    (22"-65") Larger sizes available on request

    Fully integrated stunning tablet-style displays; perfect for any weather conditions



    Direct Sunlight Readable
    Thanks to their commercial grade ultra-high brightness panels (2,500cd/m²), these displays are up to 10 times brighter than a domestic TV and so are easily readable even in direct sunlight.

    Weatherproof
    Designed to withstand the elements, these displays are protected against all wet weather conditions and airborne dust particles by their robust IP65 rated enclosure. They also feature a waterproof coating on all internal circuit boards and waterproof over-moulded AV connectors.


    Full Array Local Dimming Panel∗

    Local Dimming delivers unparalleled image quality by dynamically adjusting brightness across the entire screen. Experience stunning contrast, deeper blacks, and vibrant highlights while dramatically reducing power consumption and heat output—enhancing both efficiency and panel longevity for uncompromising outdoor performance.


    Remarkable 4K Display∗

    With four times the resolution of Full HD you can achieve a truly immersive experience with an incredible image quality. The 4K resolution is now compatible with the integrated Android Media Player, our CMS software, HDMI channels and third party devices, giving you ultimate flexibility.


    Enhanced Durability

    Featuring an improved paint formulation, our upgraded design offers greater resilience against the elements. This ensures a consistently high-quality appearance, even in harsh outdoor conditions, providing long-lasting protection and maintaining a professional look in any environment.

    Vandal Proof
    With a mild steel enclosure and thermally-toughened glass front, these IK10 rated displays are designed to withstand any damage that may occur in public spaces. To avoid tampering, controls and inputs are hidden and cannot be accessed by passers-by.

    Advanced Temperature Control System
    To maximise the lifespan of the display, the internal airflow system keeps the screen running at the optimal temperature regardless of the external conditions. Built-in air conditioning can be tailored to allow the display to work in any climate.

    Anti Reflective Glass
    The front glass face is specially treated to help diffuse direct sunlight, making the display easily readable even in bright weather conditions.

    Plug and Play
    Plug and Play is the most straightforward way to upload content to the screen. Simply load images and videos onto a USB, insert into the display, wait for your content to copy over, then remove. Your images and videos will now play in a continuous loop.

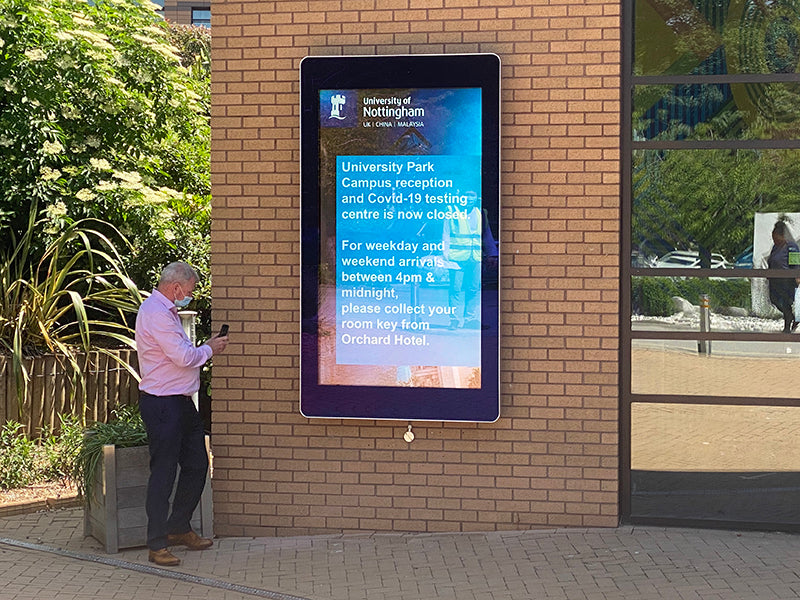

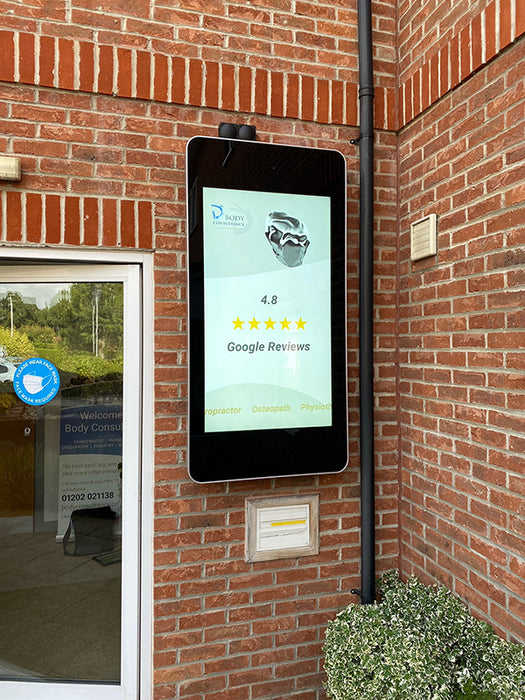

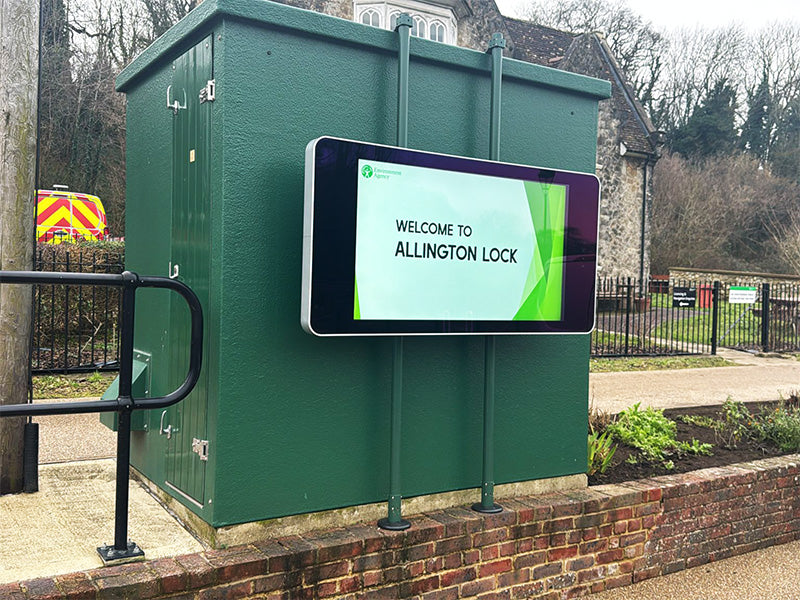

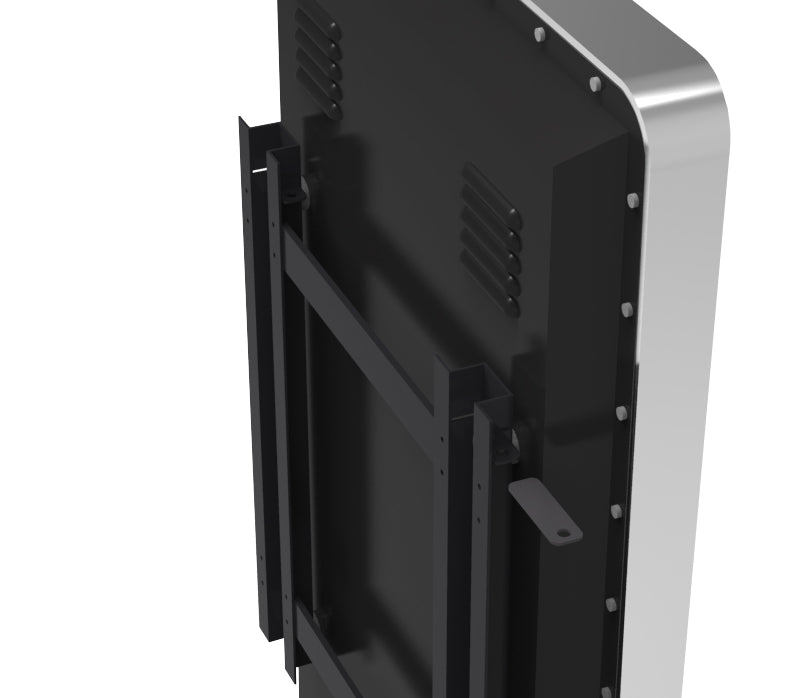

    Free Lockable Wall Mount

    To ensure that this a complete turnkey solution, a lockable wall mount is included at no extra cost, allowing you to securely mount your screen in either landscape or portrait orientation.


    Internal Locker

    Should you need run the screen from an external source, there is space to fit a small PC or media player inside the lockable compartment. This can then be connected to the display via the HDMI, VGA or 3.5mm audio inputs.


    Optional Network Upgrade

    For a small charge, you can upgrade your screen to be networked. This will allow you to connect your screen via Wi-Fi, LAN or 4G, and then remotely update it over the internet.


    Customisation Available

    Bespoke displays can be manufactured to order should you require a non-standard solution, to incorporate a camera or touch screen upgrade for example. We can also modify existing models to add a 4G module for mobile connectivity or a vinyl logo/wrap.
    *55" and above only

    Outdoor PCAP Wall-Mounted Touch Screen Displays

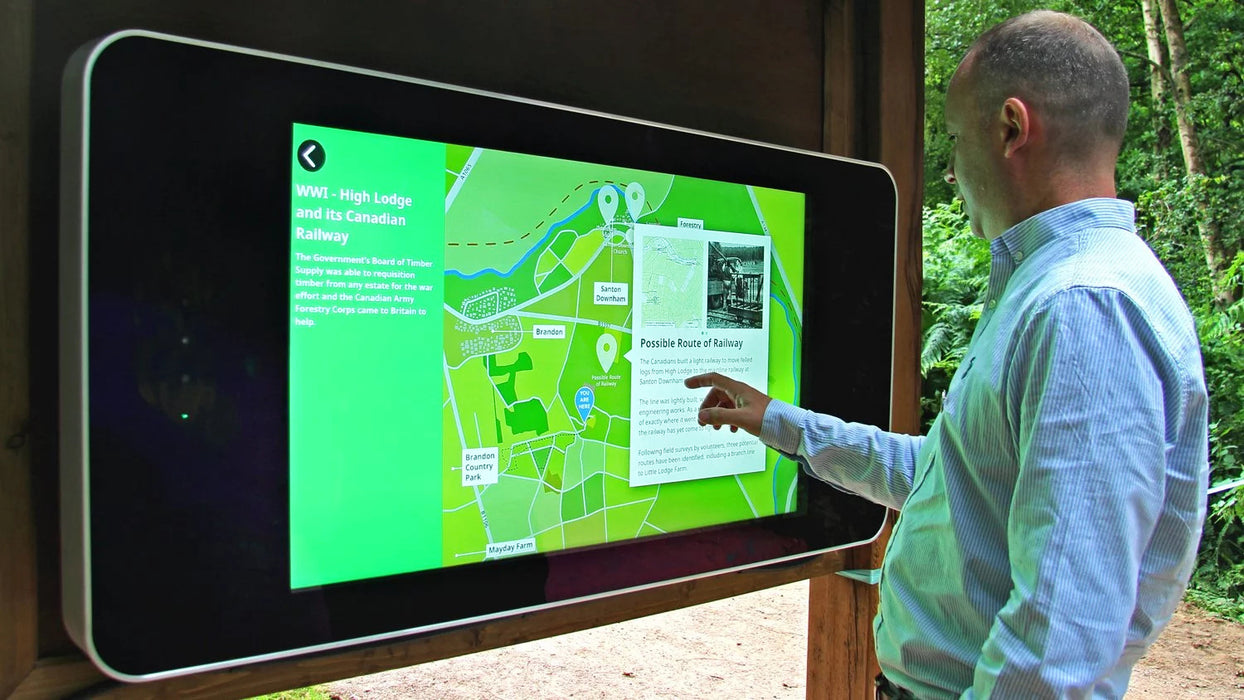

    PCAP Touch Screen
    State-of-the-art projected capacitive technology provides the most responsive and sensitive touch experience available, as well as offering superior optical quality. Unlike other touch technologies, PCAP is not affected by dust or debris on the surface of the screen.

    No Ghost Touch
    The electrodes that control the interactivity are sandwiched between two layers of special protective glass to prevent phantom touches. This ensures ultimate accuracy and a seamless touch experience.

  • 22" Display Area (mm) 477x270 Unit Size (mm) 737x397x120
    Resolution (px) 1920x1080 Brightness (cd/m²) 2,000
    Colour 1.06B Pixel Pitch 0.2537x0.2537
    VESA Holes 250x250 Net Weight 22kg
    Gross Weight 27kg Power Consumption (W) 130
    32" Display Area (mm) 702x396 Unit Size (mm) 1001x516x130
    Resolution (px) 1920x1080 Brightness (cd/m²) 2,500
    Colour 1.06B Pixel Pitch 0.36375x0.36375
    VESA Holes 340x340 Net Weight 38.4kg
    Gross Weight 46.2kg Power Consumption (W) 134
    43" Display Area (mm) 941x529 Unit Size (mm) 1410x670x140
    Resolution (px) 1920x1080 Brightness (cd/m²) 2,500
    Colour 16.7M Pixel Pitch 0.1615x0.4845
    VESA Holes (mm) 400x400 Net Weight 65kg
    Gross Weight 82.5kg Power Consumption (W) 250
    49" Display Area (mm) 1073x603 Unit Size (mm) 1500x746x140
    Resolution (px) 3840x2160 Brightness (cd/m²) 2,500
    Package Size (mm) 1630x900x300 Colour 16.7M
    Landscape VESA Holes 800x500 Portrait VESA Holes 500x800
    Net Weight 82kg Gross Weight 101kg
    Power Consumption (W) 380 55" Display Area (mm) 1215x686
    Unit Size (mm) 1638x817x140 Resolution (px) 3840x2610
    Brightness (cd/m²) 2,500 Package Size (mm) 1780x1050x300
    Colour 1.073G Landscape VESA Holes 800x600
    Portrait VESA Holes 600x800 Net Weight 95kg
    Gross Weight 115.5kg Power Consumption (W) 450
    65" Display Area (mm) 1428.5x803.5 Unit Size (mm) 1910x990x140
    Resolution (px) 3840x2160 Brightness (cd/m²) 2,500
    Colour 1.07B Landscape VESA Holes 1100x400 / 1300x400
    Portrait VESA Holes 600x800 / 600x1000 Net Weight 112kg
    Gross Weight 165kg Power Consumption (W) 550
    Panel Aspect Ratio 16:9 Viewing Angle 178°
    Video Input HDMI, VGA Input Voltage AC110~240V (50Hz~60Hz)
    Ingress Protection IP65 Impact Protection IK10
    Operating Temperature -20°C to 50°C Storage Temperature -30°C to 60°C
    Operating Humidity 10% - 80% Storage Humidity 5% - 90%
    OS Android 7.1 Internal Memory 32GB
    CPU Quad-Core Cortex-A17@1.61GHz GPU Mali-T760 MP4 @600MHz
    RAM 4GB DDR3 USB USB2.0 HOST (x4)
    LAN 10/100M Ethernet Wi-Fi 802.11b/g/n
    OS Android 10 Internal Storage 32GB
    CPU Rockchip RK3399 @1.8GHz GPU Mali-T860 MP4 @600MHz
    RAM 4GB DDR3 USB USB2.0 (x2), USB3.0 (x2)
    LAN 10/100M Ethernet Wi-Fi 802.11b/g/n/ac
    Included Accessories AC Power Cable, Remote Control, Wall Mount Optional Accessories Touch Screen Upgrade, Network Upgrade, Camera
  • 22" Outdoor Advertising Display - Spec Sheet Downloads
    32" Outdoor Advertising Display - Spec Sheet Downloads
    43" Outdoor Advertising Display - Spec Sheet Downloads
    49" Outdoor Advertising Display - Spec Sheet Downloads
    55" Outdoor Advertising Display - Spec Sheet Downloads
    65" Outdoor Advertising Display - Spec Sheet Downloads
    22" Outdoor Advertising Display - Technical Drawing Downloads
    32" Outdoor Advertising Display - Technical Drawing Downloads
    43" Outdoor Advertising Display - Technical Drawing Downloads
    49" Outdoor Advertising Display - Technical Drawing Downloads
    55" Outdoor Advertising Display - Technical Drawing Downloads
    65" Outdoor Advertising Display - Landscape Technical Drawing Downloads
    65" Outdoor Advertising Display - Portrait Technical Drawing Downloads
    Outdoor Advertising Displays - User Manual Downloads
    Outdoor Advertising Display - Installation Guide Downloads
