Versatile giant all-in-one direct view LED screen. Integrated Android and speakers create a big impact.
Fine Pitch LED Video Walls
(138" and 165")
All-in-One DV-LED Display
The Fine Pitch DV-LED Video Walls combine the best quality LED technology on the market with a sophisticated Android based PC. This provides an integrated solution for most cases without the need for messy cables or additional devices.
Powerful Integrated Soundbar
The display features two 30W high quality integrated speakers, adding crystal clear audio to the stunning visuals for a truly immersive experience. Finely tuned by sound engineers the speakers are ready to go out of the box. Integrated neatly into the screen the speakers offer an impressive listening experience.
Lightweight and Slim Design
Despite their large size the Fine Pitch DV-LED Video Walls have a compact design with a slim depth of just 31mm and a lightweight cabinet for reduced stress on the mounting wall.
Easy Access Front Ports
The Fine Pitch LED Video Wall has a variety of easy to access controls and ports on the front of the display including a HDMI and 2 x USB ports.
Wireless Mirroring
During meetings or presentations you can wirelessly mirror and file share between your devices and the display. Featuring easy access front ports for connecting your laptop, remote video conferencing and multi-window splicing for maximum user engagement.
Easy Front Maintenance
Through an intuitive and easy-to-use maintenance system the LED Video Wall can be serviced from the front of the display. The LED modules can be removed quickly and efficiently for convenient maintenance.
Model | 138 Inch - FP138-B | Model | 165 Inch - FP165-B |
Pixel Pitch (mm) | 1.5 | Pixel Pitch (mm) | 1.9 |
Display Area (mm) | 3050x1715 | Display Area (mm) | 3660x2058 |
Unit Size (mm) | 3064x1832x31 | Unit Size (mm) | 3674x2175x31 |
Net Weight | 135kg | Net Weight | 190kg |
Average Power | 640W | Average Power | 830W |
Max Power | 1,870W | Max Power | 2,460W |
Resolution | 1920x1080 | ||
Aspect Ratio | 16:9 | ||
Brightness | 100-550 cd/m² | ||
Grayscale | 13~16 Bit | ||
Contrast Ratio | 6500:1 | ||
Viewing Angle | 170° | ||
Maintenance | Front Access Only | ||
Front Inputs | USB 2.0 x2, USB Type-C, HDMI, 3.5mm Audio Out | ||
Input Voltage | AC110~240V (50Hz~60Hz) | ||
CPU | ARM Cortex A72, Cortex A53, 2.0GHz | ||
GPU | ARM Mali-T860 MP4 | ||
Memory / Storage | 4GB / 32GB | ||
LAN / Wi-Fi | 100M/1000M Ethernet / 802.11ac | ||
OS | Android 9 | ||
Operating Temp | -10°C to 40°C | ||
Operating Humidity | 10% to 85% | ||
Accessories Included | Remote, Maintenance Tool, Tool Kit, Wall Mount | ||

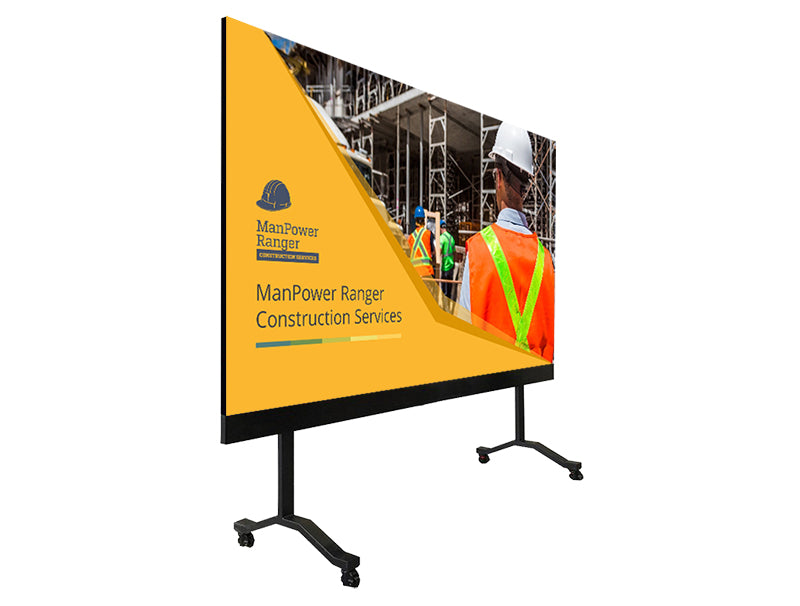

Optional Accessories | Floor Stand |
Fine Pitch DV-LED Video Walls - FPxx-B - Spec Sheet | Downloads |
