All-in-One Network Package Digital Signage Solution

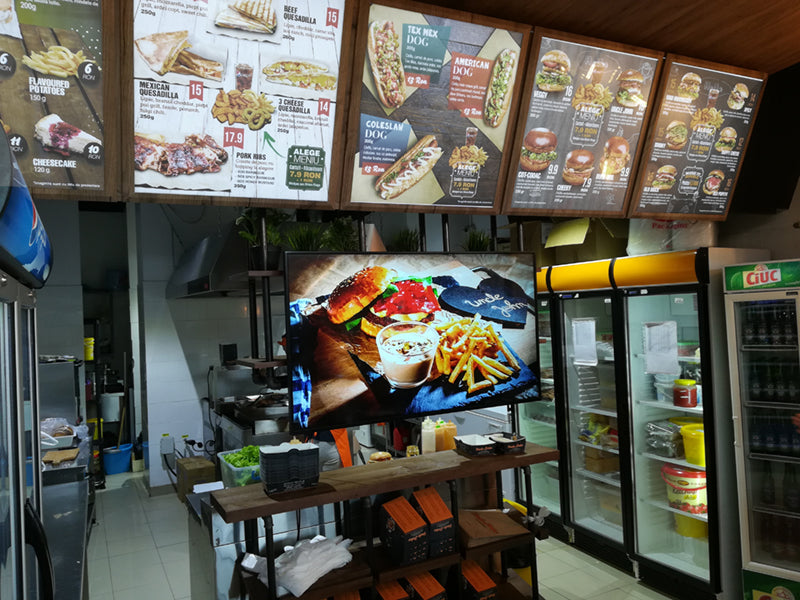

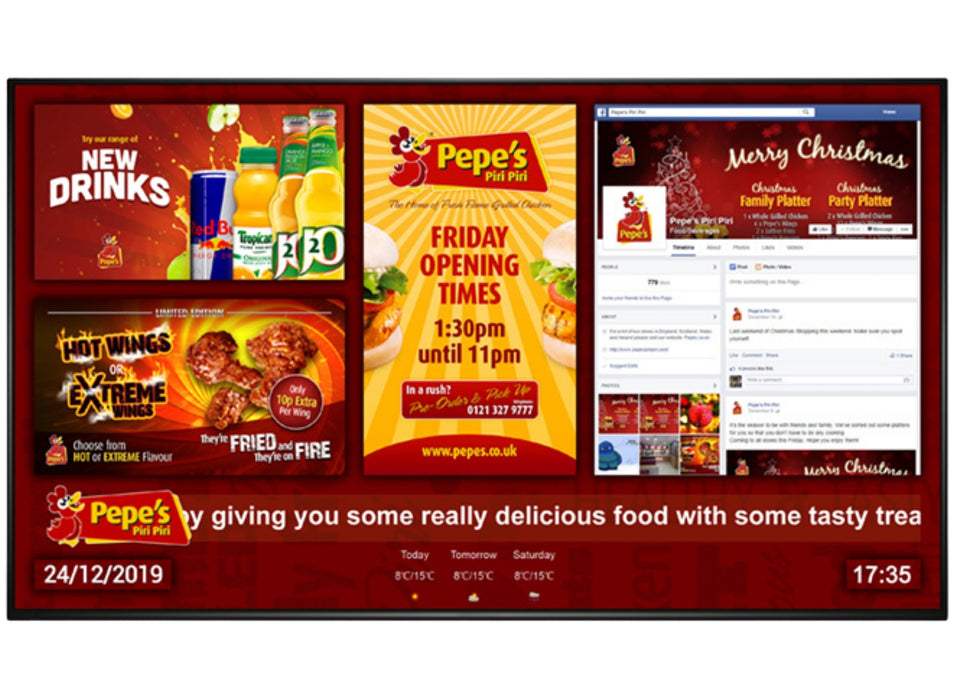

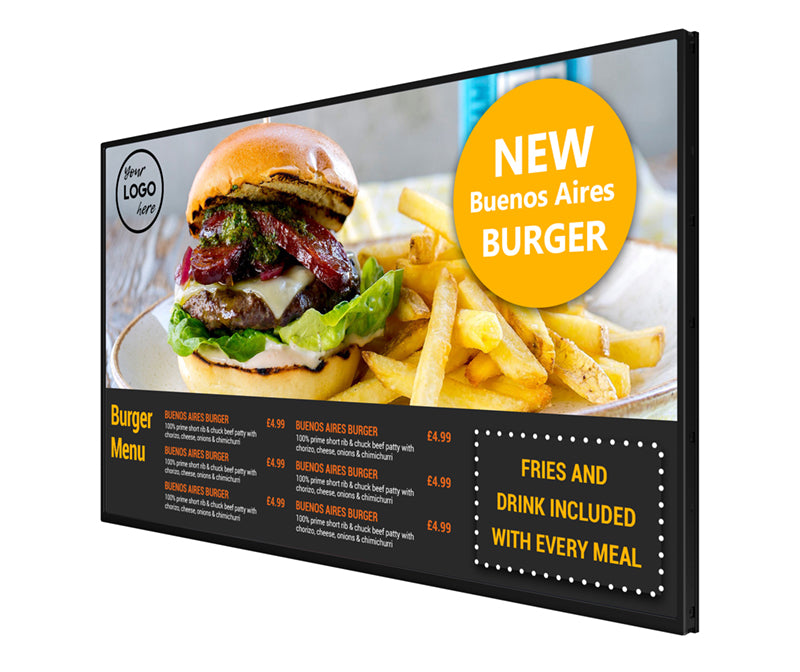

Network Digital Menu Boards
(32"-55") Larger sizes available on request
Cost-effective package solution; 24/7 commercial grade displays with built-in network media player and 1 year CMS software subscription
Update Over the Internet
Updating your Digital Menu Boards is extremely simple; connect it to your network using the integrated Wi-Fi or using an Ethernet cable. Login to www.MySignagePortal.com to choose from a library of templates, upload your own media, manage playlists, create your own templates and schedule content for whenever you want; giving you complete control over your screens. No special software installation or dedicated PC is required, you can update your screens from anywhere in the world with an internet connection. For a free trial account click here.
1 Year Free Software Licence
With our package the first year of using our cloud based content management system is absolutely free. You don’t pay anything for 12 months and get full unrestricted access to the software as well as lifetime technical support. You can also purchase 3 additional year’s access at the point of purchase or make a one off payment to have access for life.
Template Library
Browse and choose from our exclusive library of Digital Signage templates. Within each predesigned template you get the original media files, template layout and playlist. You can customise each of these to just how you would like. You can add your own prices, branding, images or videos. Change the font size or colour; the templates are fully adaptable to your needs.

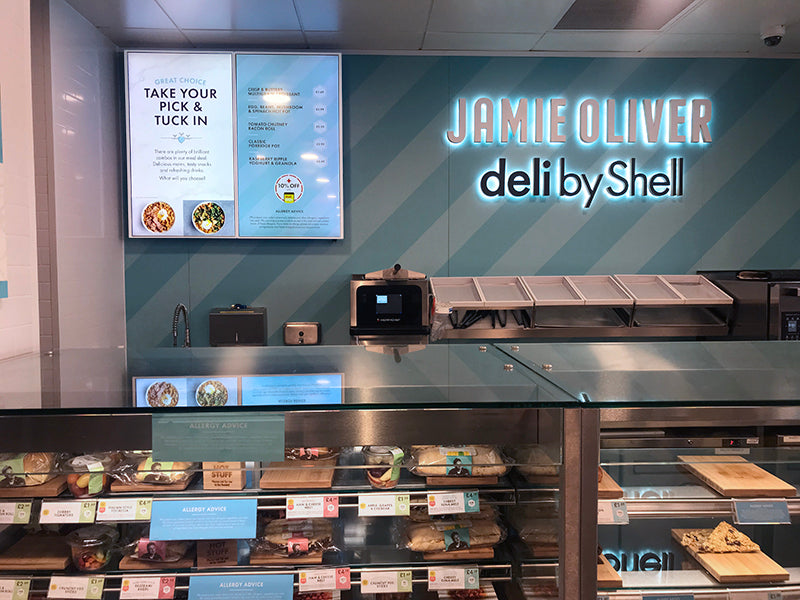

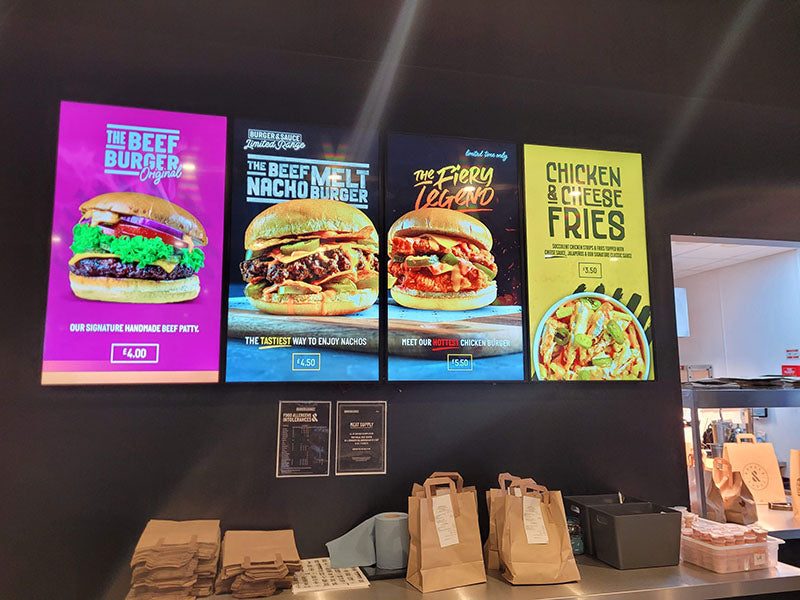

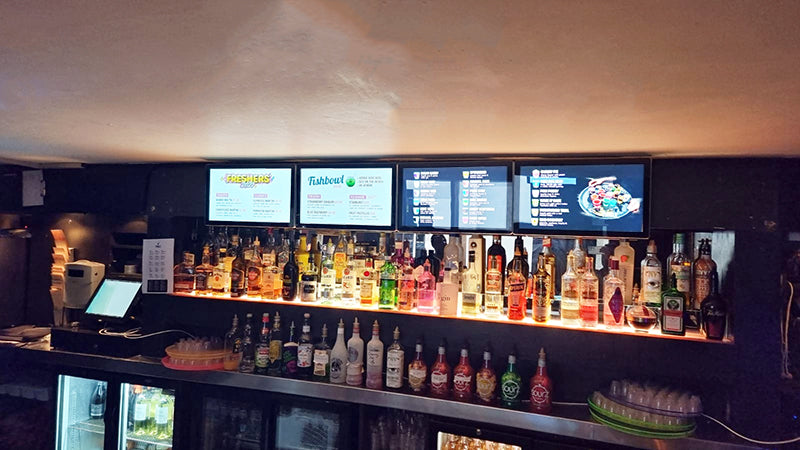

Multi-Screen Synchronisation

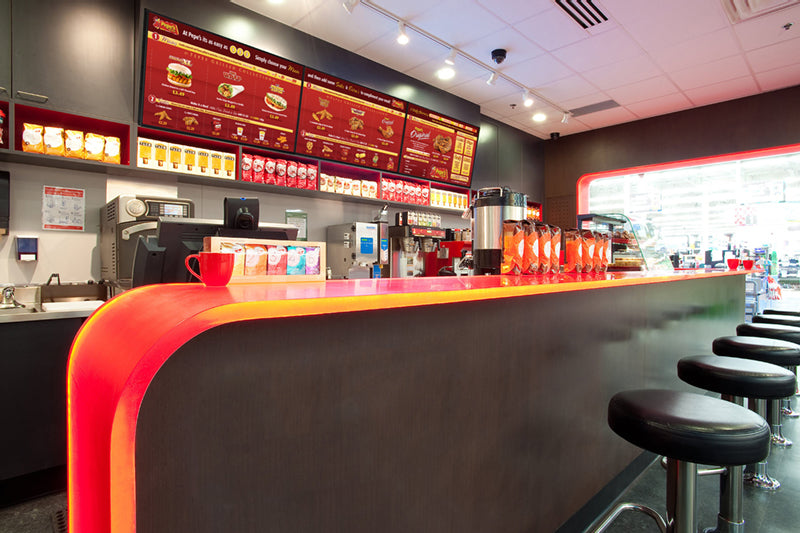

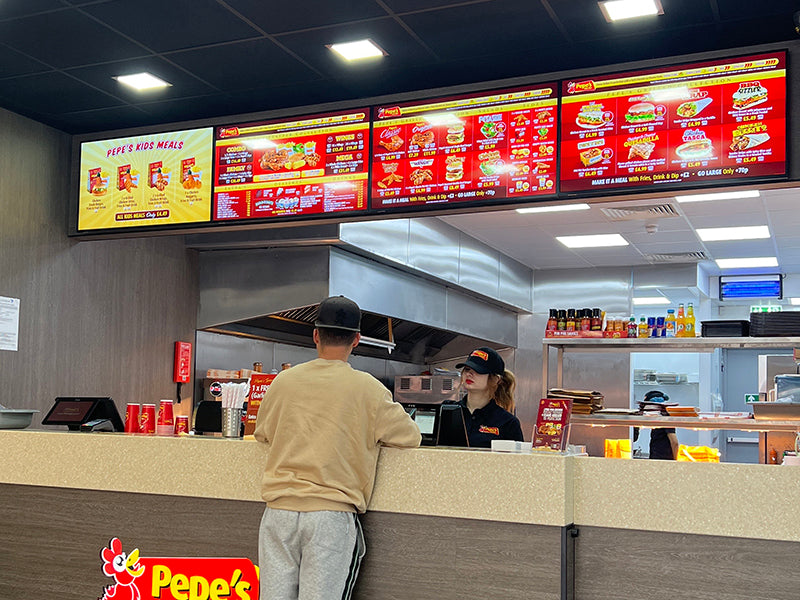

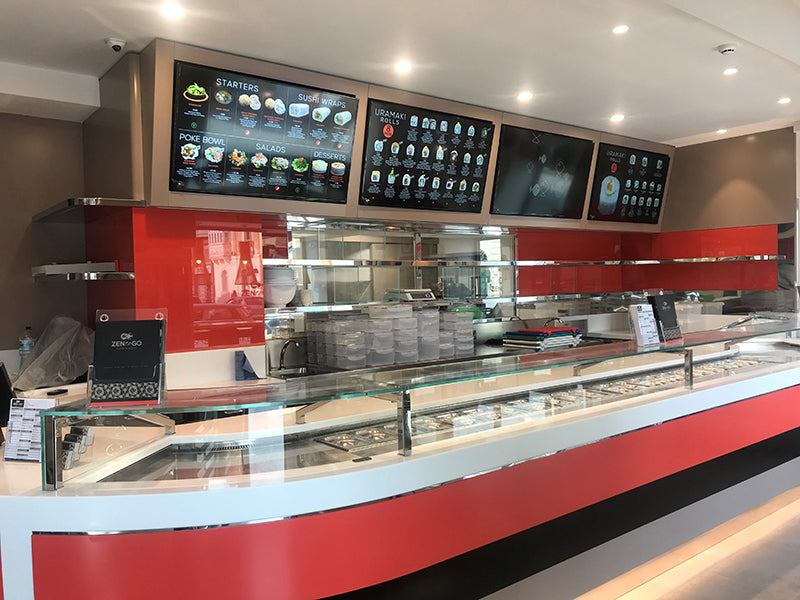

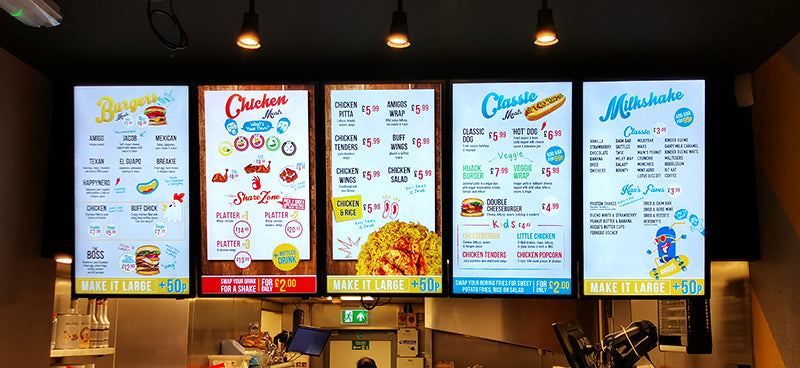

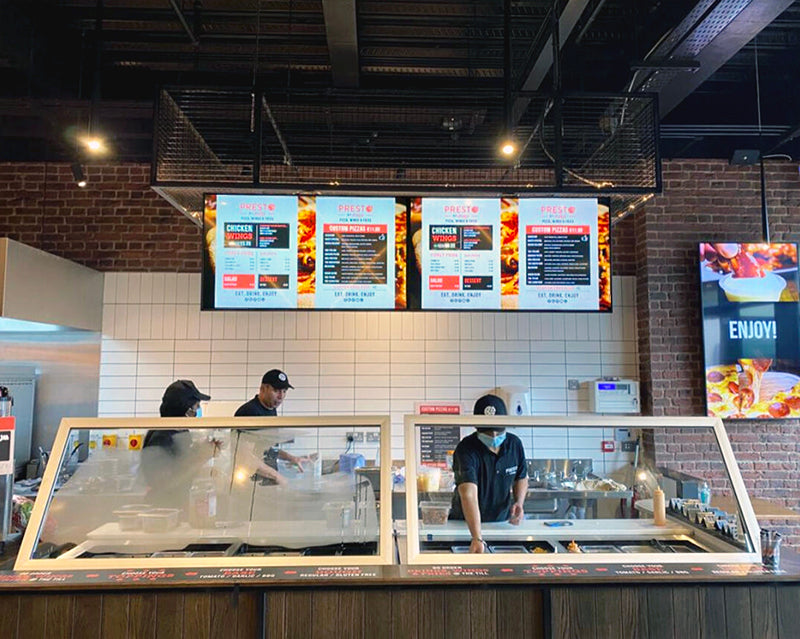

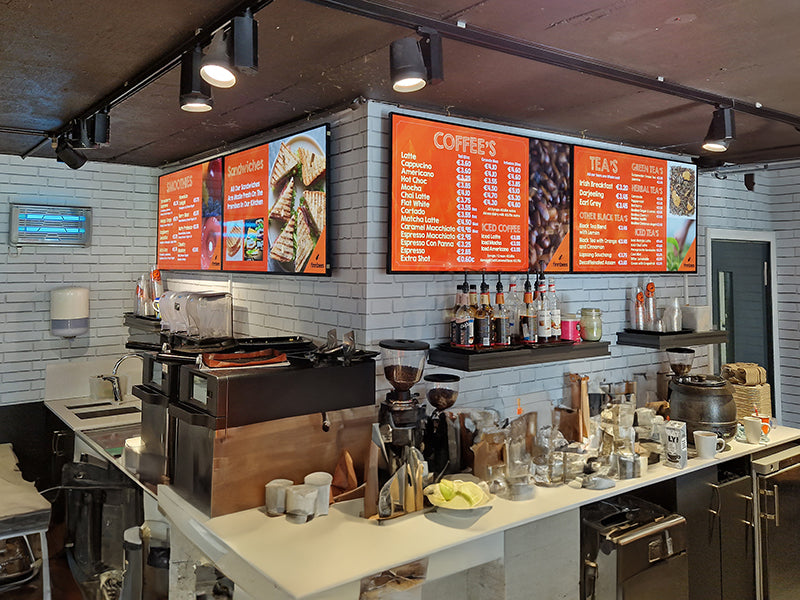

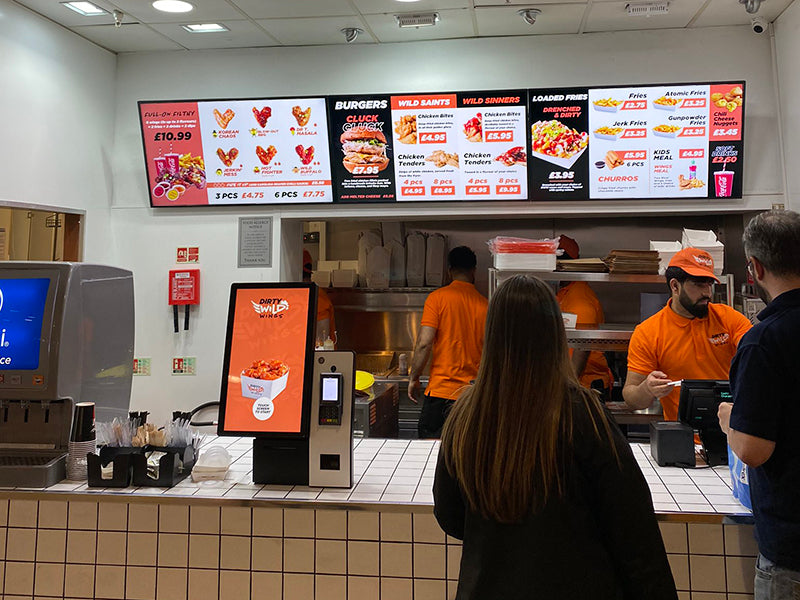

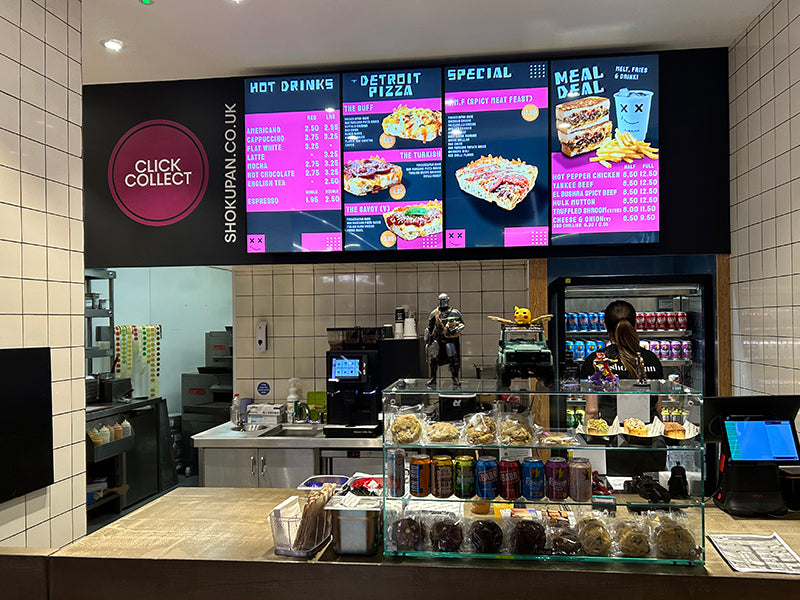

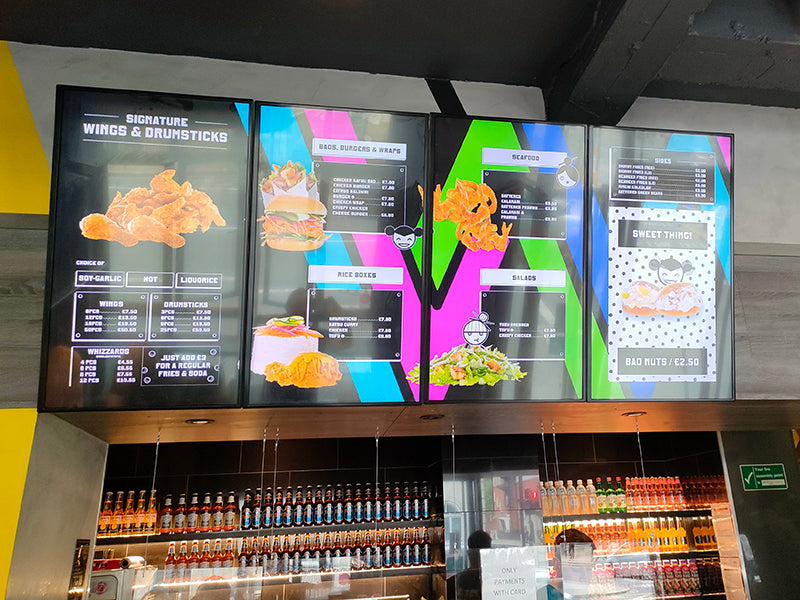

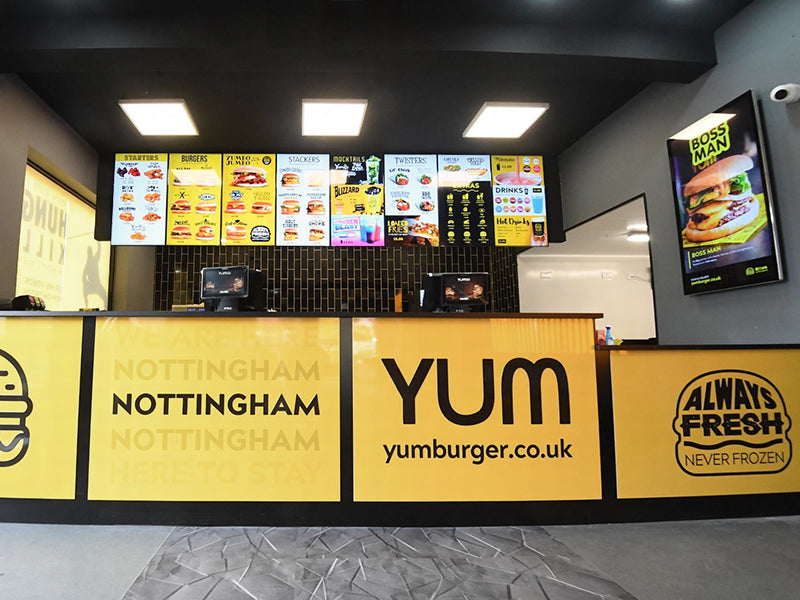

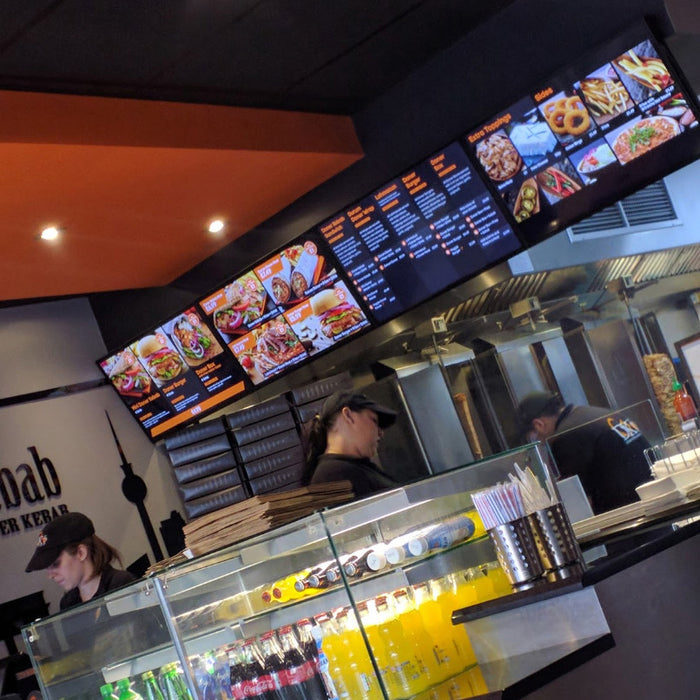

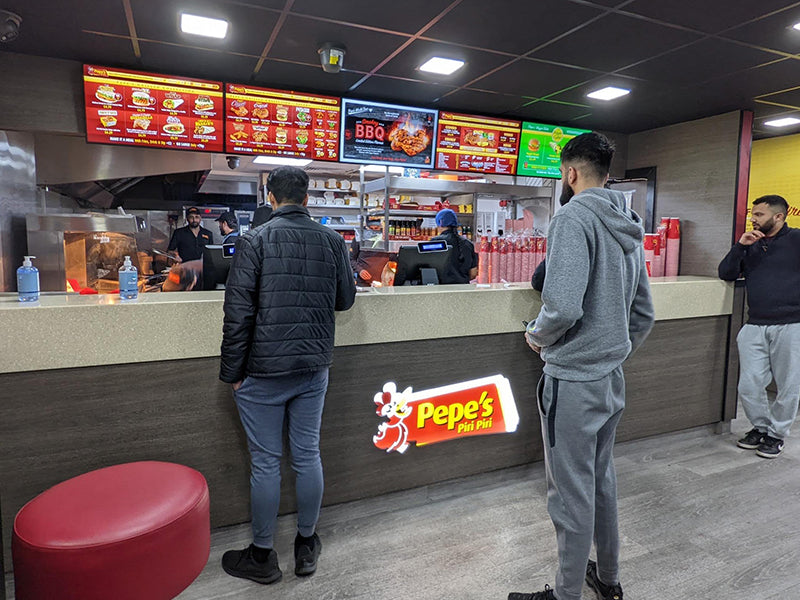

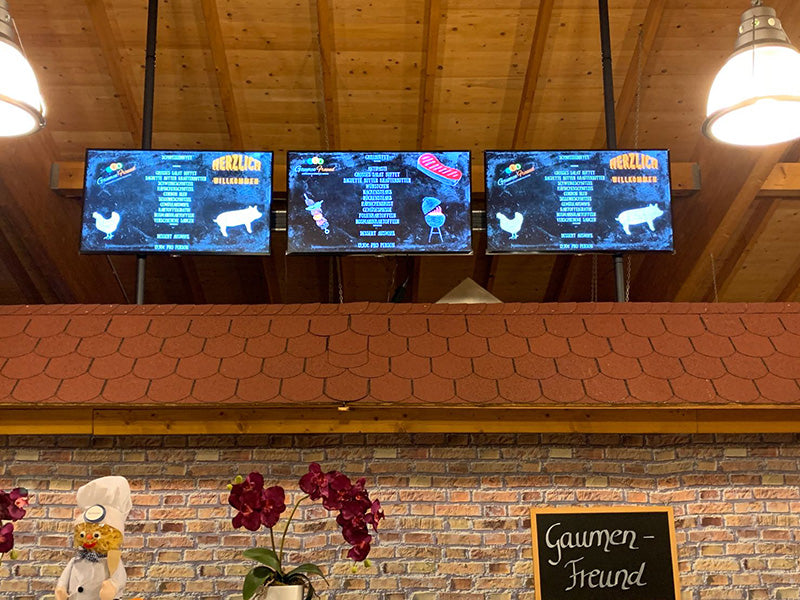

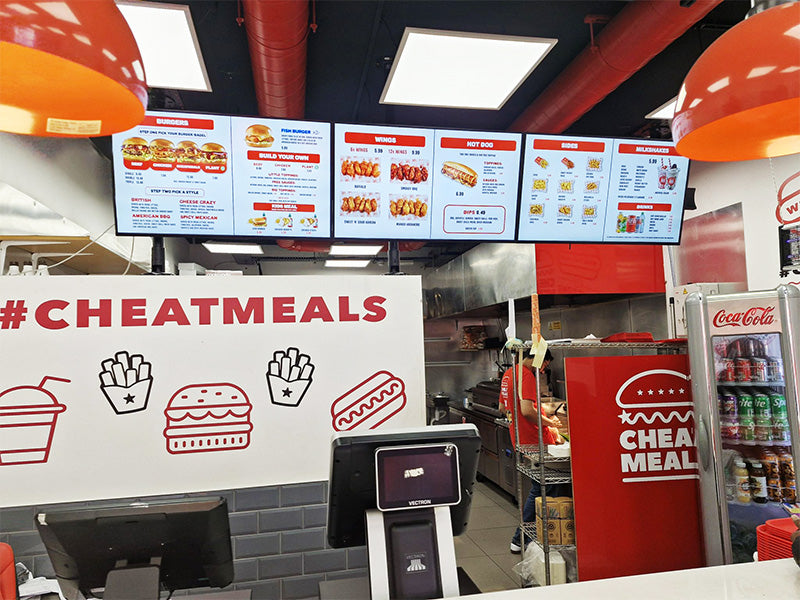

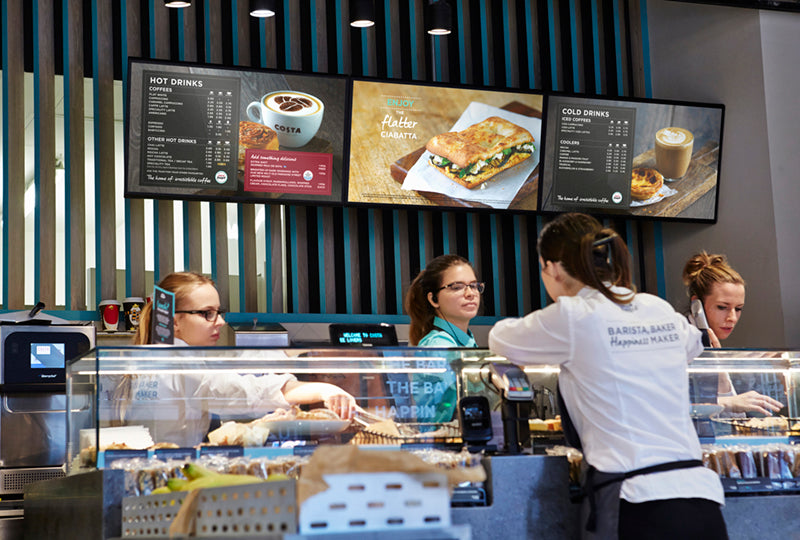

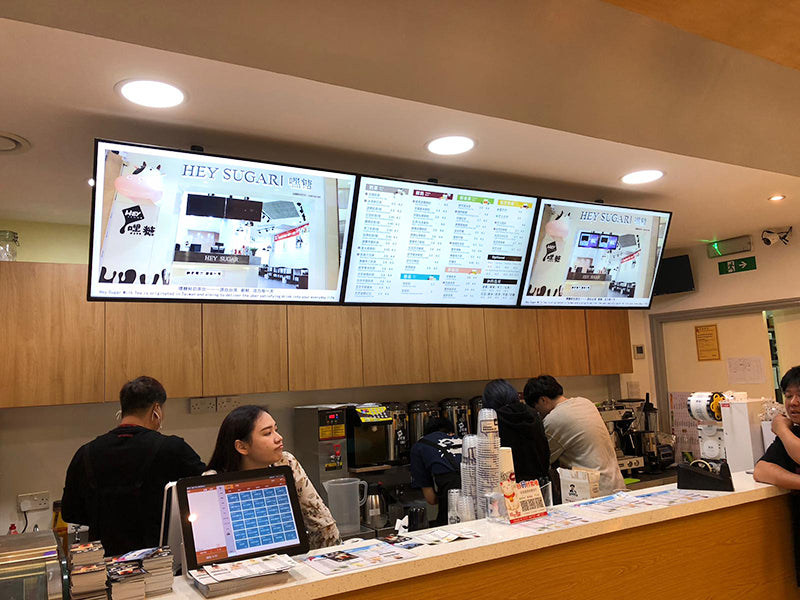

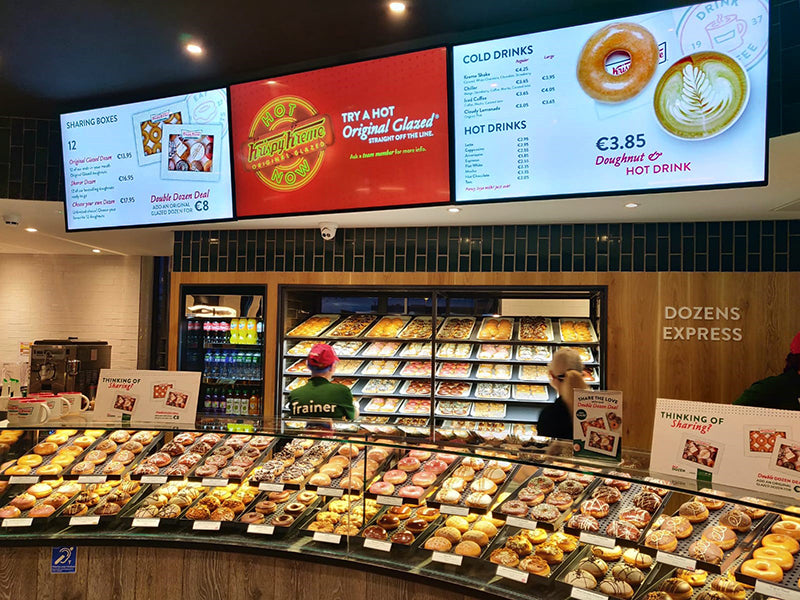

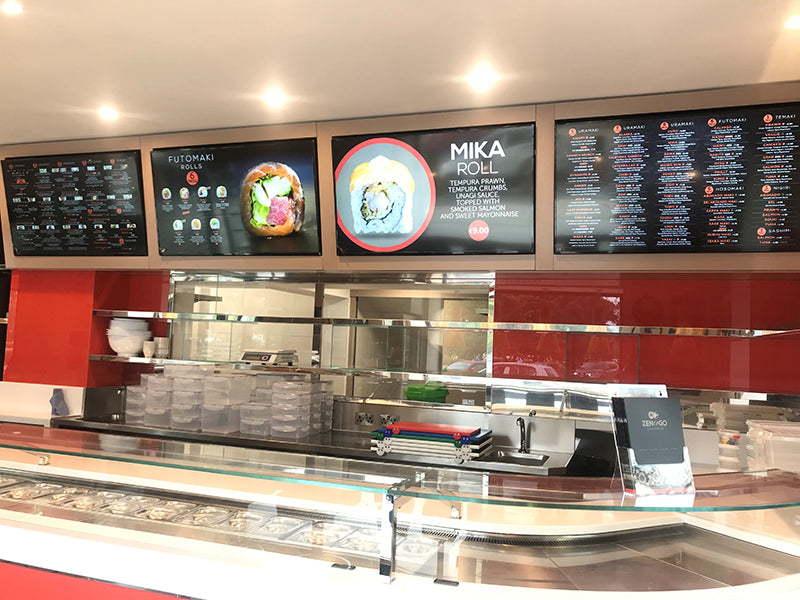

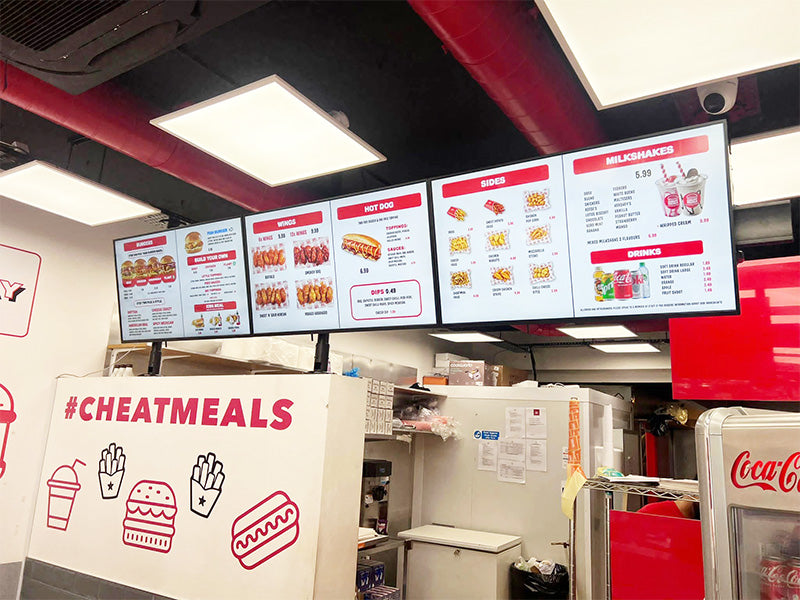

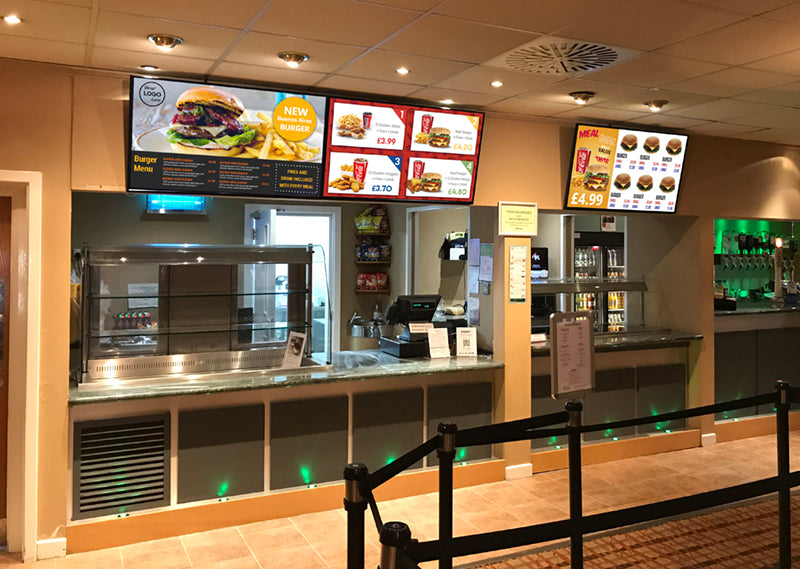

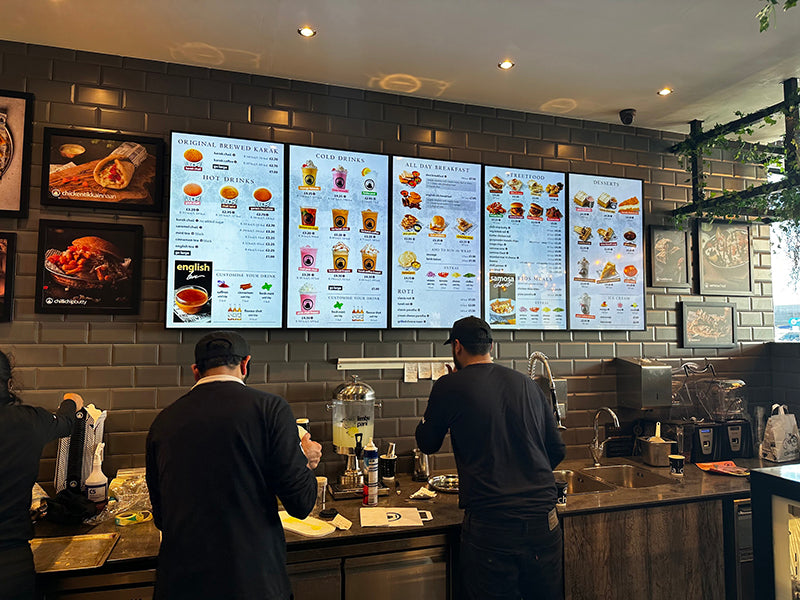

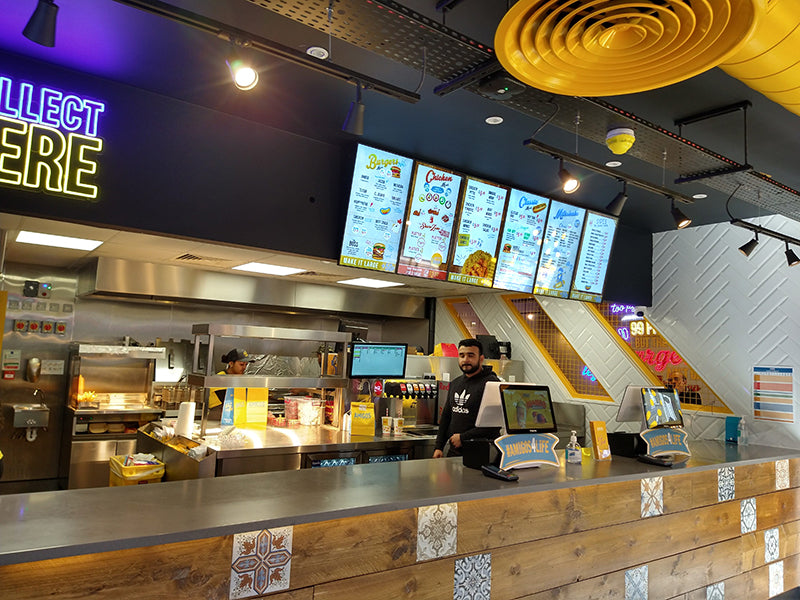

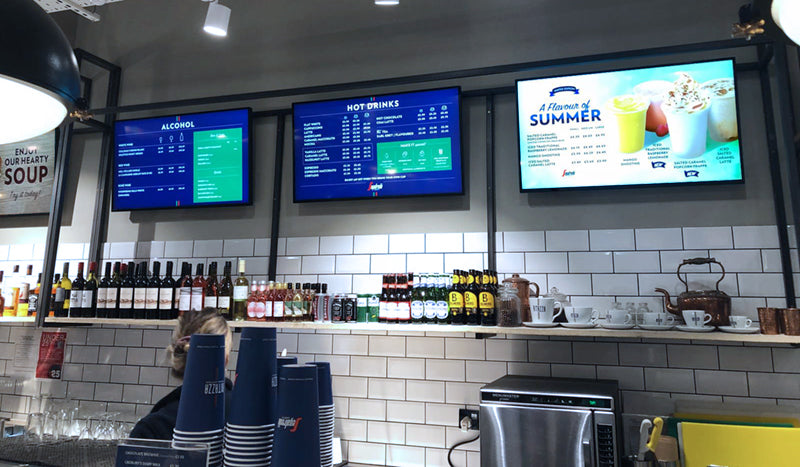

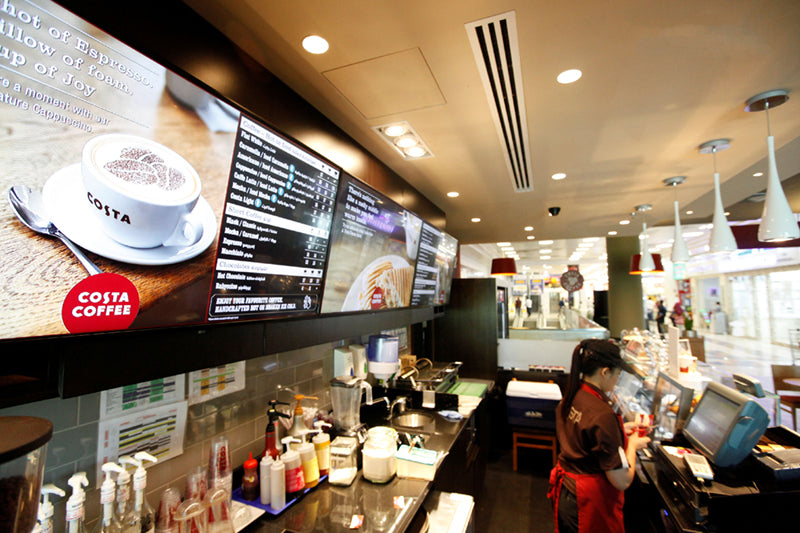

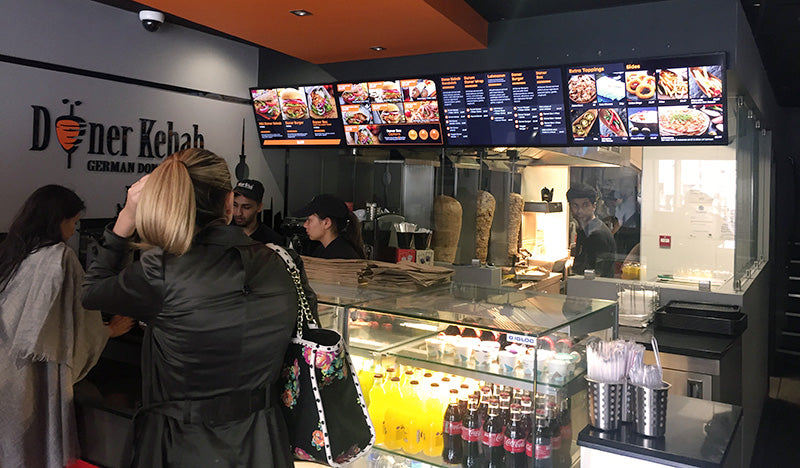

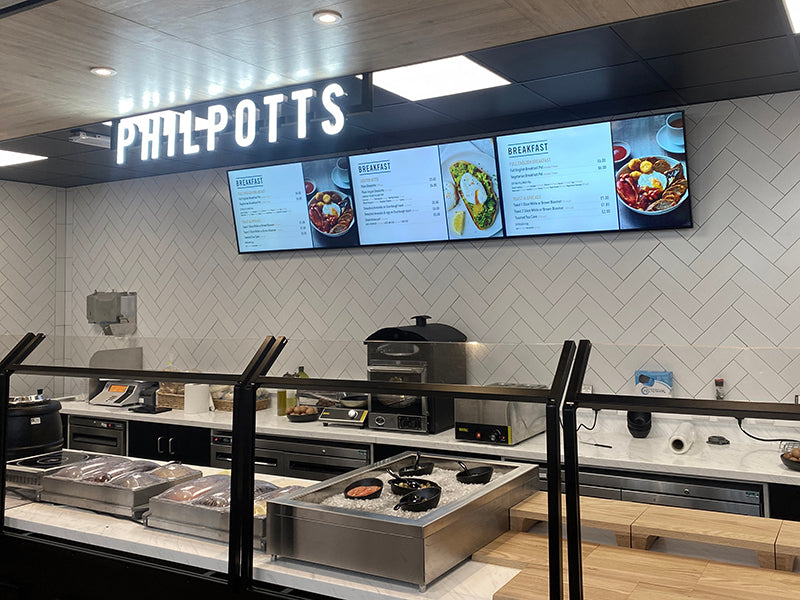

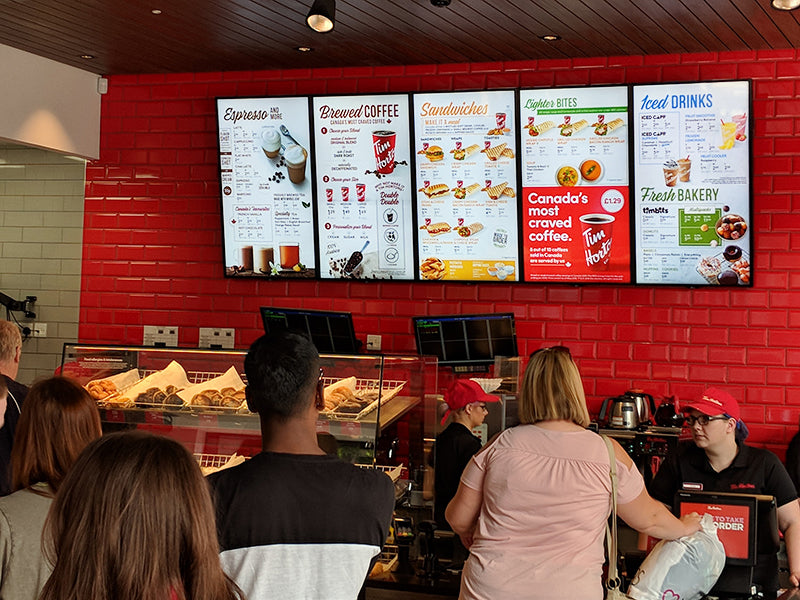

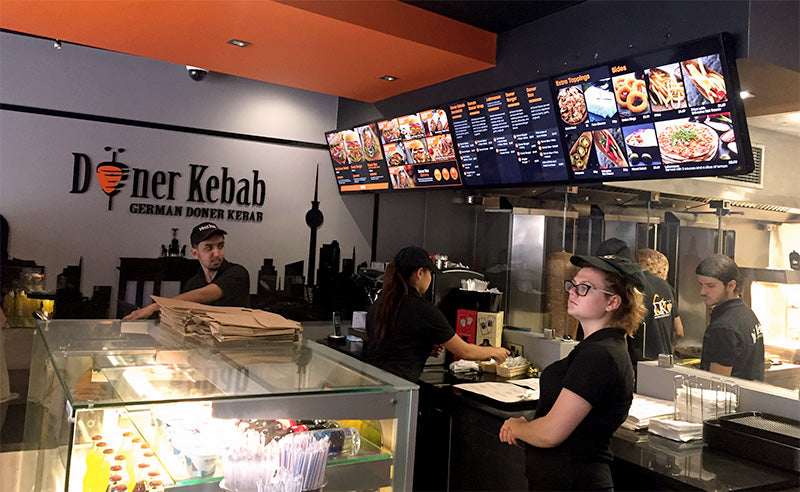

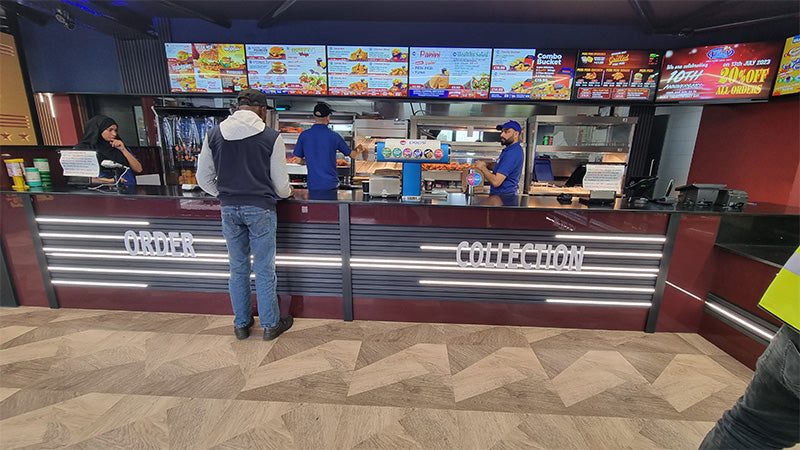

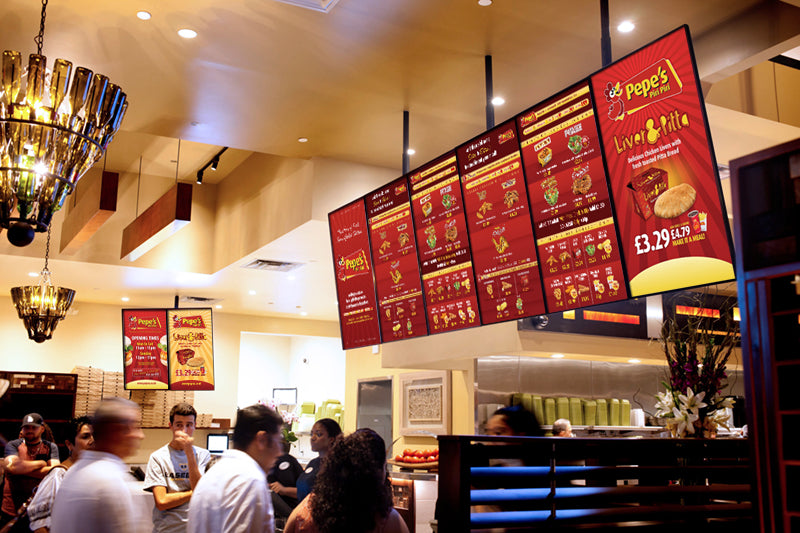

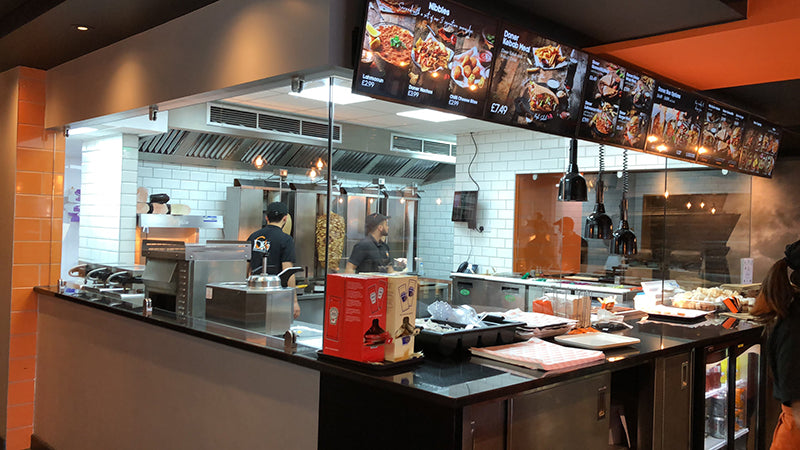

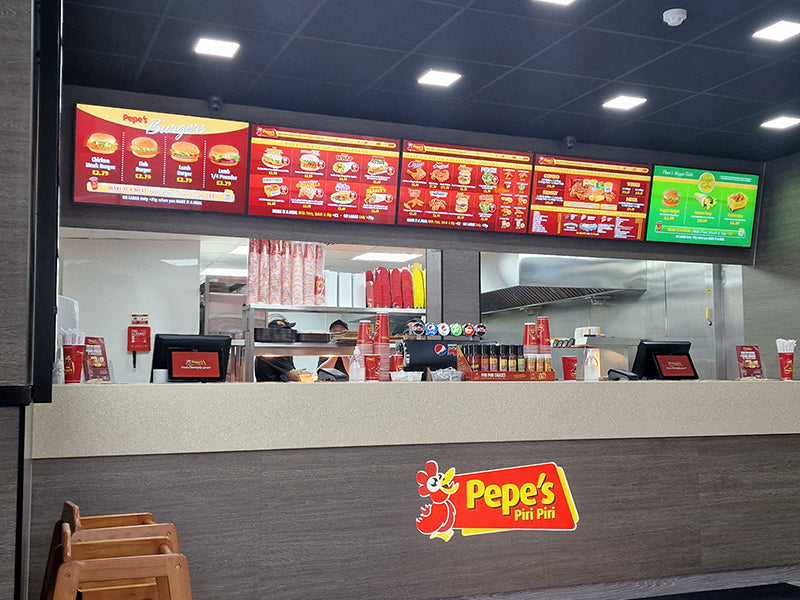

You can synchronise your Digital Menu Boards across multiple screens provided they are connected to the same network. This is ideal for menus above the counter.
24/7 Commercial Grade IPS Panel
With a commercial grade IPS panel with a brightness of 450cd/m² (twice the brightness of domestic televisions) this Digital Menu Board is able to reproduce and maintain the ultimate colour temperature for lifelike images even in the most challenging lighting environments. With a lifespan of over 70,000 hours the screen can be in use 24/7 with no loss in image quality. There are no external buttons or controls on the screen to avoid tampering.

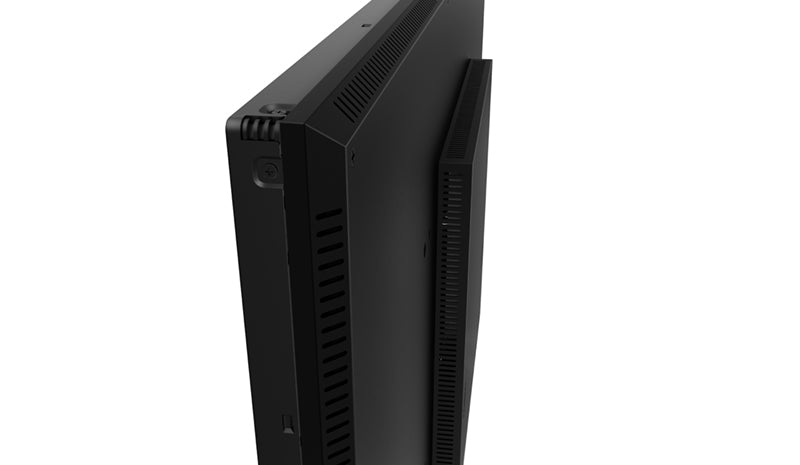

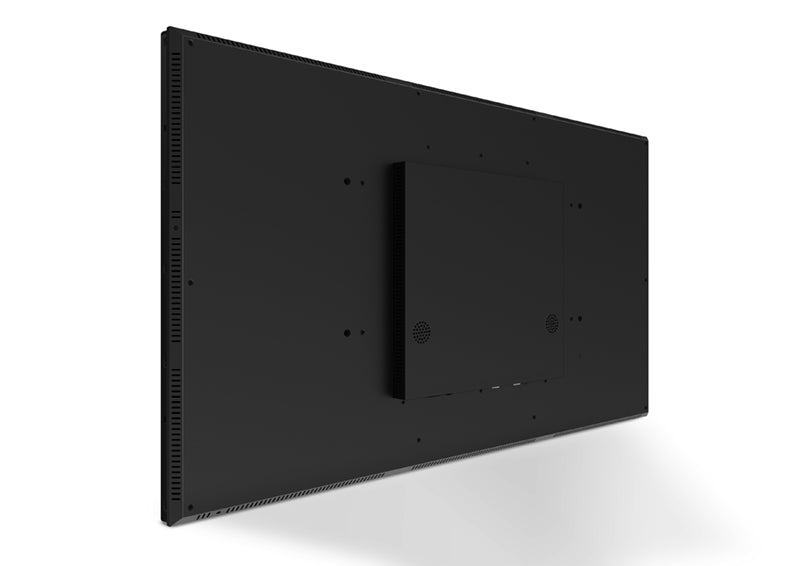

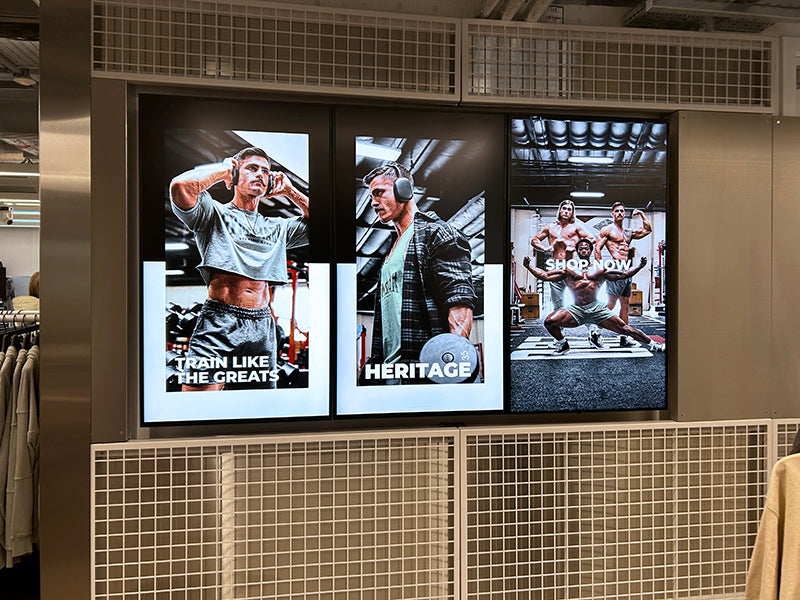

Narrow Bezel

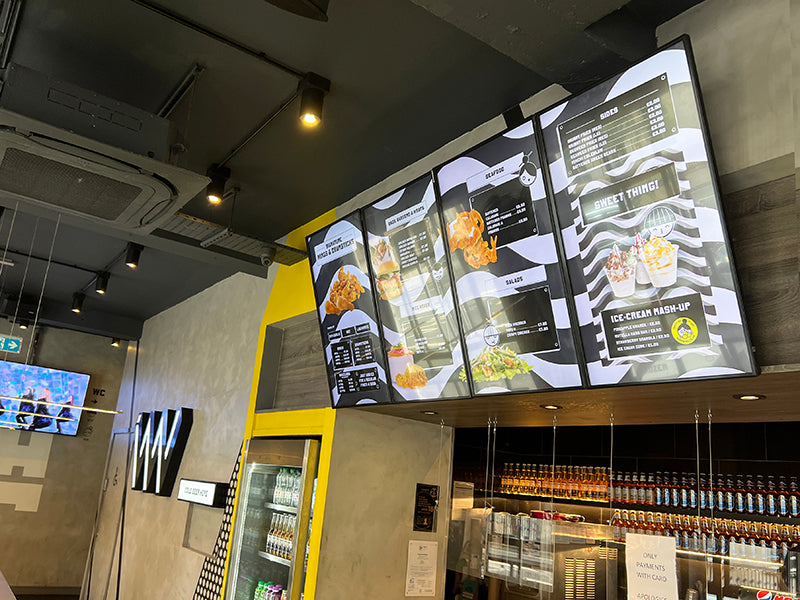

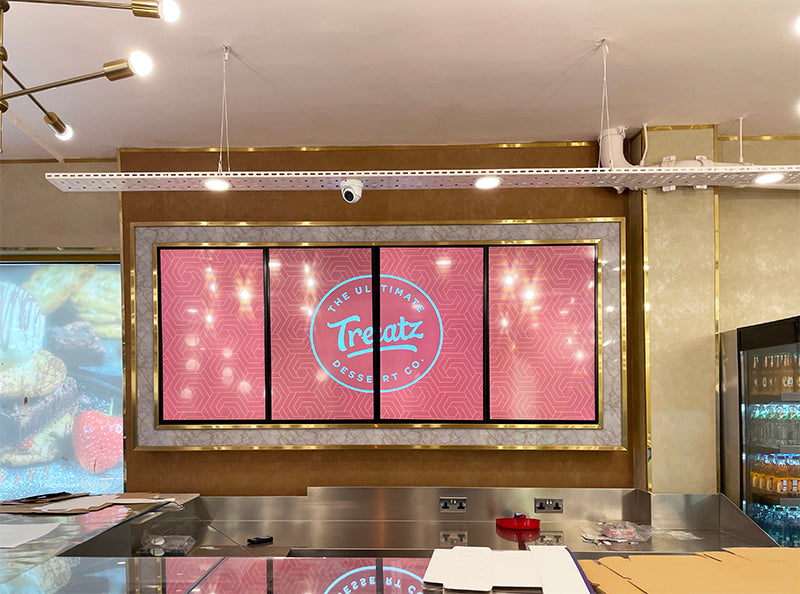

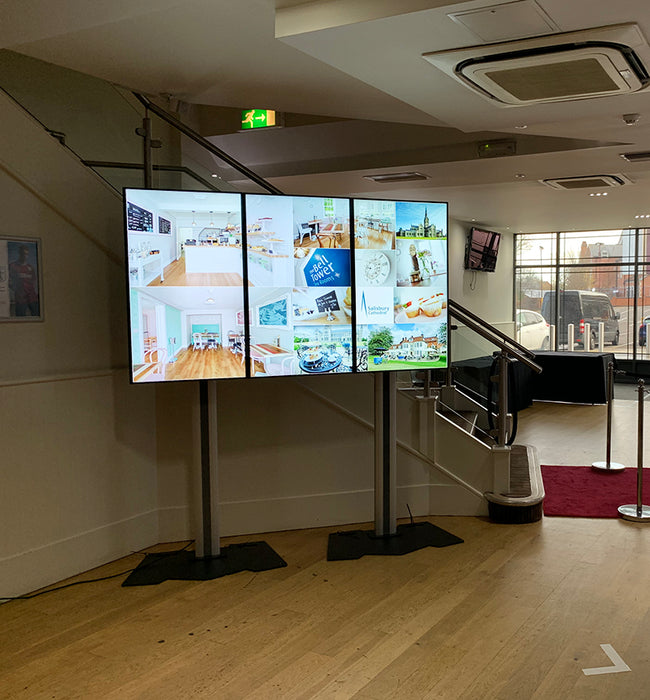

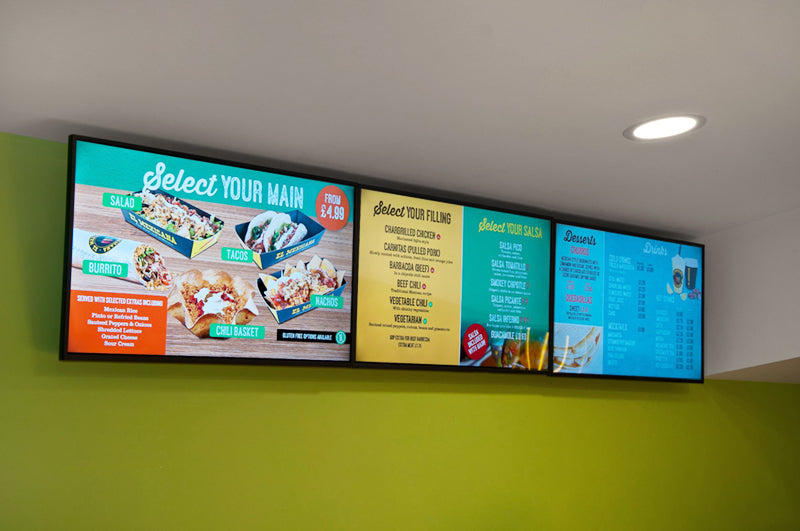

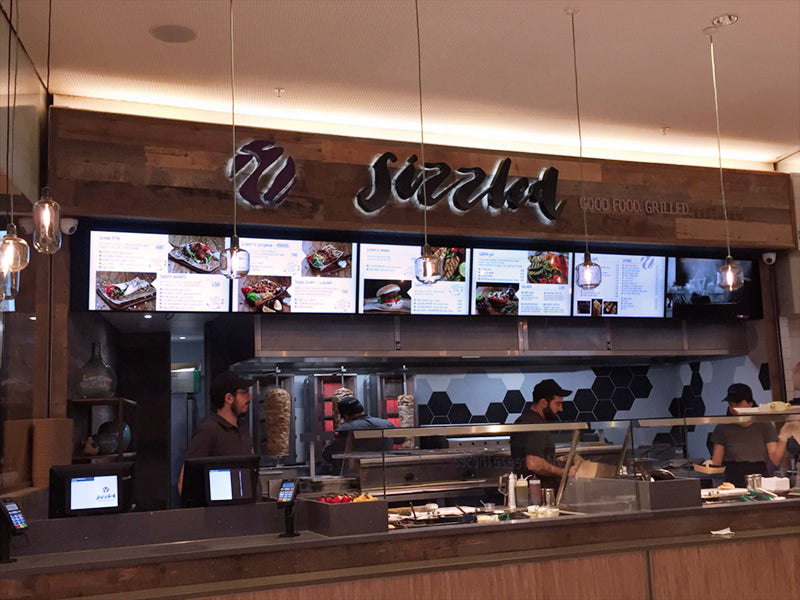

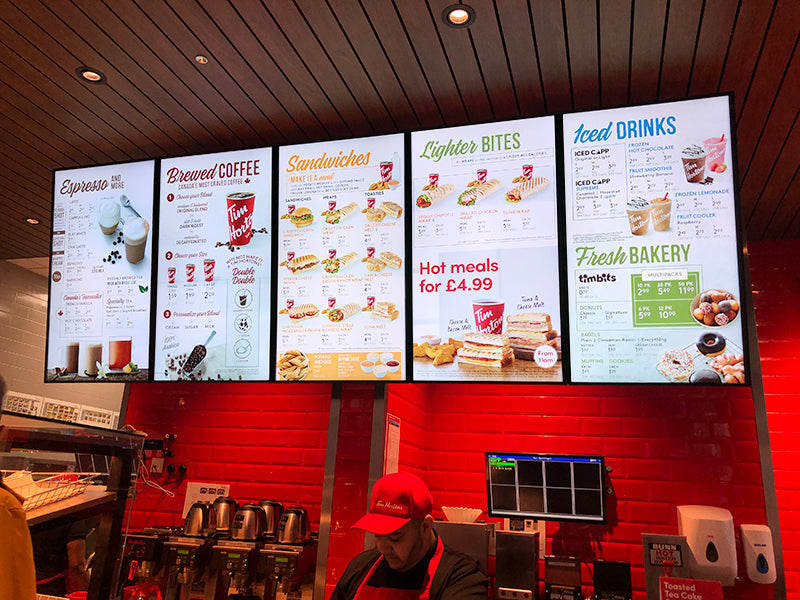

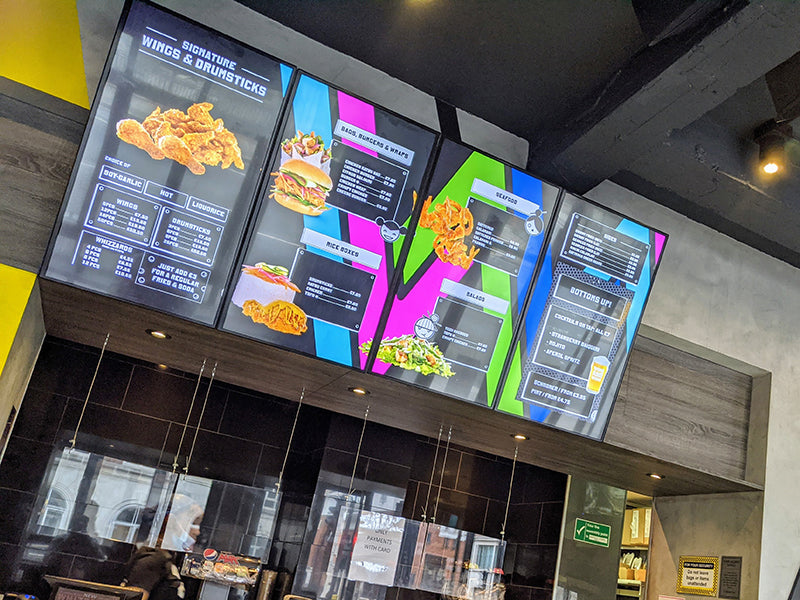

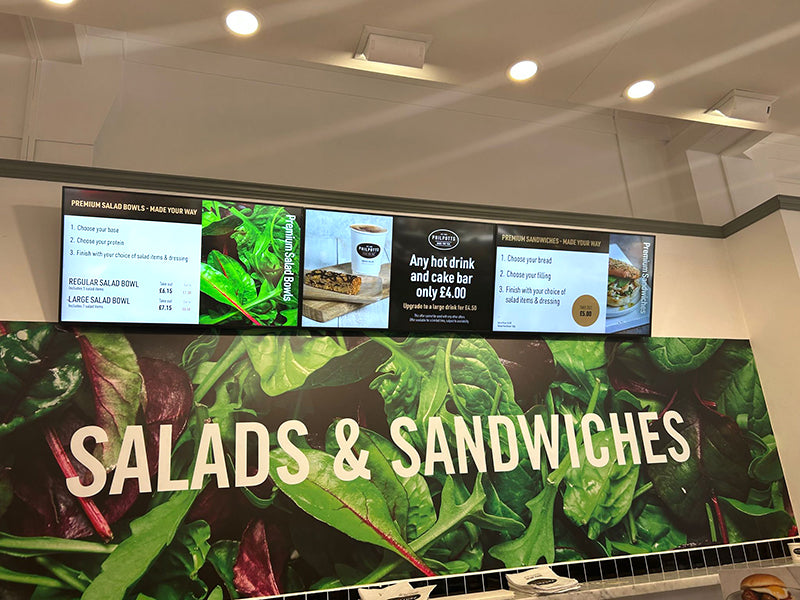

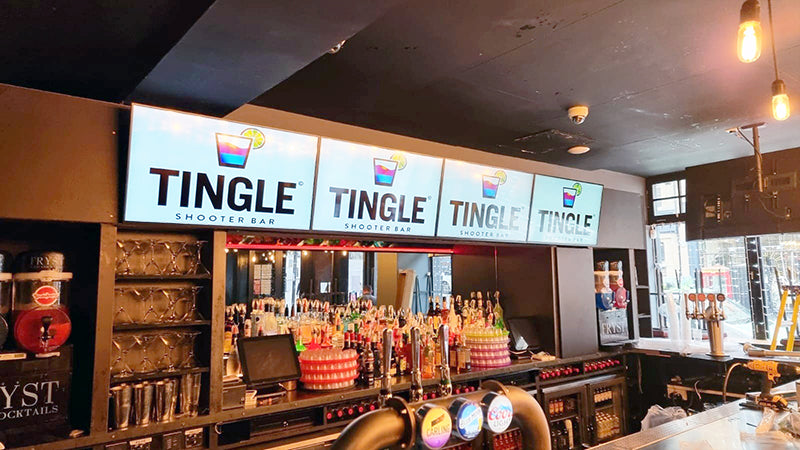

The narrow bezel on the Digital Menu Boards allows your menu to take centre stage. When multiple Digital Menu Boards are placed side by side there is a virtually seamless display thanks to their thinner edges and superior image precision.

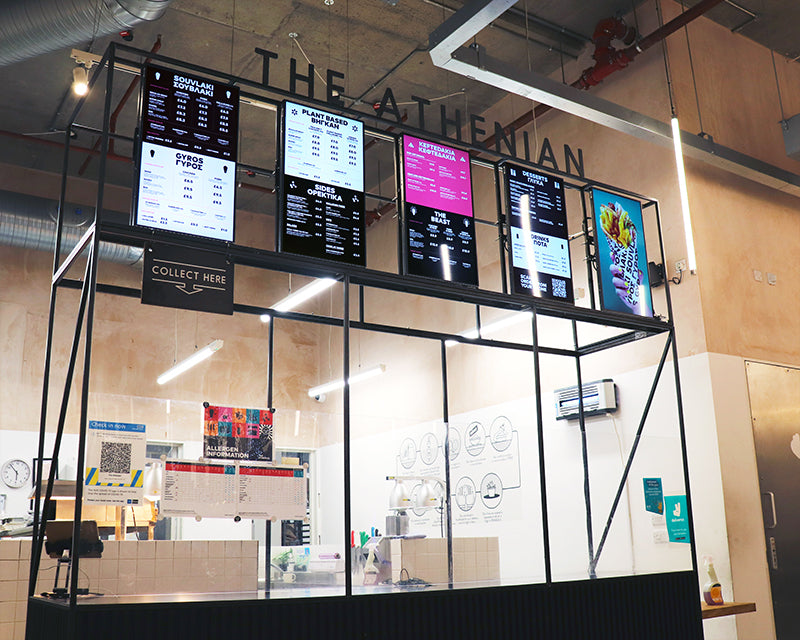

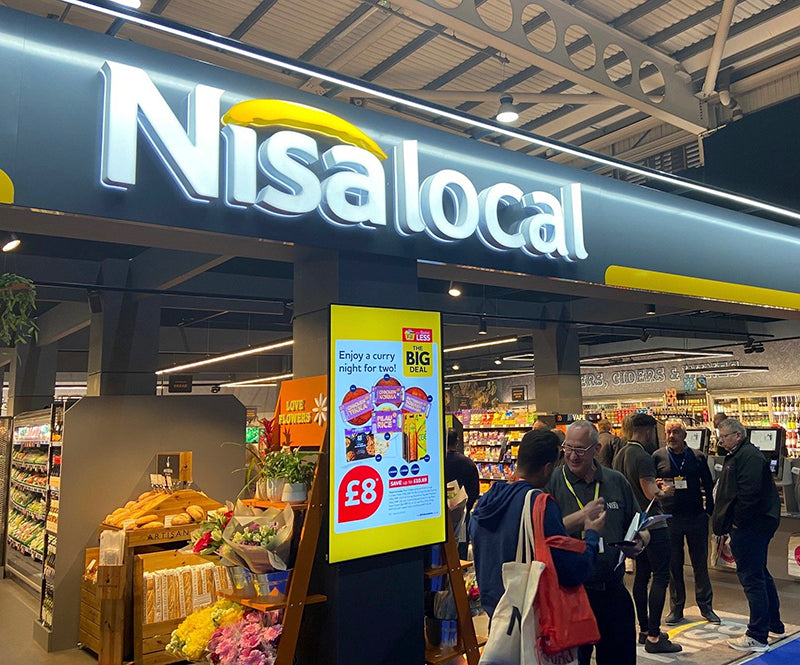

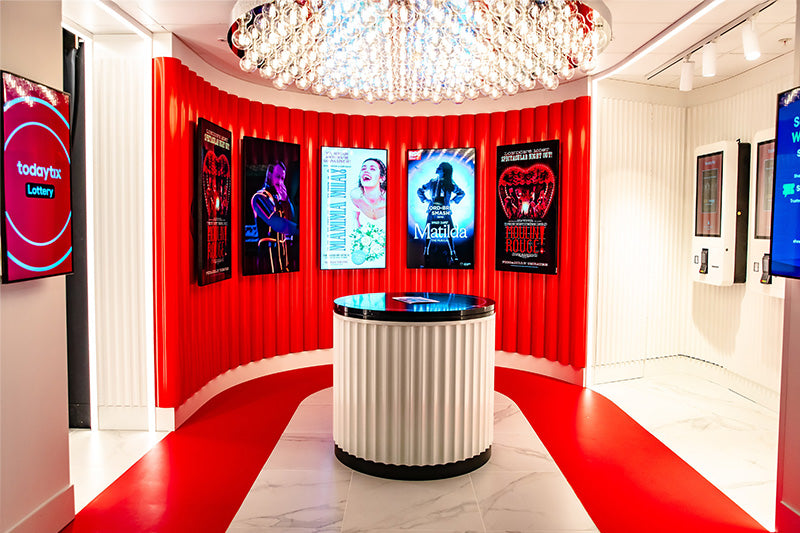

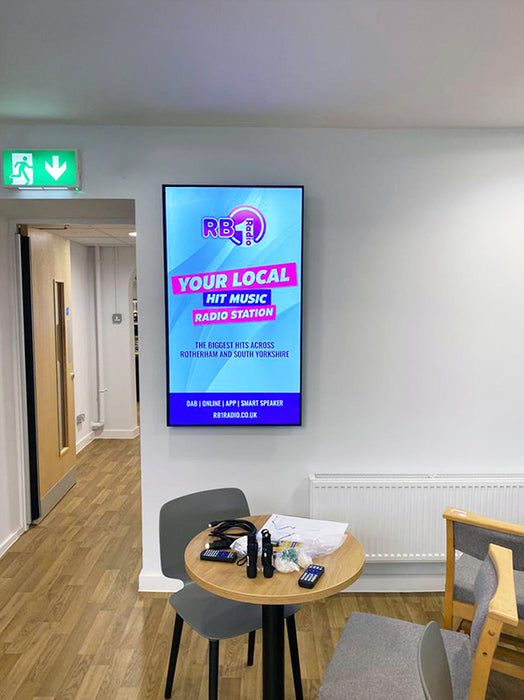

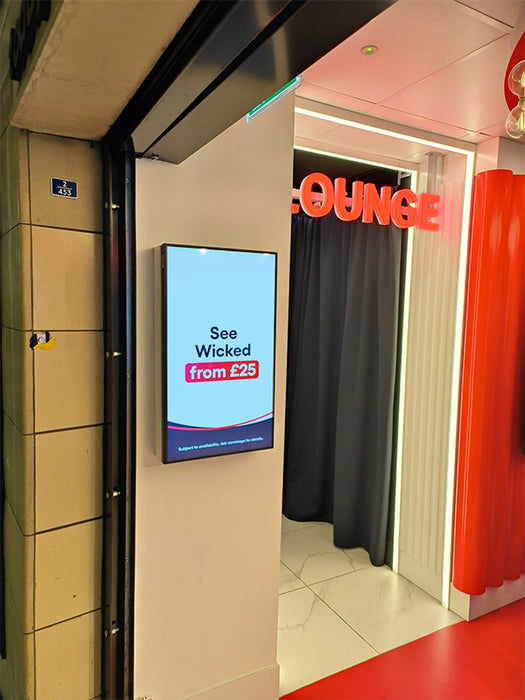

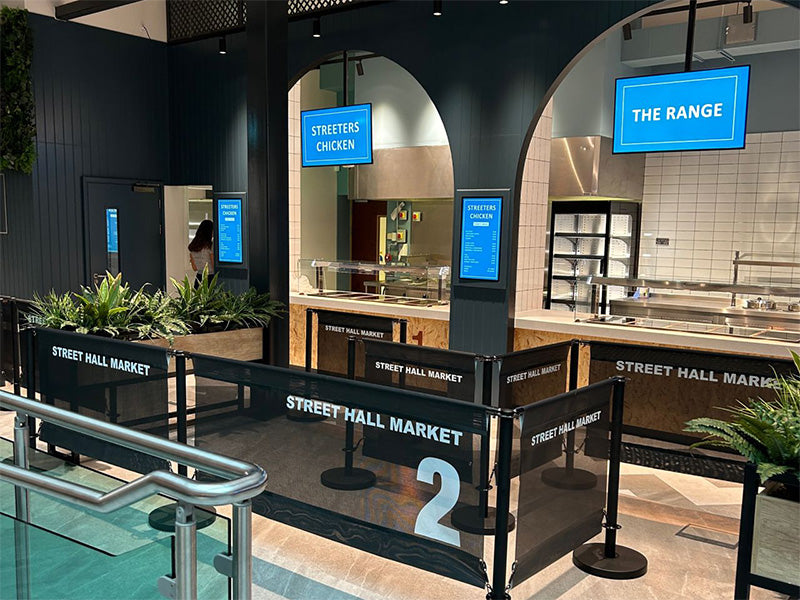

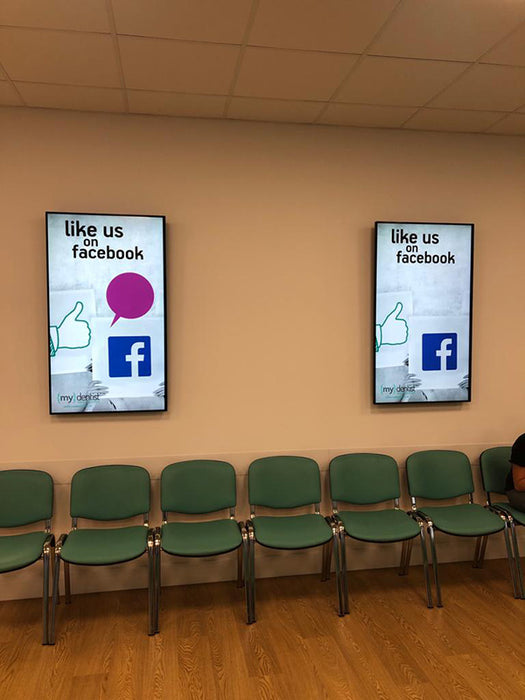

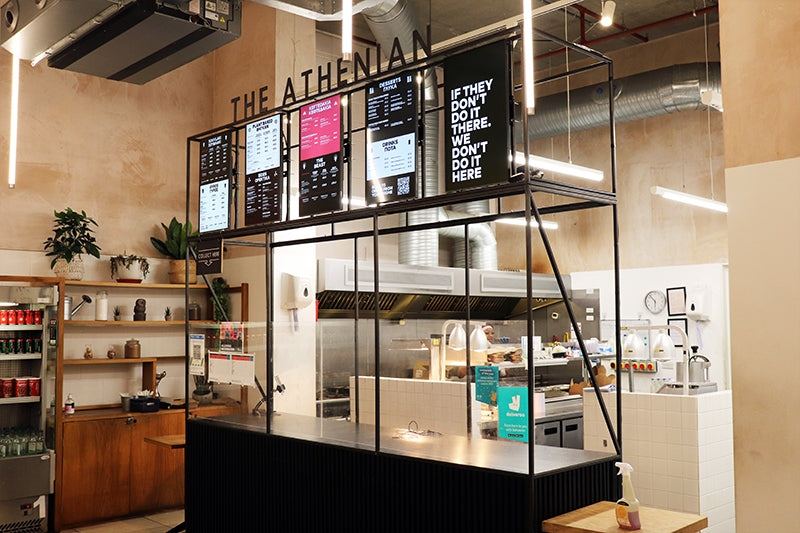

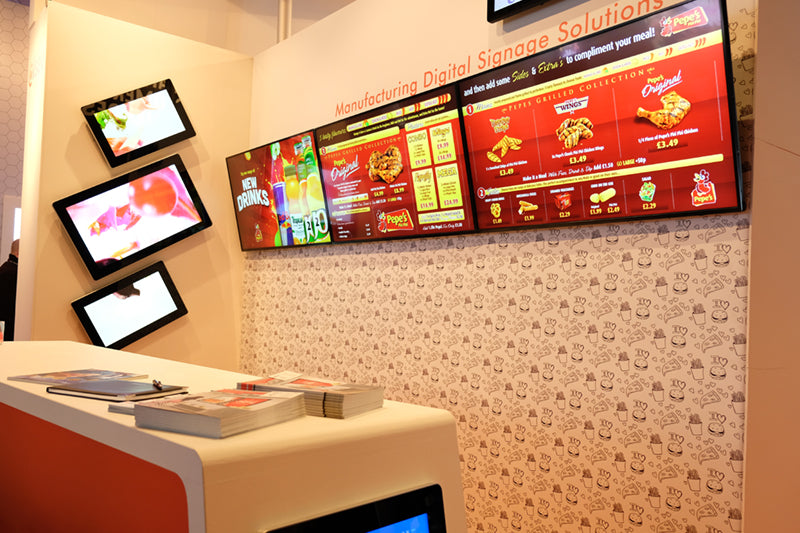

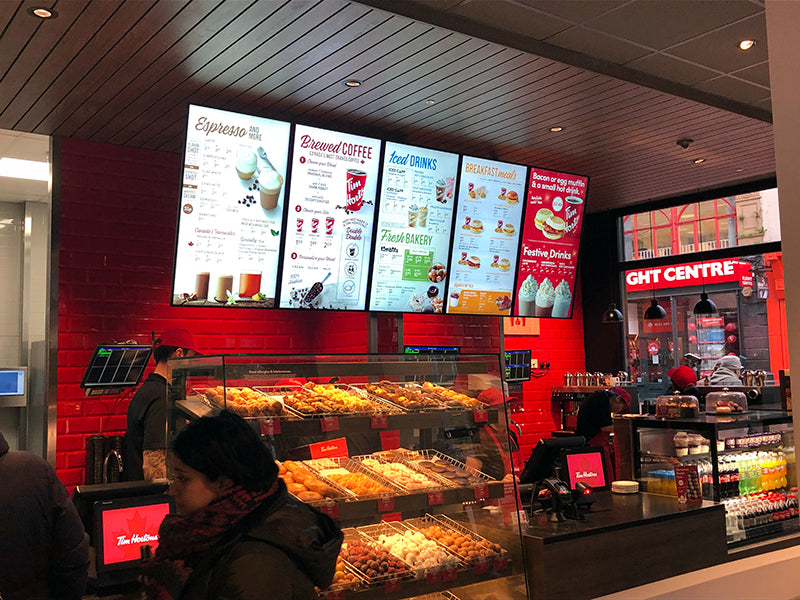

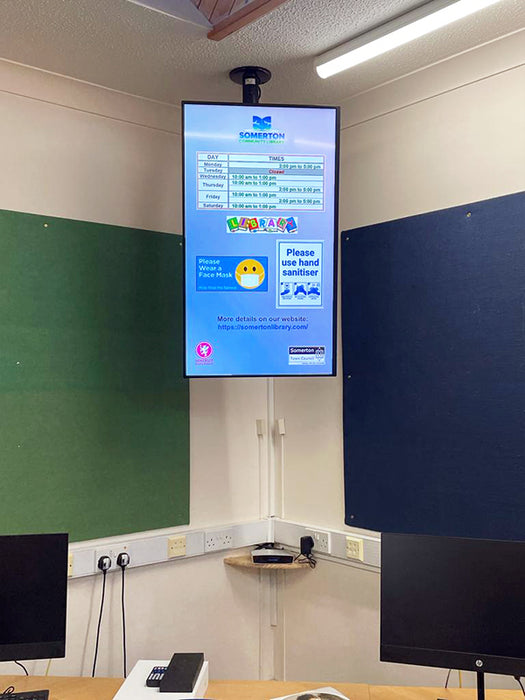

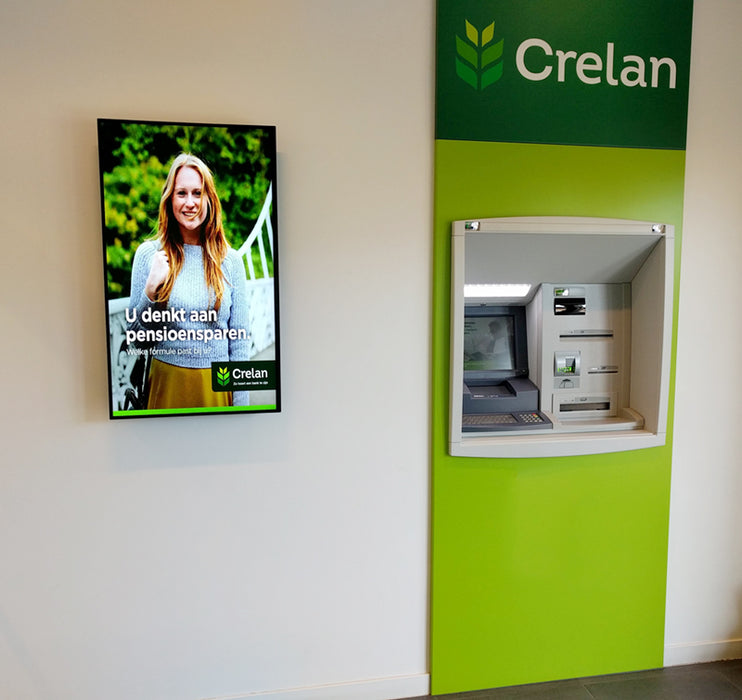

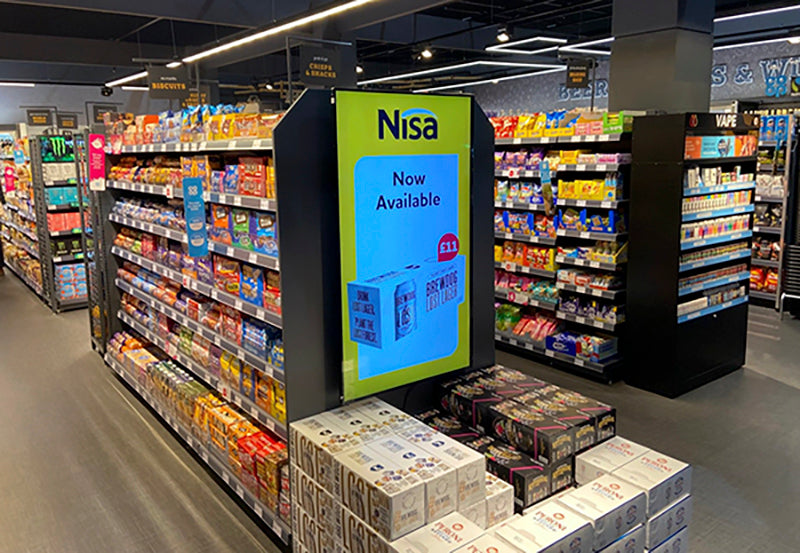

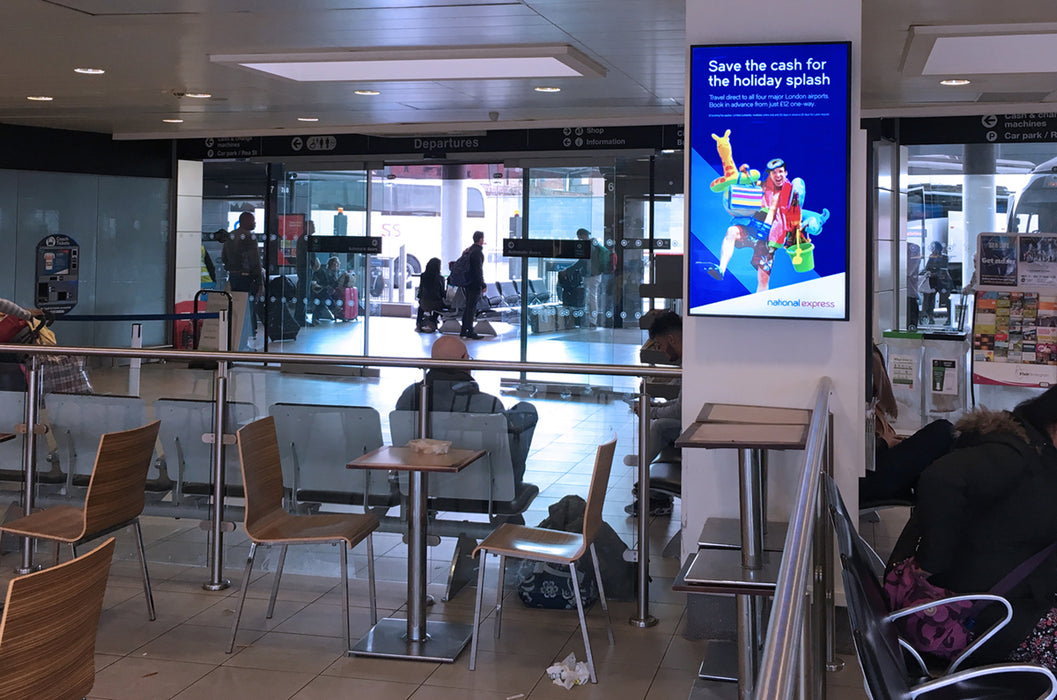

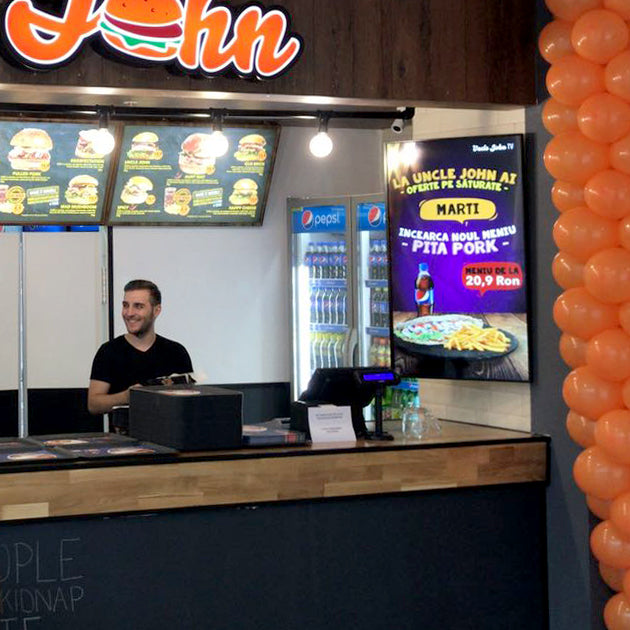

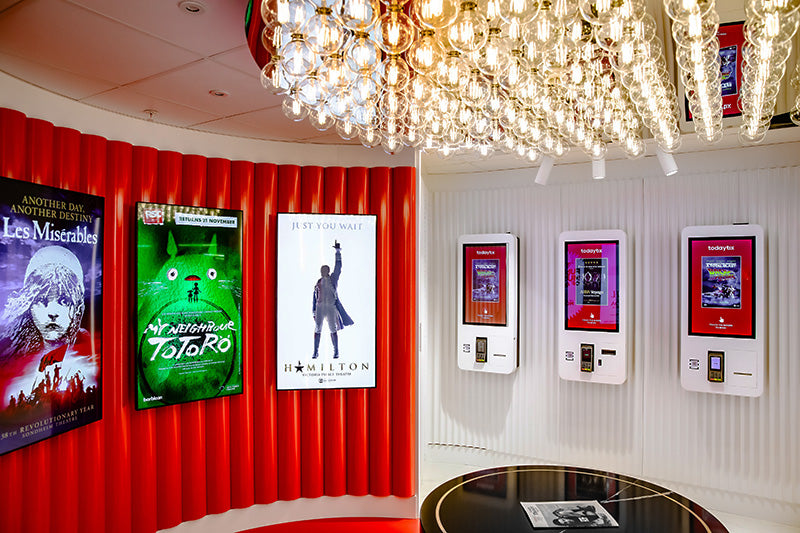

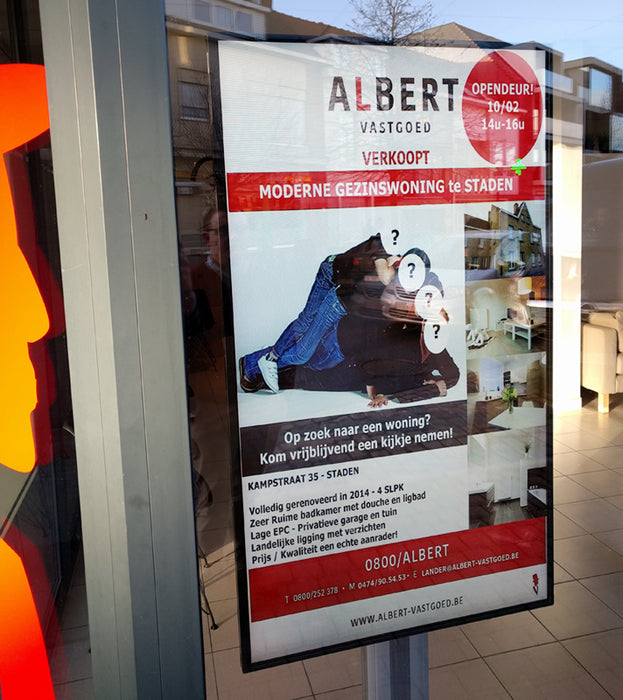

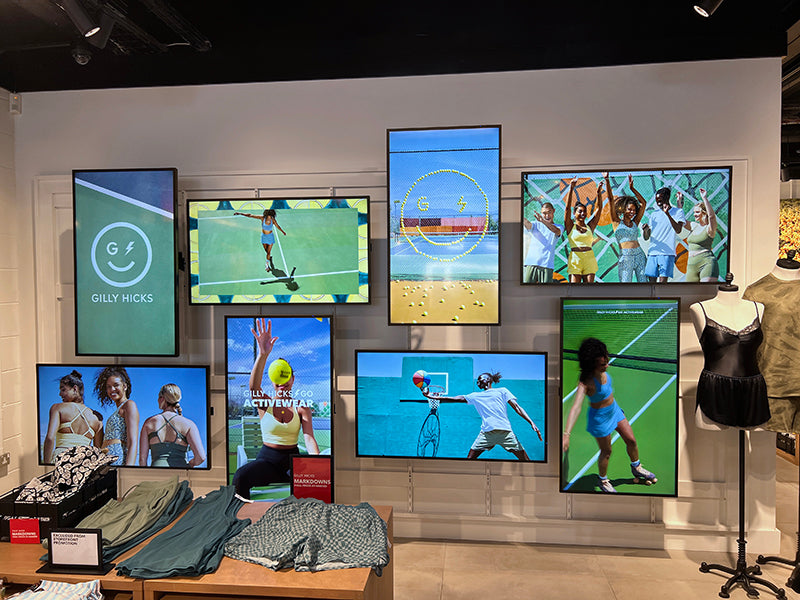

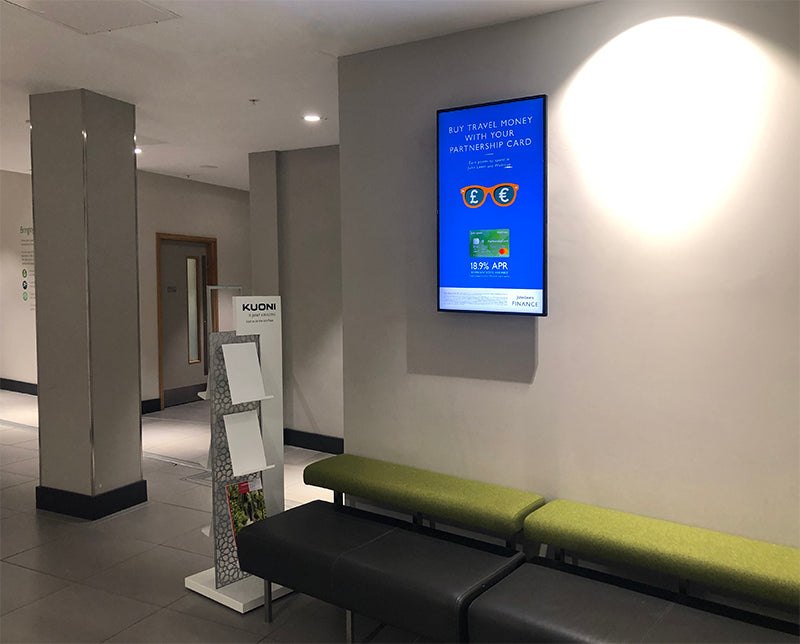

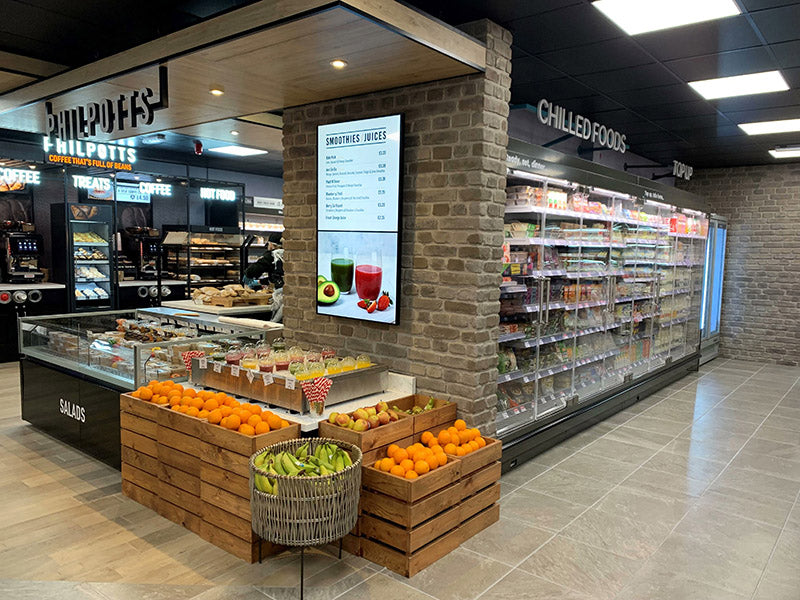

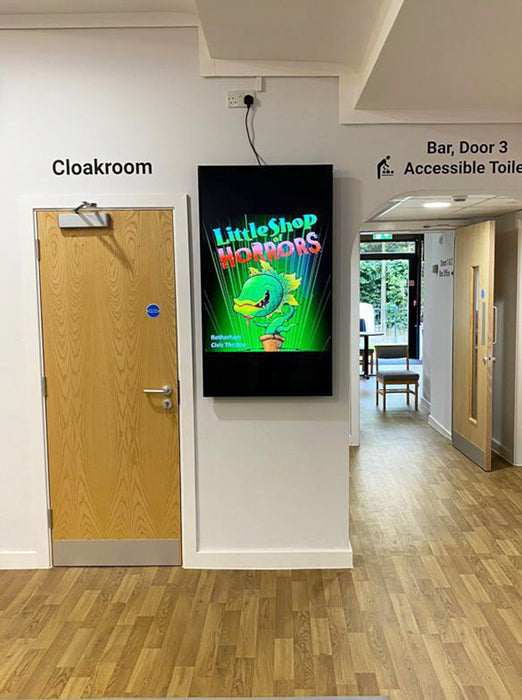

Portrait or Landscape

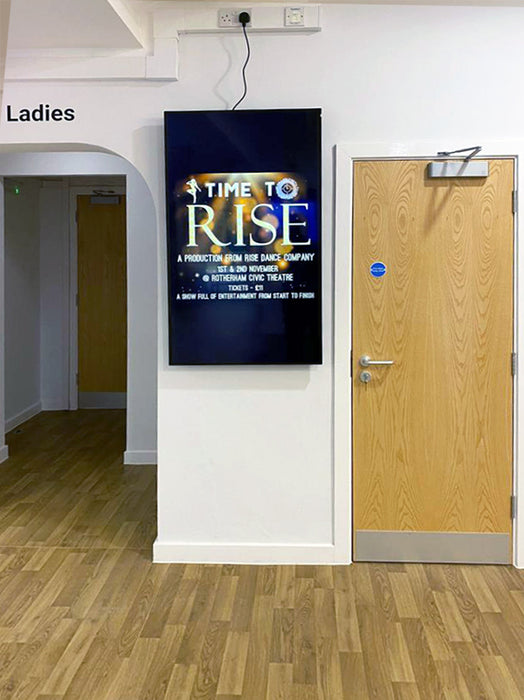

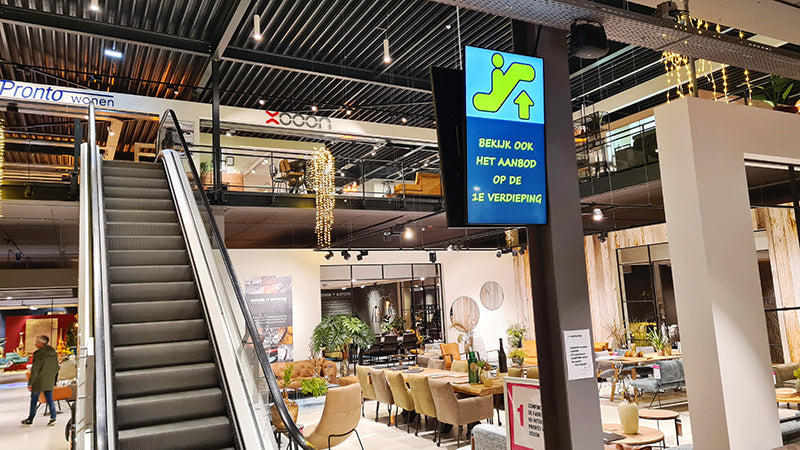

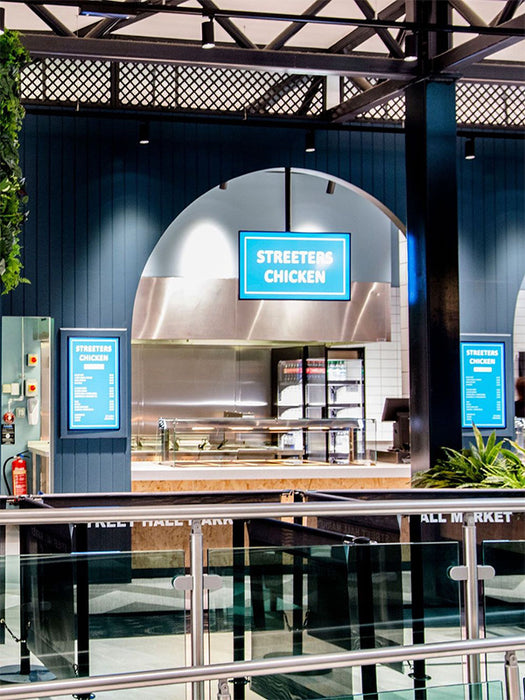

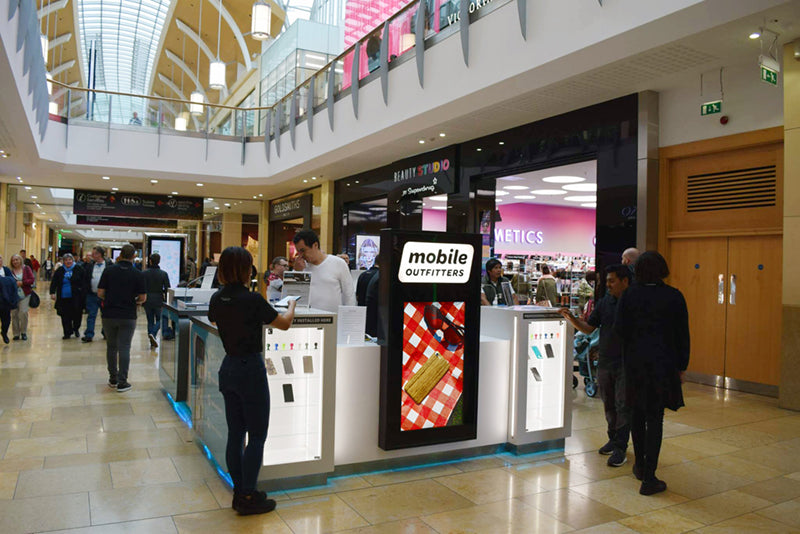

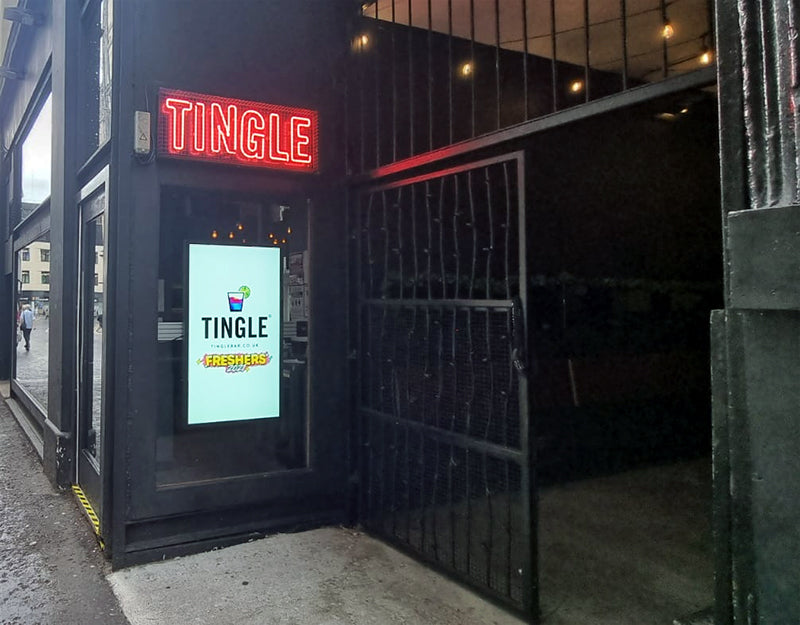

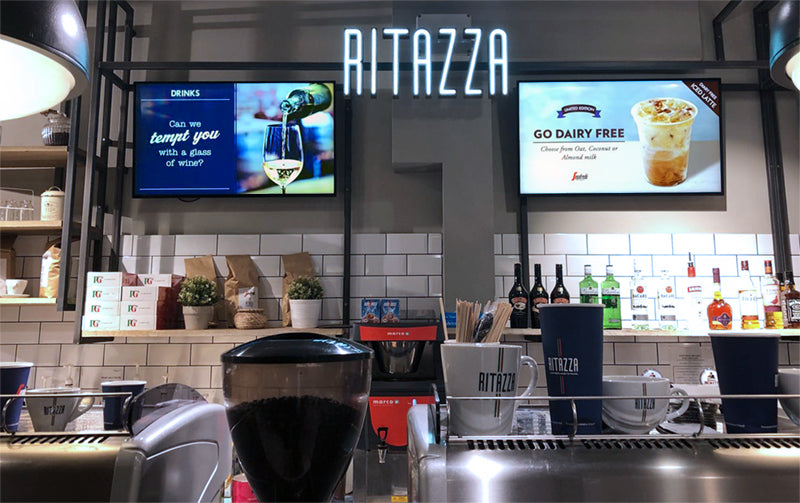

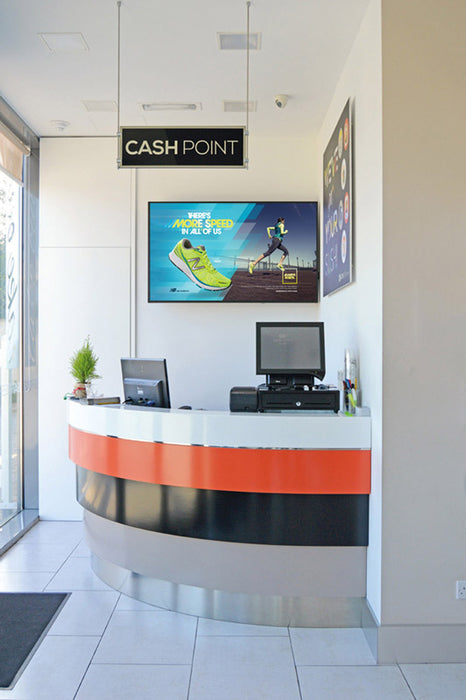

The screen can be used in either a landscape or portrait orientation depending on your requirement.
Integrated Speakers
The displays have two integrated speakers for applications that involve an audio element.
Plug and Play
If there is no internet access available the screen can still be updated thanks to their backup USB update option. Simply package up your Playlist onto a USB stick and insert into the screen. Your templates, schedule and content will now copy over and start playing.
Eco Power Timer
Allows for reduced power usage by automatically powering off in hours that the displays are not required. You can set daily or weekly On/Off times for your displays.
Scrolling Text Message
Display a ticker tape message or live RSS feed. From here you can adjust the font, size, colour, speed and direction of the text.
Feature | DM32D | DM43D | DM50D | DM55D |
---|---|---|---|---|
Display Area (mm) | 698.4 × 393 | 941.2 × 529.4 | 1073.8 × 604 | 1209.6 × 680.4 |
Unit Size (mm) | 716.2 × 415 × 45.95 | 963.6 × 557.9 × 46.1 | 1090.4 × 621.3 × 56.9 | 1232 × 708.9 × 50.4 |
Package Size (mm) | 870 × 565 × 170 | 1067 × 660 × 163 | 1238 × 760 × 195 | 1380 × 835 × 195 |
VESA Holes (mm) | 400 × 200 | 400 × 200 | 400 × 400 / 400 × 200 | 400 × 200 |
Net Weight | 8.6 kg | 11.25 kg | 23 kg | 18 kg |
Gross Weight | 11.8 kg | 15.2 kg | 28.9 kg | 25.95 kg |
Power Consumption | 38 W | 45 W | 55 W | 65 W |
Resolution | 1920 × 1080 (16:9) | |||
Brightness | 450 cd/m² | |||
Color | 16.7 Million | |||
Viewing Angle | 178° | |||
Contrast Ratio | 4000:1 | |||

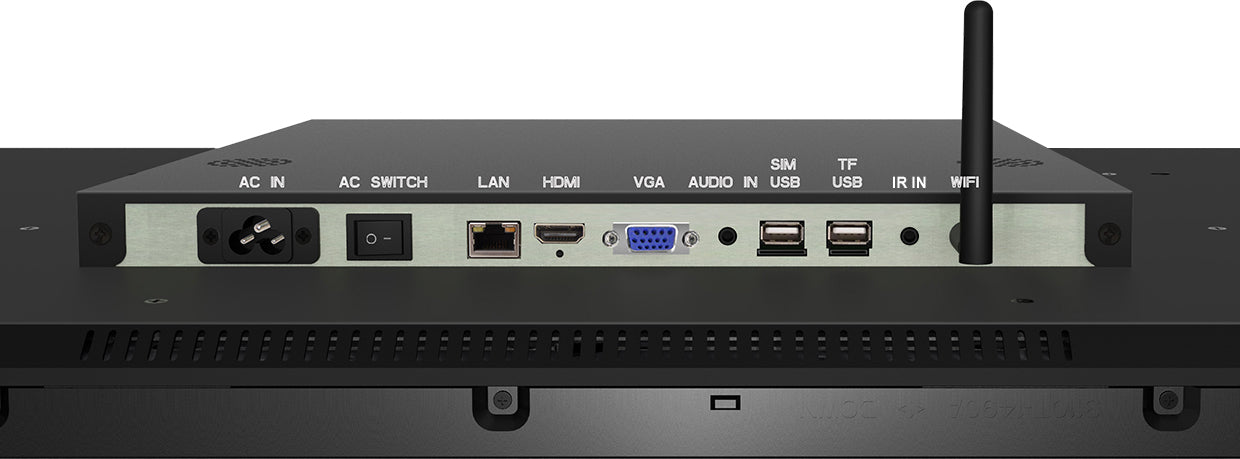

AV Inputs | HDMI, VGA, 3.5mm Audio | |||
Speakers | 2 × 5W, 8Ω | |||
Operating Temperature | 0°C to 50°C | |||
Storage Temperature | -30°C to 60°C | |||
Operating Humidity | 10% to 80% | |||
Storage Humidity | 5% to 95% | |||
Media Formats | Video: MPG, AVI, MP4, RM, RMVB, TS Audio: MP3, WMA Image: JPG, GIF, BMP, PNG |
|||
Media Resolution | 1920x1080 / 1080x1920 | |||
CPU | Quad-Core ARM Cortex A17, 1.6GHz | |||
GPU | Quad-Core ARM Mali-T764 | |||
RAM | DDR3 2GB | |||
USB | 1 × USB (OTG/HOST), 1 × USB (HOST) | |||
LAN | 100M/1000M Ethernet (Network Version Only) | |||
Wi-Fi | 802.11b/g/n (Network Version Only) | |||
Operating System | Android 7.1 | |||
Graphic Engine | OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1 | |||
Included Accessories | Scheduling Software, Remote Control, User Manual | |||
Optional Accessories | Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand |
32" Network Digital Menu Boards - Spec Sheet | Download |
43" Network Digital Menu Boards - Spec Sheet | Download |
50" Network Digital Menu Boards - Spec Sheet | Download |
55" Network Digital Menu Boards - Spec Sheet | Download |
32" Network Digital Menu Boards - Technical Drawing | Download |
43" Network Digital Menu Boards - Technical Drawing | Download |
50" Network Digital Menu Boards - Technical Drawing | Download |
55" Network Digital Menu Boards - Technical Drawing | Download |
Network Digital Menu Boards - User Manual | Download |
