Versatile Elongated Screens for Unique Spaces
28" and 37" Ultra Wide Stretched Bar Displays

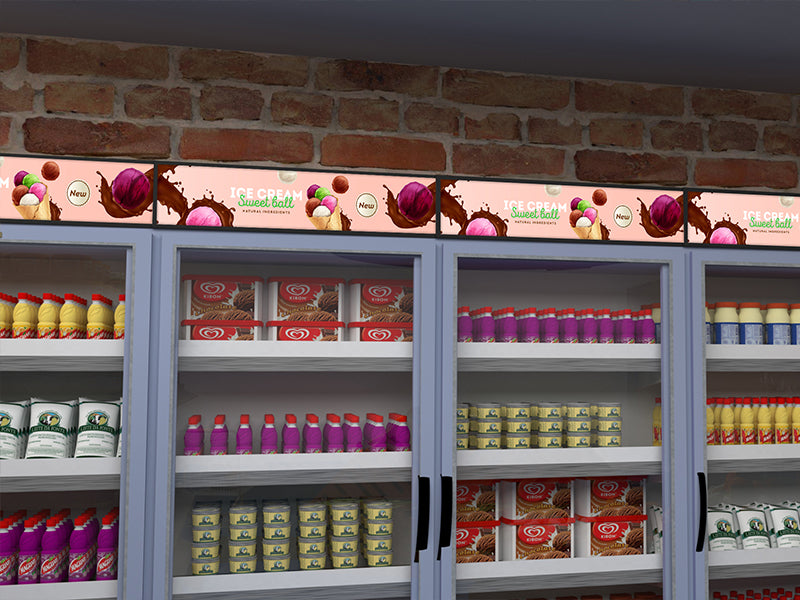

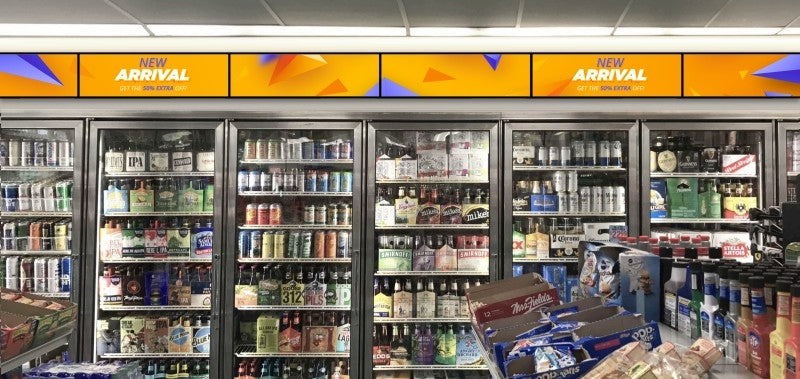

Perfect as a banner-style endcap display in retail stores and supermarkets
Versatile Retail Solution
Whether being used as part of an end-aisle display or as a unique individual screen, this solution offers a versatile range of possible applications. The flexibility of portrait or landscape use and the ultra-wide aspect ratio make them the perfect accompaniment for our LCD Shelf Edge Displays.
Synchronise Multiple Displays
The multi-screen synchronisation function allows you to place multiple displays side-by-side and run attention-grabbing content seamlessly across the entire promotional endcap.
*28" Model Only
Streamlined Enclosure
Designed to maximise the impact of content, these displays feature a sleek, narrow bezel. This is especially important when placing multiple screens together. The compact design also adds to the aesthetic and reduces strain on shelf edges.
High Brightness
Ideal for brightly-lit retail spaces, these displays feature 700cd/m² (28” model) and 1,000 cd/m² (37” model) commercial grade high brightness panels – certain to make your content really stand out.

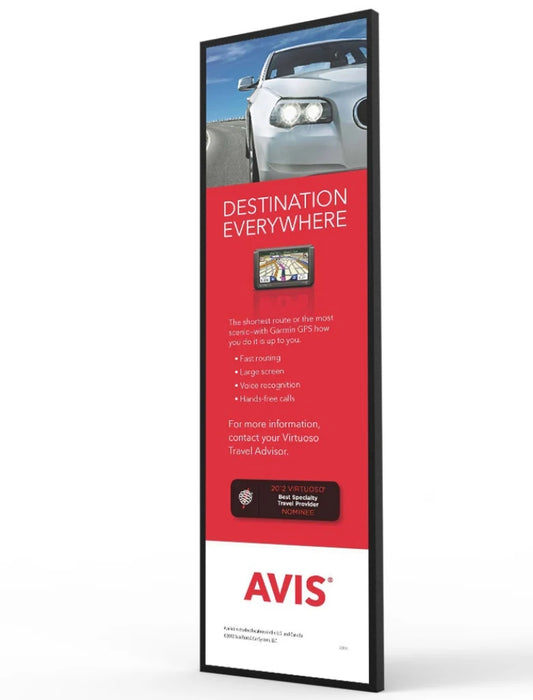

IPS Panel
Ideal for portrait use, commercial grade IPS panels guarantee incredible image quality and colour depth at an ultra-wide viewing angle in any direction without any fall-off in colour accuracy.
Clear HD Resolution
Unlike DV-LED stretched displays, this solution uses a full HD LCD panel to provide a clear image and fine details. This high resolution is essential to be able to read text at close proximity and also produces the best results when showing video.
Free Network Upgrade
These displays come with a free upgrade to unlock network CMS functionality. The built-in Android media player also allows you to easily update the screen via USB plug and play or using third-party software if necessary.
24/7 Commercial Grade
Designed for supermarkets and other retail spaces, these displays utilise a commercial grade LCD panel, LED backlight and internal components. This means they can run constantly 24/7 for over 70,000 hours.
Multiple Inputs
If you need to use the screen as a monitor, you can connect it to an external source, such as a third-party PC or media player, using the HDMI or VGA and 3.5mm audio jack inputs.
Model | 28 Inch - WS28HD8-B | Resolution | 1920x360 |
Display Area | 702x134 | Aspect Ratio | 16:3 |
Brightness | 700cd/m² | Contrast Ratio | 1,200:1 |
Unit Size | 738x171x47 | Package Size | 877.1x308.6x128 |
VESA Pattern | 75x75 | Net Weight | 5.1Kg |
Gross Weight | 6.7Kg | Power Consumption | <30W |
Model | 37 Inch - WS37HD8 | Resolution | 1920x540 |
Display Area | 919.3x259.55 | Aspect Ratio | 32:9 |
Brightness | 1,000cd/m² | Contrast Ratio | 1,000:1 |
Unit Size | 954.5x291.5x51.5 | Package Size | 1055x390x220 |
VESA Pattern | 100x100 | Net Weight | 8Kg |
Gross Weight | 9Kg | Power Consumption | 36W |
Colour | 16.7M | Viewing Angle | 89° |
Video Inputs | HDMI, VGA | Audio | 3.5mm Audio Socket |
Operating Temp | 0°C to 40°C | Storage Temp | -10°C to 60°C |
Operating Humidity | 10% to 85% | Storage Humidity | 5% to 95% |
Media Formats | Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG) | ||
CPU | Quad-Core ARM Cortex A17, 1.6GHz | GPU | Quad-Core ARM Mali-T764 |
RAM | DDR3 2GB | Storage | 8GB eMMC |
USB | 1 x USB (OTG/HOST), 1 x USB (HOST) | LAN | 100M/1000M Ethernet (Network Only) |
Wi-Fi | 802.11b/g/n | Bluetooth | Bluetooth 4.0 |
OS | Android 7.1 | Graphic Engine | OpenGL ES 1.1–3.1, OpenCL 1.1, Renderscript, Direct3D 11.1 |
Included Accessories | Scheduling Software, Remote Control, User Manual, Wall Mount | ||
Optional Accessories | Network Upgrade, Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand |
28 Inch Ultra-Wide Stretched Bar Displays - Data Sheet | Downloads |
37 Inch Ultra-Wide Stretched Bar Displays - Data Sheet | Downloads |
28 Inch Ultra-Wide Stretched Bar Displays - Technical Drawing | Downloads |
37 Inch Ultra-Wide Stretched Bar Displays - Technical Drawing | Downloads |
Ultra-Wide Stretched Bar Displays - User Manual | Downloads |
