Expand commercial space with compact display
Get the most out of every space with Samsung QB24C small digital signage. The compact display provides sharp messaging with its Full HD resolution. Its enhanced internal solutions and intuitive home screen UX make it easy to use, also ensuring reliable performance for any business use.
Hold sizable opportunities in small spaces
Compact Design

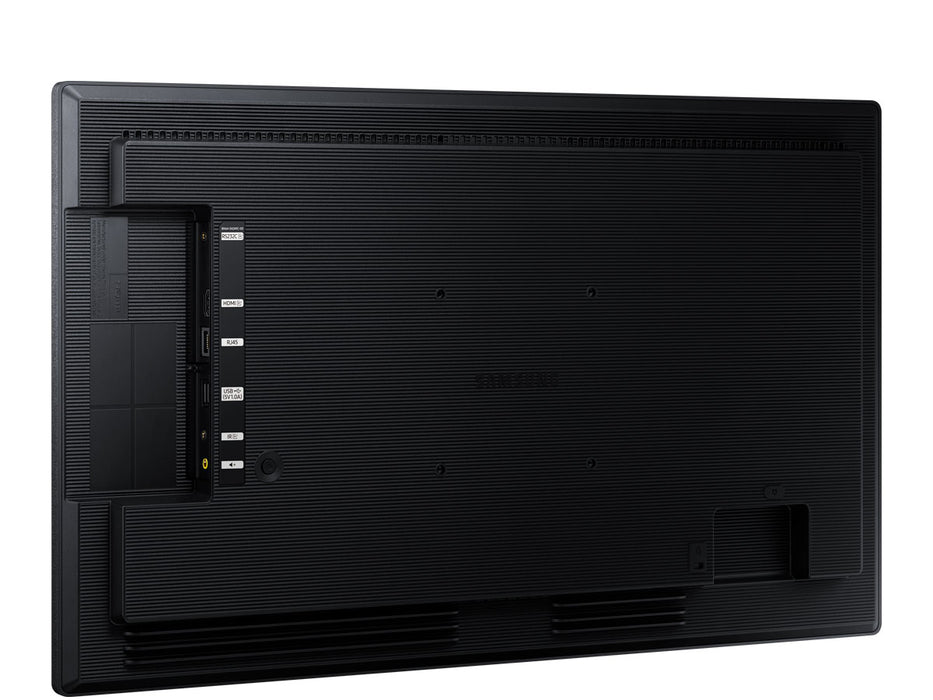

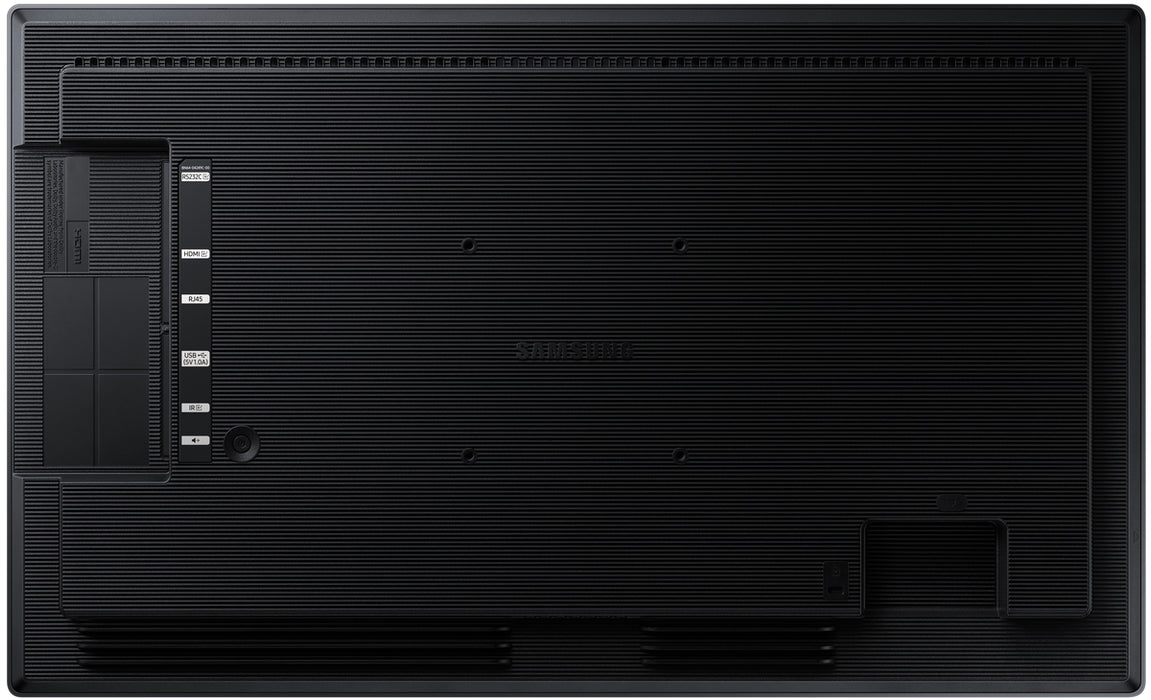

The compact design of the QB24C allows for efficient space utilization, even in compact locations. A sleek rear design makes the display optimal for wall mounting while the connectivity, content play and device controls are easy to operate.

Connect with convenience
Home UI
QB24C boasts greater usability with an upgraded home screen UI. Popular categories like Features, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.
Convenient, clean display control
Center IR
With center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cable extension. Built-in Wi-Fi allows wireless remote management for both content and display.

Safe operation, reliable performance
IP5X / EMC Class B
QB24C is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, the display's IP5x rating underscores its robust durability even in dusty environments.
Change the way to manage your display
Samsung VXT
Samsung VXT is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content without the need for training.
| Diagonal Size | 23.8" | Panel Type | ADS |
| Resolution | 1920 x 1080 | Pixel Pitch (H×V) | 0.2745 × 0.2745 mm |
| Brightness (Typical) | 250 nits | Contrast Ratio | 1,000:1 |
| Viewing Angle (H/V) | 178° / 178° | Response Time | 14 ms |
| Color Gamut | 72% NTSC | Haze | 25% |
| H Scan Frequency | 56 ~ 84.5 kHz | V Scan Frequency | 48 ~ 75 Hz |
| Max Pixel Frequency | 148.5 MHz | Dynamic Contrast | Mega |
| Operation Time | 16 / 7 | HDMI Input | 1 |
| HDMI Version | 1.4 | DP Input | No |
| HDCP Version | 2.2 | USB Ports | 1 |
| IR Input | Yes | Audio Input | No |
| Audio Output | Stereo Mini Jack | RS232 Input | Yes |
| RJ45 Input | Yes | Wireless | Wi-Fi, Bluetooth |
| Power Supply | AC 100–240V, 50/60Hz | Power Consumption (On) | 38.5 W |
| Power Consumption (Sleep) | 0.5 W | Set Dimensions (W×H×D) | 547.9 × 334.4 × 31.8 mm |
| Package Dimensions (W×H×D) | 620 × 419 × 122 mm | Set Weight | 3.0 kg |
| Package Weight | 4.1 kg | Operating Temperature | 0°C ~ 40°C |
| Operating Humidity | 10 ~ 80%, Non-condensing | VESA Mount | 100 × 100 mm |
| Bezel Width | Top/Bottom: 17.9 mm, Left/Right: 9.4 mm | Frame Material | Non-Glossy |
| Stand | No | Operating System | Tizen 7.0 |
| Flash Memory | 8 GB | EMC | Class B |
| Safety | 60950-1, 62368-1 |
| Description | Downloads |
|---|---|
| Samsung QB24C 24″ FHD Smart Digital Signage Display with Tizen OS Quick Setup Guide | Download |
