Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen.

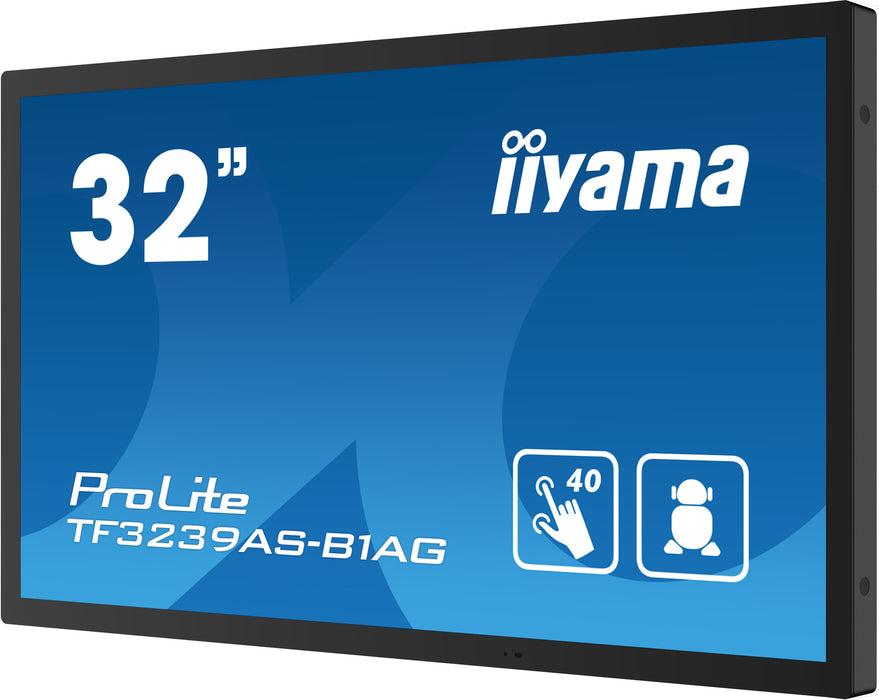

The refined edge-to-edge glass design of the TF3239AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks.
The on-board iiSignage² CMS (Content Management System) gives you total control of your messaging and advertising, remotely and safely. The EShare App enables you to bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wireless easier than ever before; while the FailOver feature ensures your content is always actively displayed through your choice of inputs
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

Retail Instalations
The interactive 4K Touchscreens are the key for immersive interactive experiences for spatial retail design. Allow customers to explore your website right there and then or engage with a range of creative or experiential applications you want to host. The flexibility of either landscape or portrait modes with 24/7 Operation, built-in Android and MediaPlayer make this SERIES displays one of the most adaptable Touchscreens solutions around.

Huddle Spaces
Turn these small meeting rooms into neat Collaboration spaces by employing the embedded applications like Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app you can share, stream and edit content from any device directly on screen and transform your team meetings into an easy, fast and seamless interactive session.

Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
| Design | Edge to edge glass, Open Frame | Diagonal | 31.5", 80cm |
| Panel | IPS LED, AG coated glass, matte finish | Native resolution | 1920 x 1080 @60Hz (Full HD) |
| Aspect ratio | 16:9 | Panel brightness | 500 cd/m² |
| Brightness (with touch) | 435 cd/m² | Light transmittance | 87% |
| Static contrast | 1200:1 | Response time (GTG) | 8ms |
| Viewing zone | 178°/178° (H/V), 89° (R/L/U/D) | Colour support | 16.7M, 8bit (72% NTSC) |
| Horizontal sync | 28 – 160kHz | Viewable area (W x H) | 698.4 x 392.8mm |
| Bezel width | 22mm (all sides) | Pixel pitch | 0.363mm |
| Bezel colour & finish | Black, matte | Touch technology | Bonded PCAP |
| Touch points | 40 | Touch accuracy | ± 2.5mm |
| Touch method | Stylus, finger, glove (latex) | Through-glass | 6mm |

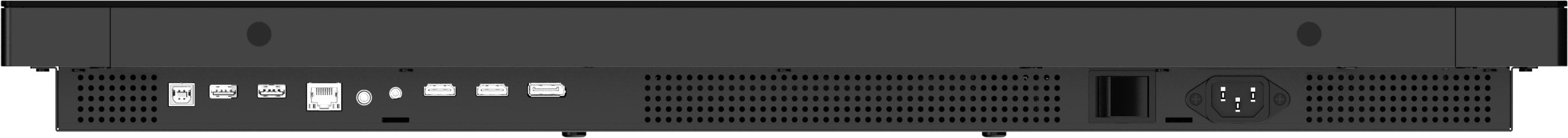

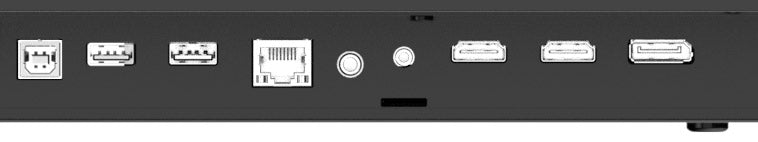

| Palm rejection | Yes | Digital inputs | HDMI x2, DisplayPort x1 |
| Control & LAN | RS-232c x1, RJ45 x1 | Speakers | 2 x 10W |
| HDCP | 2.2 | USB ports | 2 x USB 2.0 (Type-A) |
| Integrated software | Android 11 OS, iiSignage², EShare, FailOver | Hardware | A73*4 + A53*4 CPU, G52 MP8 GPU, 4GB RAM, 32GB ROM |
| Kiosk mode | Yes | Operating time | 24/7 |
| Glass hardness | 7H | Protection | IP65 (front) |

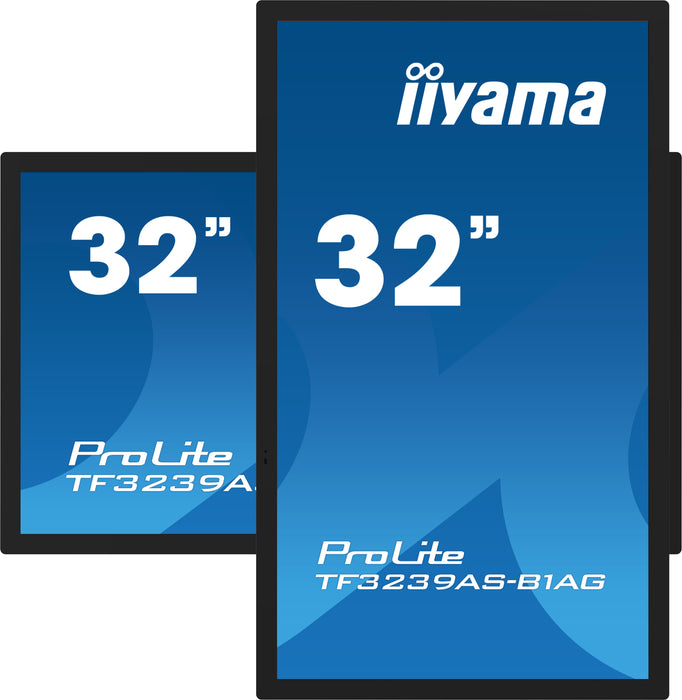

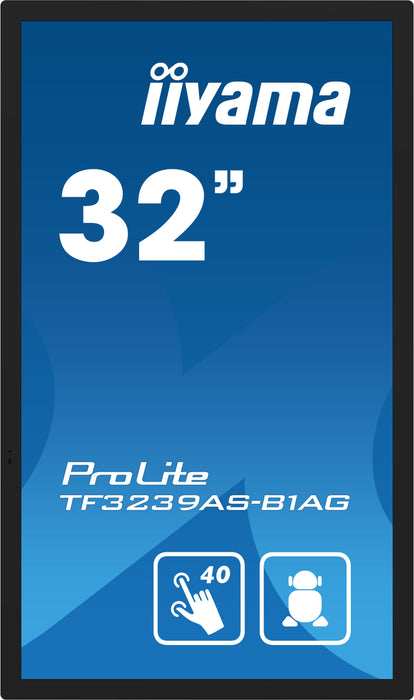

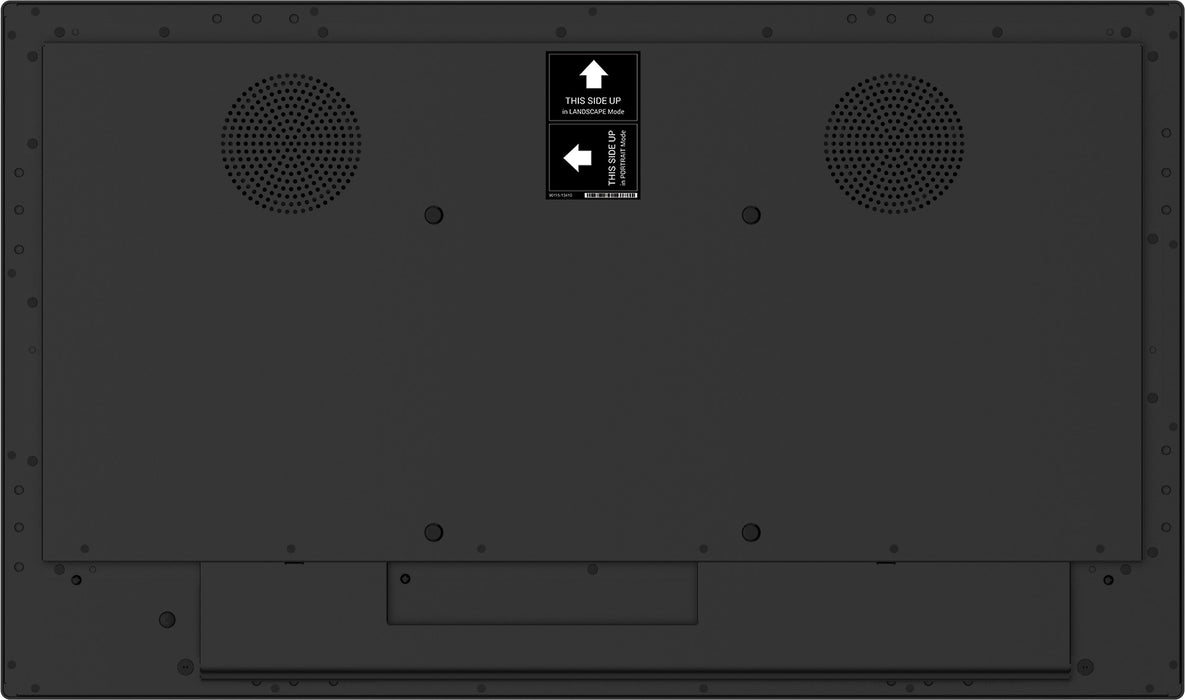

| Orientation | Landscape, Portrait, Face-up | VESA mounting | 200 x 200mm |
| Operation temperature | 0°C – 40°C | MTBF | 50,000 hours |
| Power usage | 50W typical | Energy class | F |
| Product dimensions | 746.2 x 440.7 x 62.4mm | Weight (net) | 13.2kg |
| Box dimensions | 840 x 560 x 149mm | Weight (gross) | 16.6kg |
| EAN code | 4948570123865 | Compatible accessories | OMK4-4, MD-WLIFT2031-W1, MD-CAR2031-B1 |
| Description | Downloads |
|---|---|
| iiyama ProLite TF3239AS-B1AG 32″ Full HD PCAP Touch Display Technical specification | Download |
| iiyama ProLite TF3239AS-B1AG 32″ Full HD PCAP Touch Display User Manual | Download |
| iiyama ProLite TF3239AS-B1AG 32″ Full HD PCAP Touch Display Drawing | Download |
| iiyama ProLite TF3239AS-B1AG 32″ Full HD PCAP Touch Display UK Energy Label | Download |
