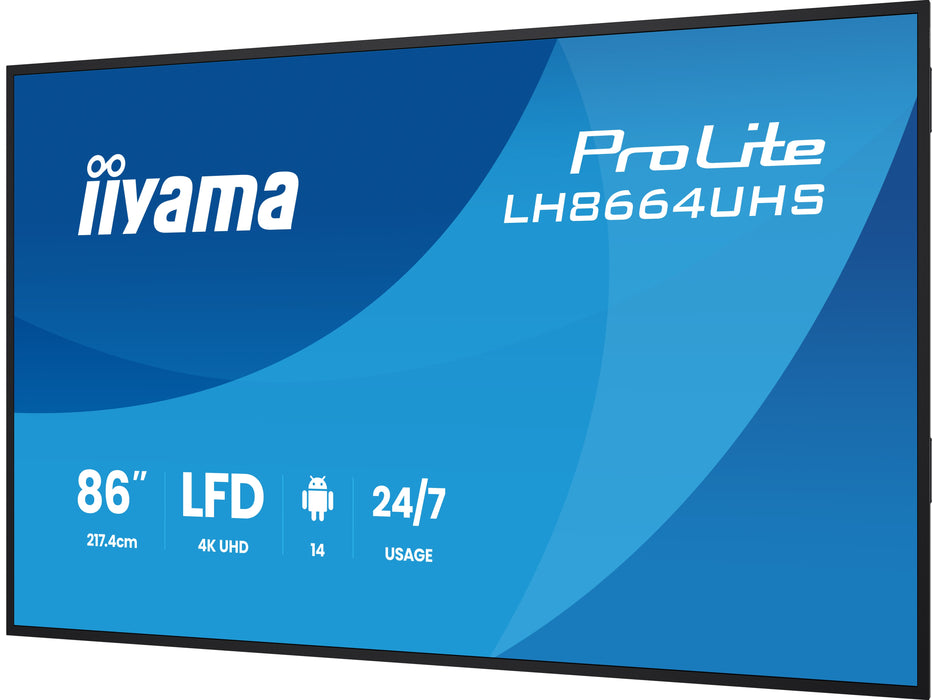

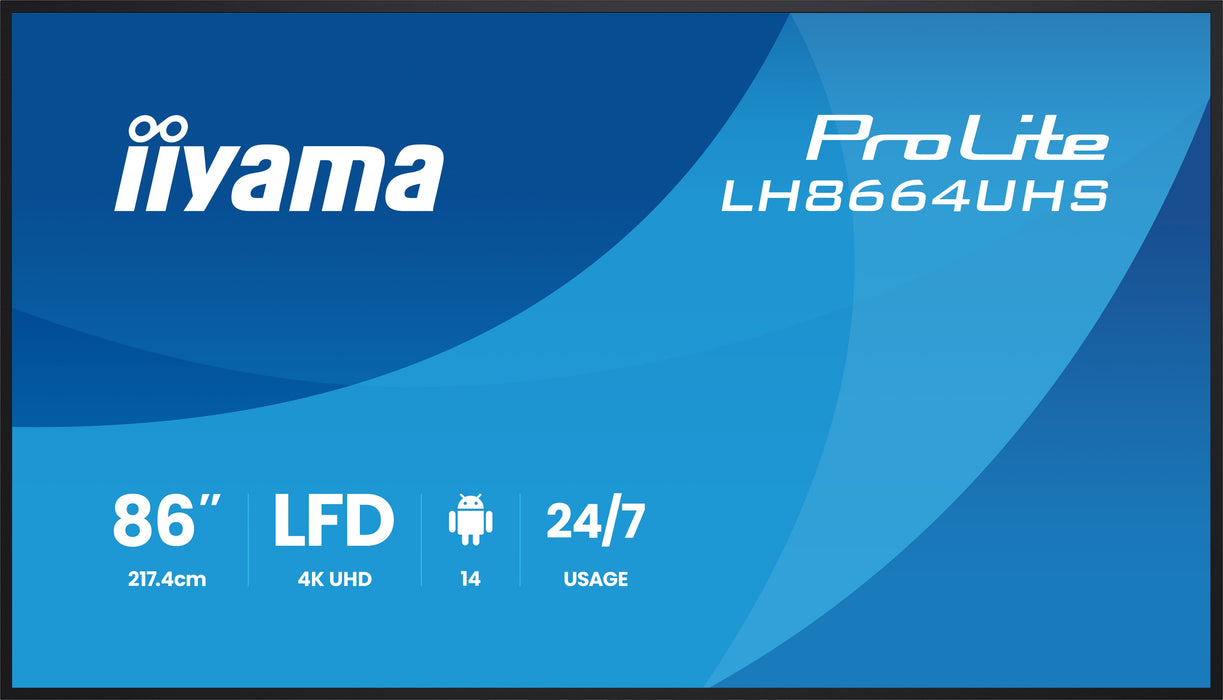

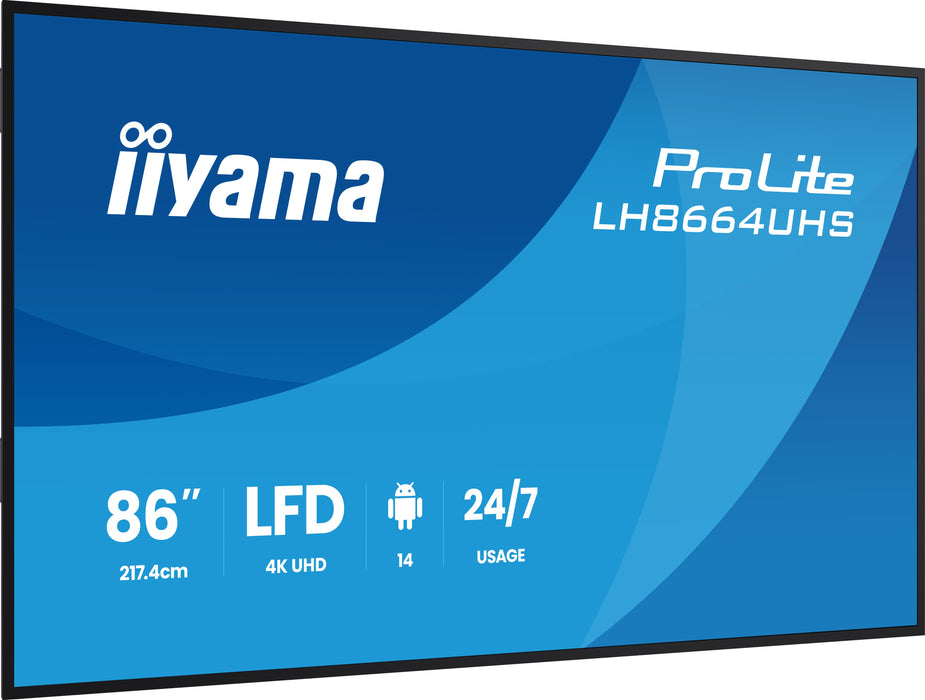

Elevate your visual communication with the LH8664UHS-B3AG and unlock the new possibilities for your business. This 450cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With Android 14 OS, iiSignage² (CMS), iiControl (DMS) and iiShare, plus EShare (Wireless Presentation) features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze. WiFi enabled, the display is ready for remote content delivery using your network or you can choose to utilise LAN control.
Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH8664UHS-B3AG will undoubtedly captivate your audience and leave a lasting impression.
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
iiControl - Device Management System
iiControl provides organizations with a convenient and fast unified management solution for terminal equipment, builds an efficient and real-time equipment management system, helps digitize the campus/office estate environment and makes device management ultra convenient. iiControl DMS is committed to maintaining compliance with GDPR.
Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.
| Design | Thin bezel | Diagonal | 85.6", 217.4cm |
| Panel | IPS, Anti-Glare coated glass, matte finish, haze 25% | Native resolution | 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD) |
| Aspect ratio | 16:9 | Panel brightness | 450 cd/m² |
| Static contrast | 1200:1 | Response time (GTG) | 8ms |
| Viewing zone | 178°/178°, right/left: 89°/89°, up/down: 89°/89° | Colour support | 1.07G (8 Bits+FRC) (NTSC 72%) |
| Horizontal Sync | 28 - 160kHz | Viewable area (W x H) | 1895 x 1066mm, 74.6 x 41.9" |
| Bezel width (sides/top/bottom) | 21.5mm, 22mm, 22mm | Pixel pitch | 0.493mm |

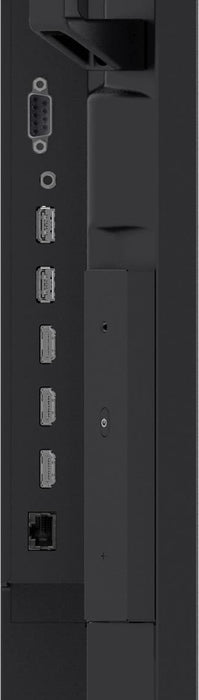

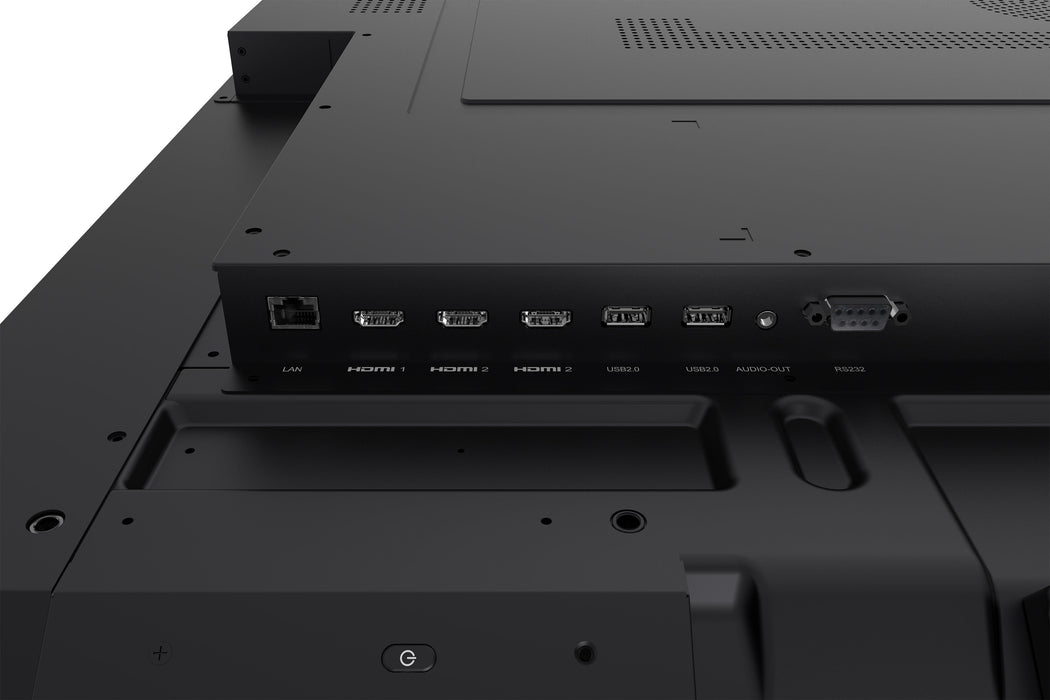

| Bezel colour and finish | Black, matte | Digital signal input | HDMI x2 (2.0, max. 3840x2160 @60Hz, HDMI1: CEC/ARC, HDMI2: CEC) |
| USB-C | x1 (2.0, 15W PD, DP ALT 1.2, Data, Touch) | Monitor control input | RS-232c x1 (2.5mm sub-mini jack) |
| LAN (RJ45) | x1 (10M/100M) | IR | x1 (3.5mm stereo mini) |
| Audio output | Mini jack x1 (3.5mm, Headphone Connector) | Speakers | 2 x 16W |
| Monitor control output | RS-232c x1 (2.5mm sub-mini jack) | IR loop through | x1 (3.5mm stereo mini) |
| HDCP | HDMI: 1.4 & 2.2, USB-C: 2.2 | USB ports | x2 (2.0) |
| USB HUB | x1 | Integrated software | Android 14, iiSignage², iiControl, iiShare, EShare, iiBrowser, MediaPlayer, TeamViewer, File manager, FailOver |
| WiFi | Yes (Built-in WiFi5, 2.4G/5G) | Hardware | Soc: MT9679, CPU: Quad Core A73*4, GPU: G52 MC1, RAM: 4GB, ROM: 32GB, NPU: 1.2T, UI: 4K @30Hz |

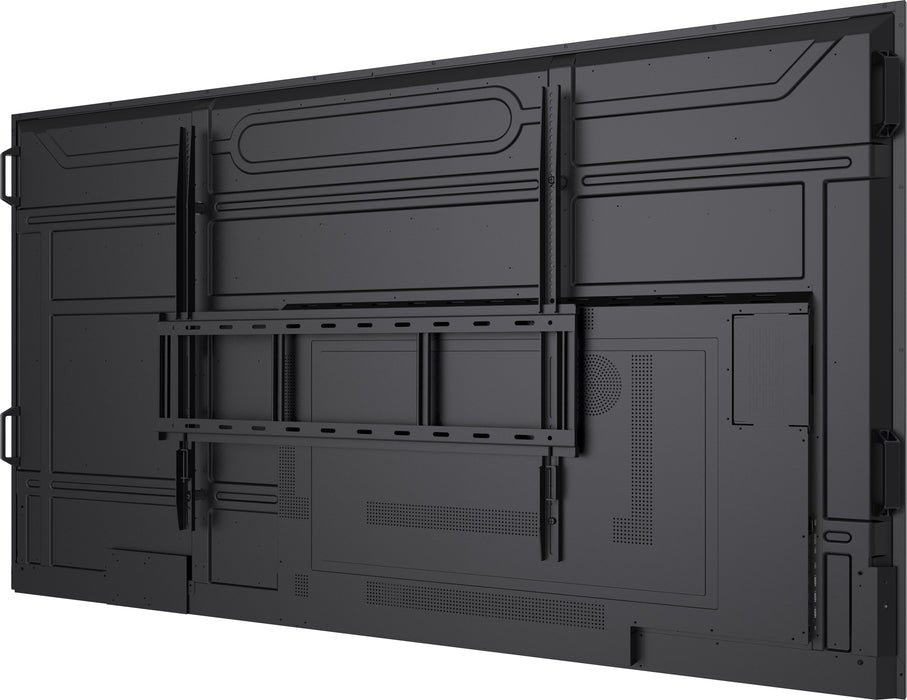

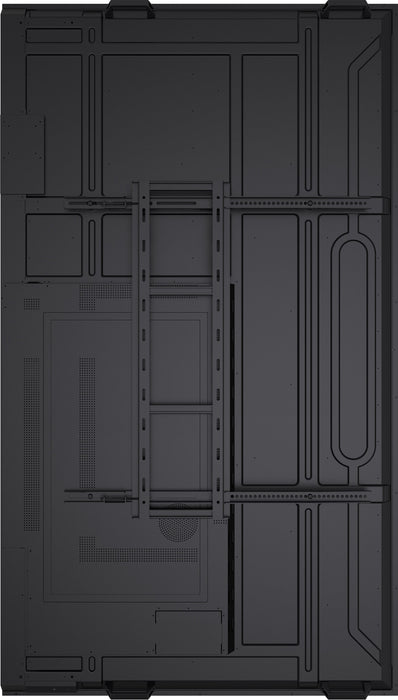

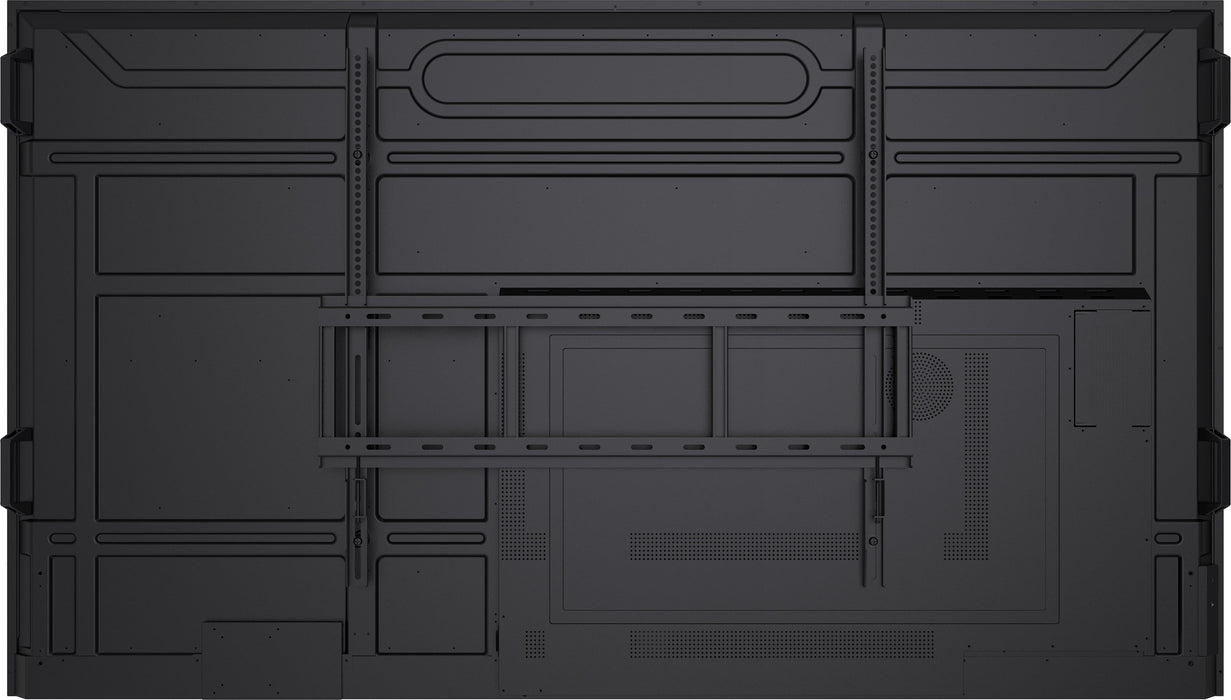

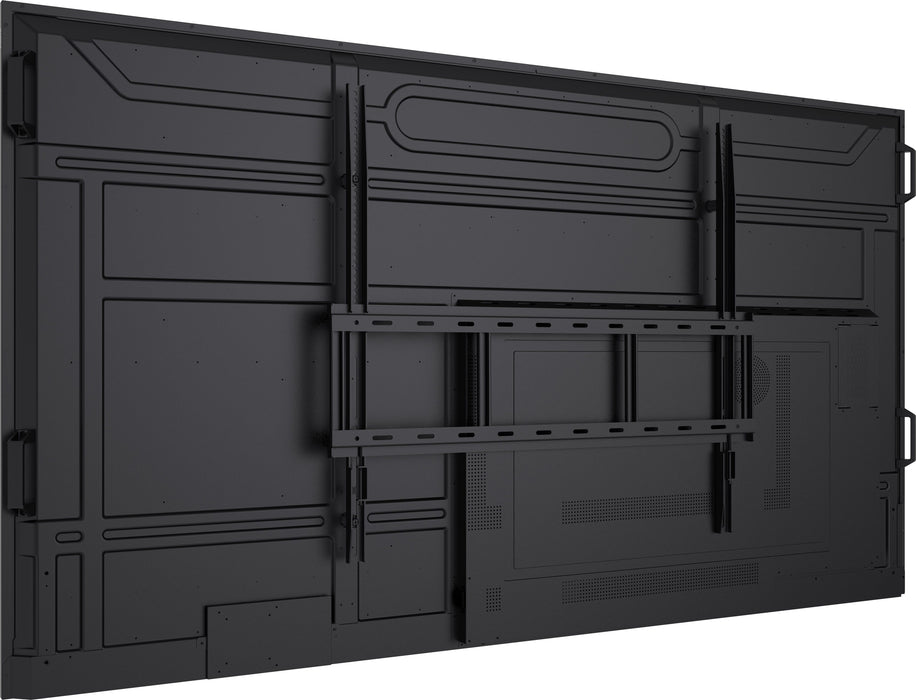

| Extra | Wall mounting kit included (VESA 800x600mm) | Max. non-stop operating time | 24/7 |
| Anti image retention | Yes | Media playback | Yes |

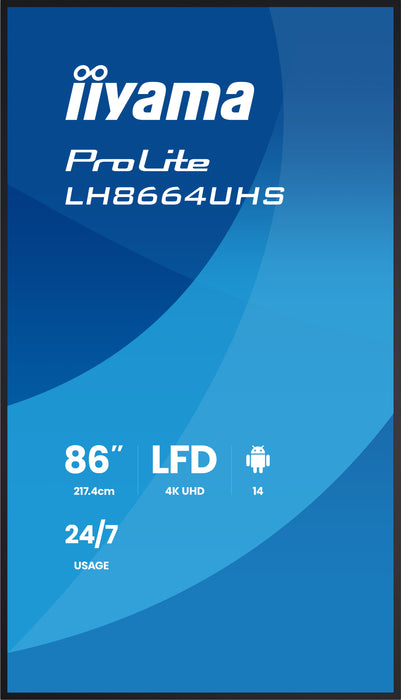

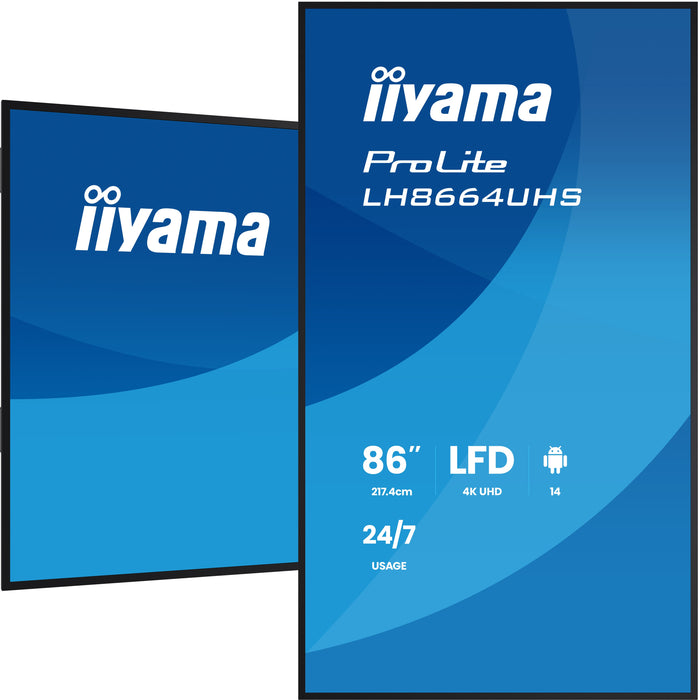

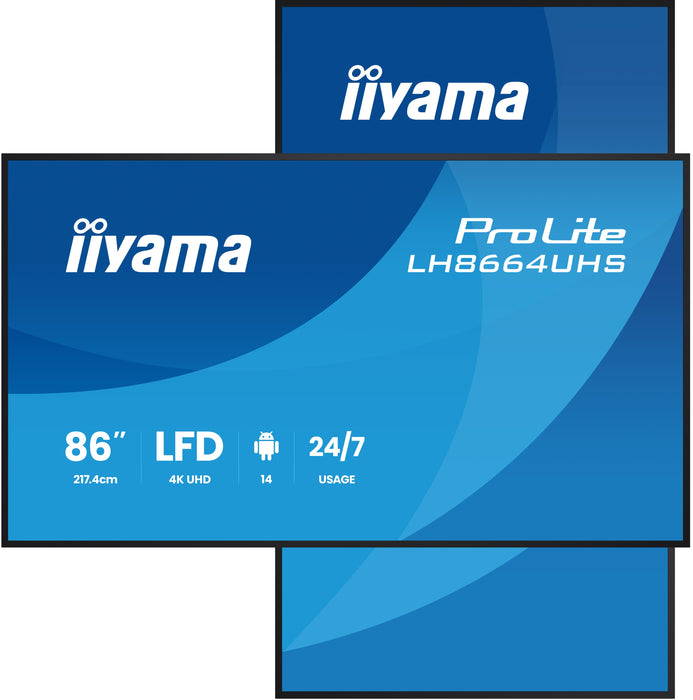

| Housing (bezel) | Metal | Orientation | Landscape, portrait |
| Fanless design | Yes | VESA mounting | 800 x 600mm |
| Operation temperature range | 0°C - 40°C | Storage temperature range | -20°C - 60°C |

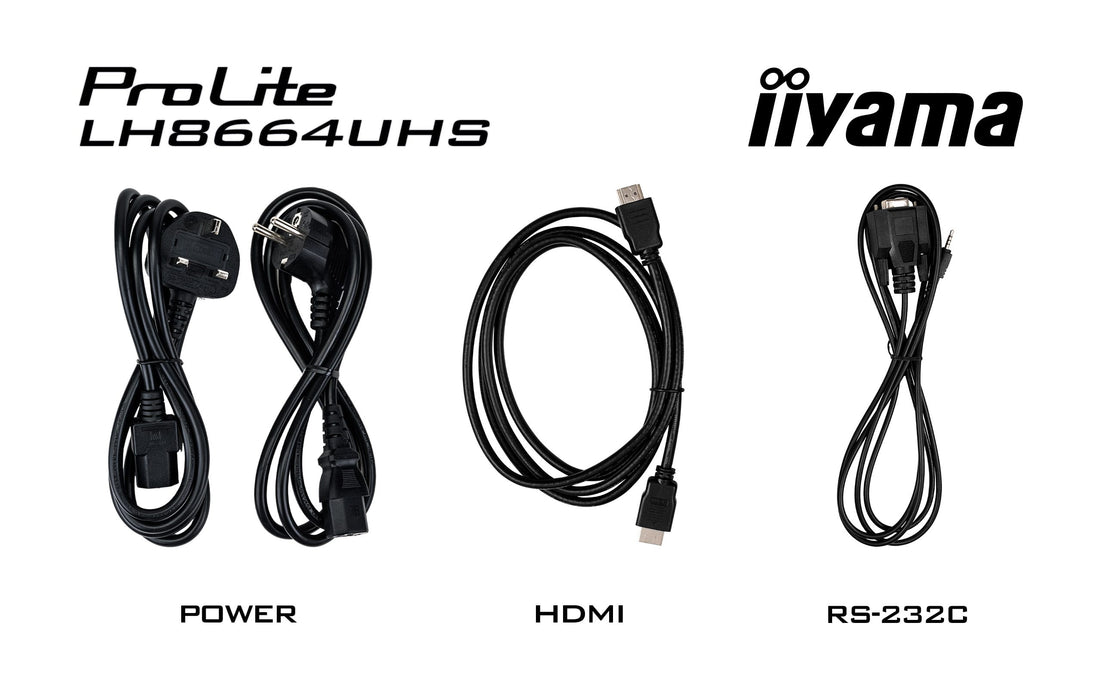

| MTBF | 50,000 hours (excluding backlight) | Cables | Power (1.8m), HDMI (1.8m), RS-232c (1.8m) |
| Guides | Quick start guide, safety guide | Other accessories | Wall mount bracket (800x600), PC Slot Bracket, Wall mount guide, Screws, Anchors, Stickers |
| Remote control | Yes (batteries included) | Power supply unit | Internal |
| Power supply | AC 100 - 240V, 50/60Hz | Power usage | 277W typical, 0.5W standby, 0.3W off mode |
| Regulations | CB, CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, EPEAT, REACH, UKCA | Energy efficiency class | G (EU 2017/1369) |
| Product dimensions (W x H x D) | 1937.8 x 1108.8 x 79.6mm | Box dimensions (W x H x D) | 2095 x 1215 x 225mm |
| Weight (without box) | 47.9kg | Weight (with box) | 62.2kg |
| EAN code | 4948570125357 |
| Description | Downloads |
|---|---|
| iiyama ProLite LH8664UHS-B3AG 86″ 4K Professional Digital Signage Display User Manual | Download |
| iiyama ProLite LH8664UHS-B3AG 86″ 4K Professional Digital Signage Display Technical Specification | Download |
| iiyama ProLite LH8664UHS-B3AG 86″ 4K Professional Digital Signage Display Drawing | Download |
| iiyama ProLite LH8664UHS-B3AG 86″ 4K Professional Digital Signage Display EU Energy Label | Download |
| iiyama ProLite LH8664UHS-B3AG 86″ 4K Professional Digital Signage Display UK Energy Label | Download |
