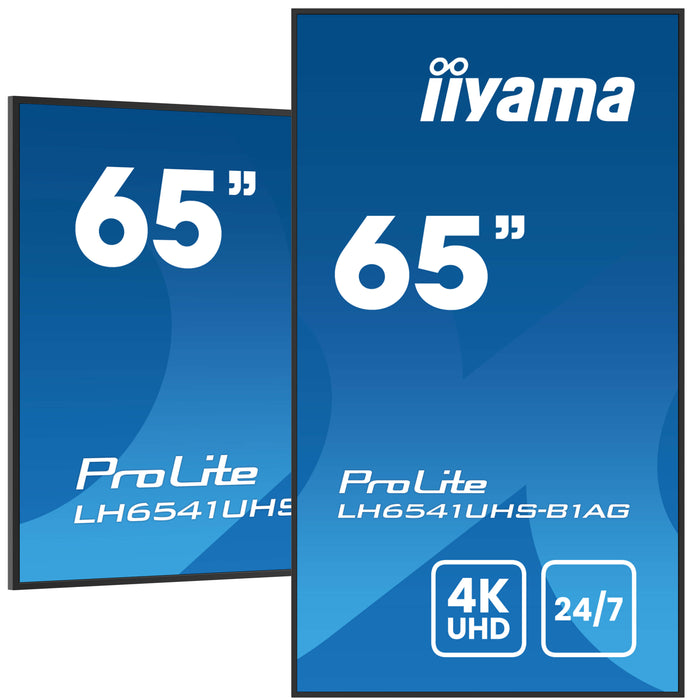

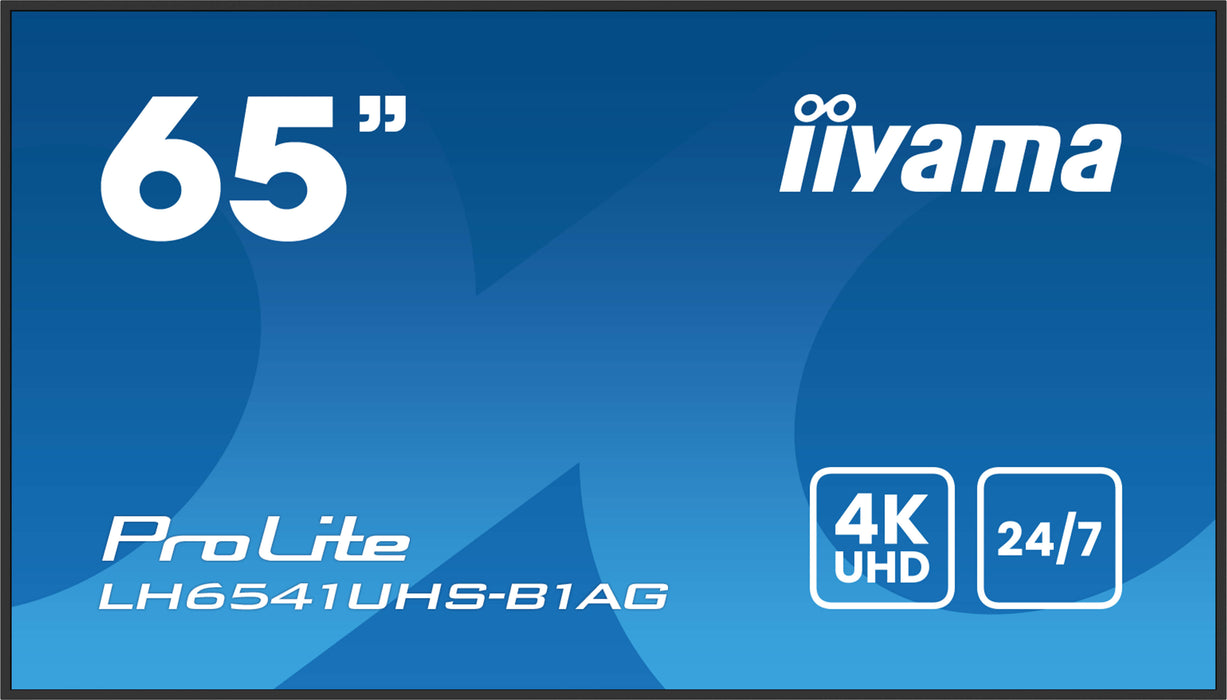

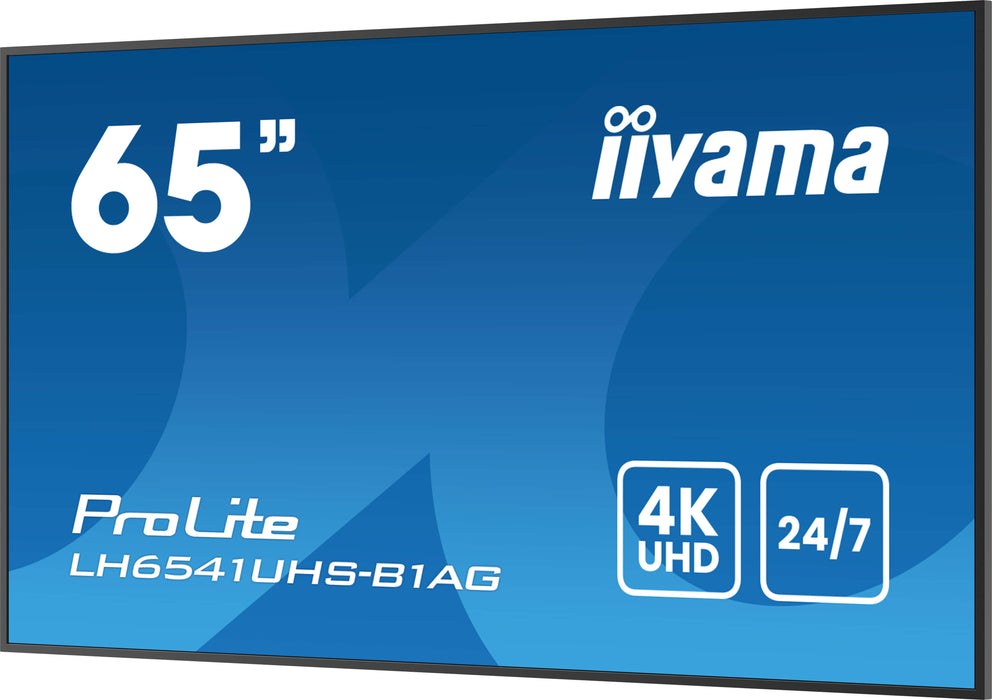

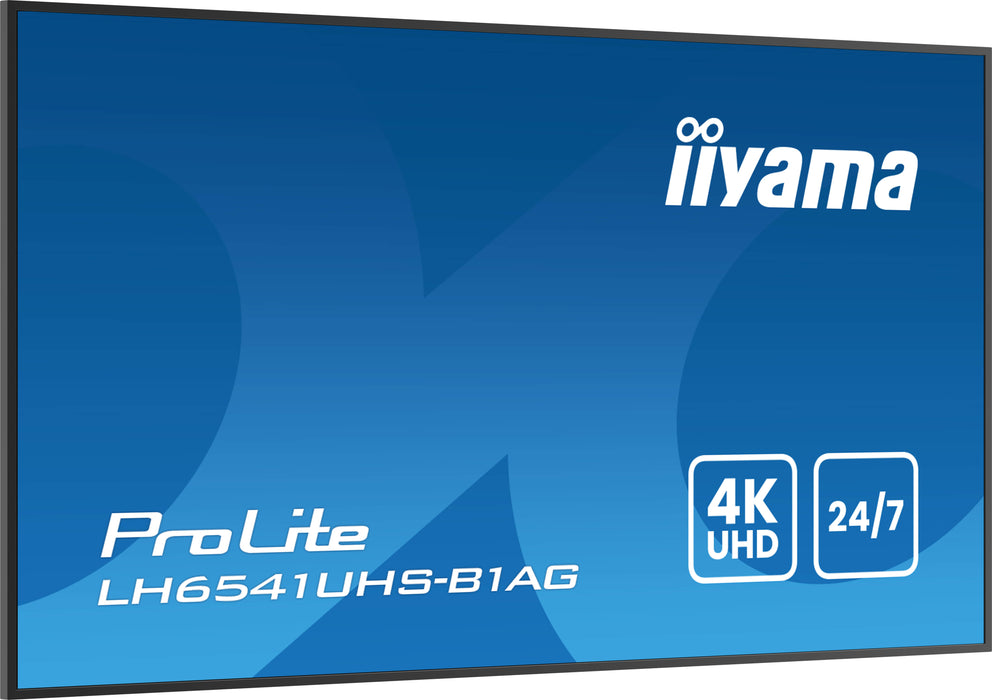

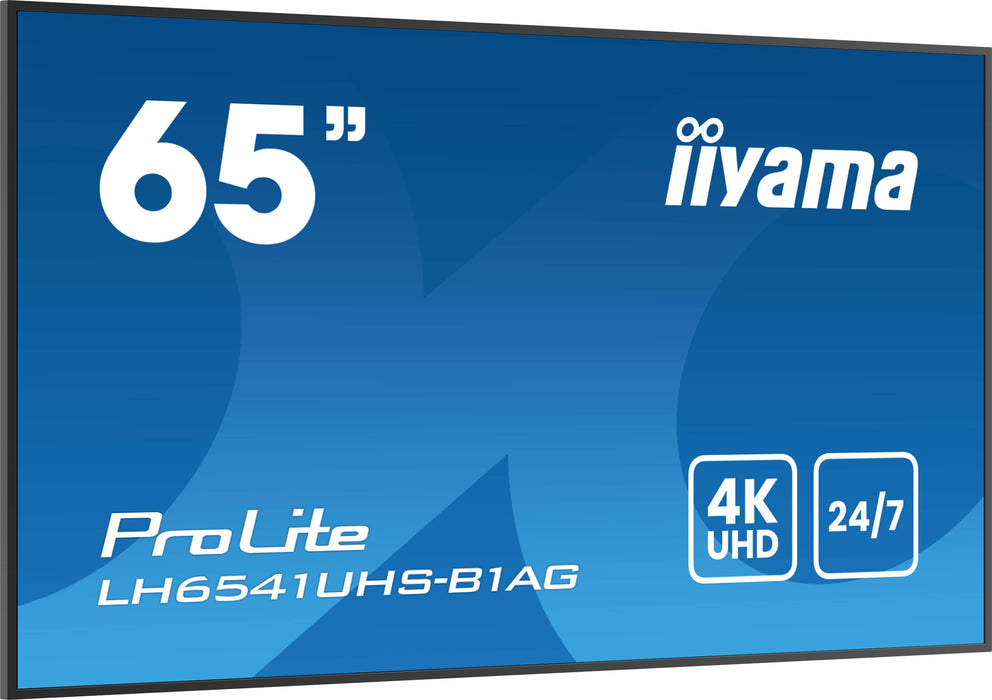

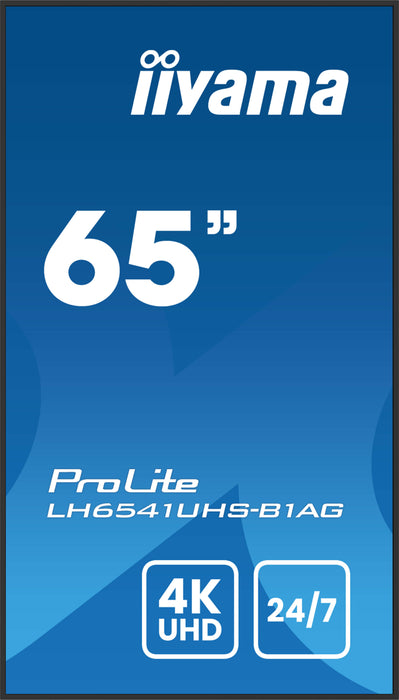

Set in a slim bezel, the iiyama LH6541UHS-B1AG is a professional digital signage display offering 24/7 operating time in portrait and landscape orientation.
This 500cd/m² high brightness VA panel with 4K UHD resolution (3840x2160) provides exceptional colour and image performance. With the built-in media player you can play your favourite music and show your most beautiful videos, photos and images directly on screen.

4K
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

LAN Control
LAN control enables making adjustments in the display OSD menu through your network (software not included).

VA
VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

AG Coating
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

Media player (in pivot not supported)
Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.
| Design | Thin bezel | Diagonal | 64.5", 164cm |
| Panel | VA, Anti-Glare coated glass, matt finish, haze 25% | Native resolution | 3840 x 2160 (8.3MP 4K UHD) |
| Aspect ratio | 16:9 | Panel brightness | 500 cd/m² |
| Static contrast | 5000:1 | Response time (GTG) | 6.5ms |
| Viewing zone | 178°/178° (H/V), 89° (R/L/U/D) | Colour support | 1.07G (8 Bits+FRC), NTSC 72% |
| Horizontal sync | 30 – 80kHz | Viewable area (W x H) | 1428.5 x 803.5mm |
| Bezel width | 12.8mm (all sides) | Pixel pitch | 0.372mm |
| Bezel colour & finish | Black, glossy | Digital signal input | HDMI x3 (2.0) |

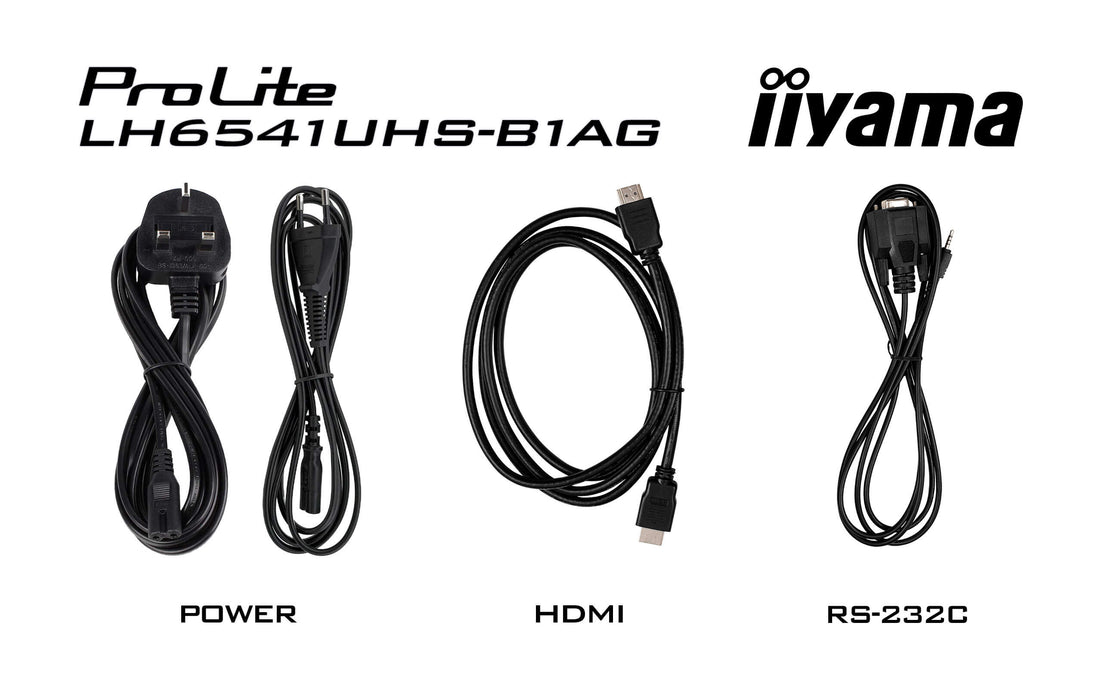

| LAN / Control | RJ45 x1, RS-232c in/out | IR | IR in / loop through |
| Speakers | 2 x 10W | HDCP | 2.2 |
| USB ports | x1 USB 2.0 (Media Player) | Operating time | 24/7 |

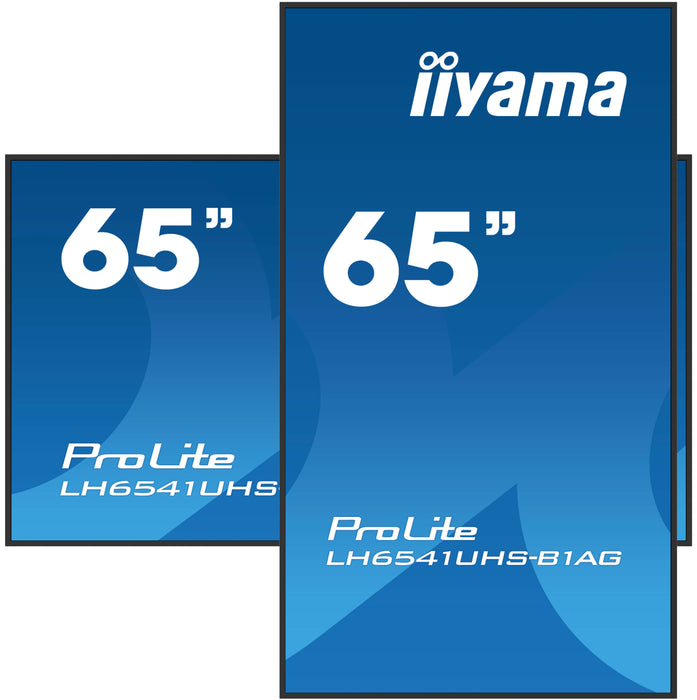

| Media playback | Yes (pivot not supported) | Orientation | Landscape / Portrait |

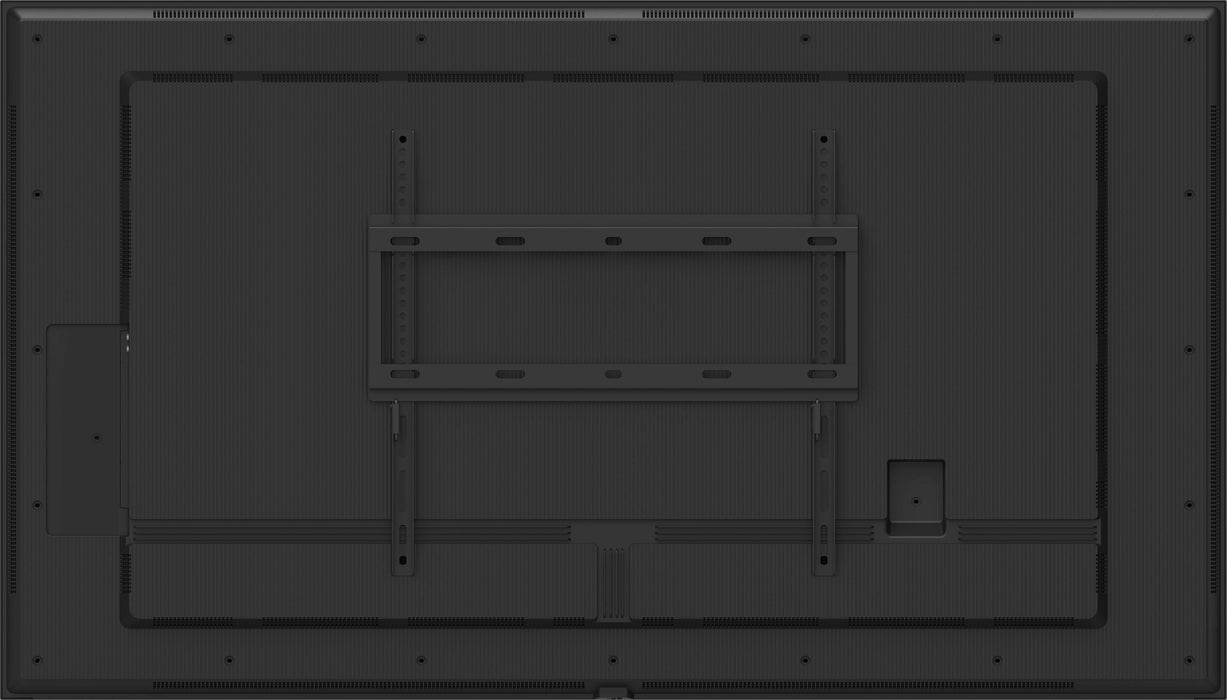

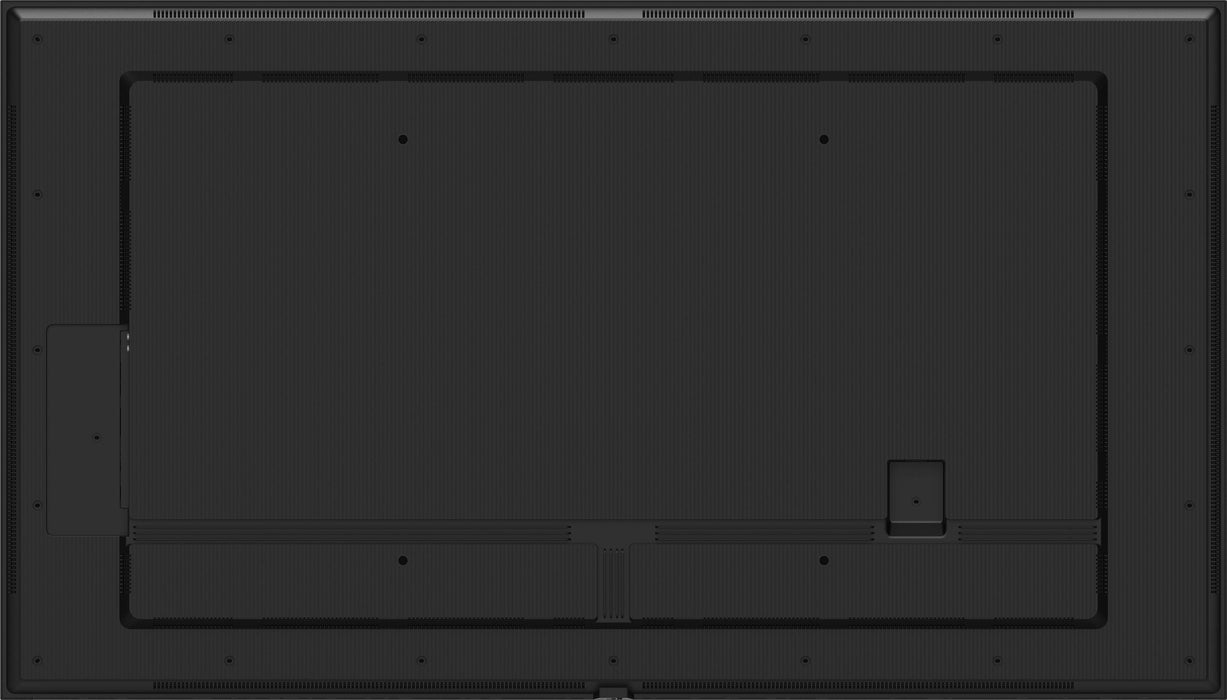

| Fanless design | Yes | VESA mounting | 500 x 500mm |
| Operating temperature | 0°C – 40°C | Storage temperature | -20°C – 60°C |
| MTBF | 50,000 hours | Power usage | 115W typical |
| Power supply | AC 100–240V, 50/60Hz | Energy class | G |
| REACH SVHC | Lead (>0.1%) | Product dimensions (W x H x D) | 1456.5 x 831.5 x 69mm |
| Weight (net) | 17.7kg | Weight (gross) | 25.7kg |
| Box dimensions | 1640 x 990 x 164mm | EAN code | 4948570124558 |
| Compatible WiFi accessories | MD-WLIFT2031-W1, MD-CAR2031-B1 | Related products | LH4341UHS-B2, LH5541UHS-B2, LH5041UHS-B2AG |
| Description | Downloads |
|---|---|
| iiyama ProLite LH6541UHS-B1AG 65″ 4K UHD Digital Signage Display Technical Specification | Download |
| iiyama ProLite LH6541UHS-B1AG 65″ 4K UHD Digital Signage Display User Manual | Download |
| iiyama ProLite LH6541UHS-B1AG 65″ 4K UHD Digital Signage Display Drawing | Download |
| iiyama ProLite LH6541UHS-B1AG 65″ 4K UHD Digital Signage Display UK Energy Label | Download |
