Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.
Smart Display Module
A Smart Display Module (Small/Large) is a plug-in module which can easily be inserted into the most stylish and ultra-slim displays. This small sized module delivers great performance with minimum implementation and management. Available as optional.

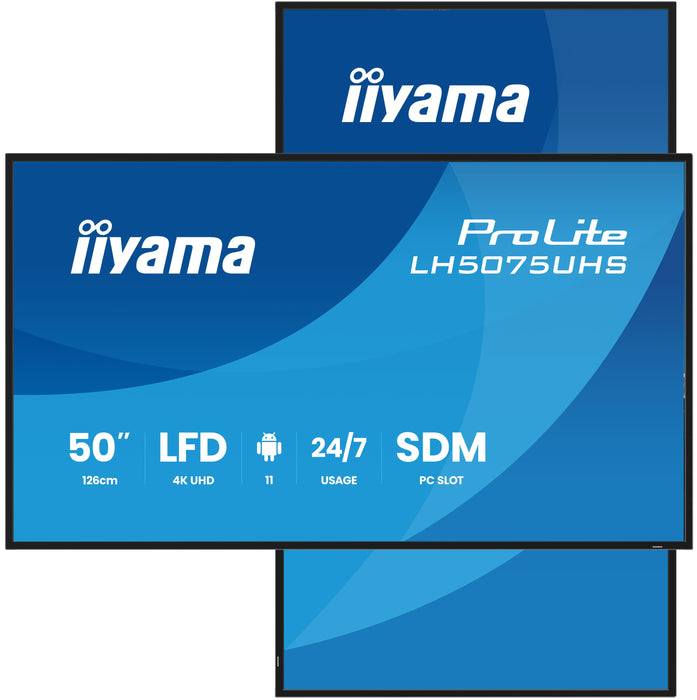

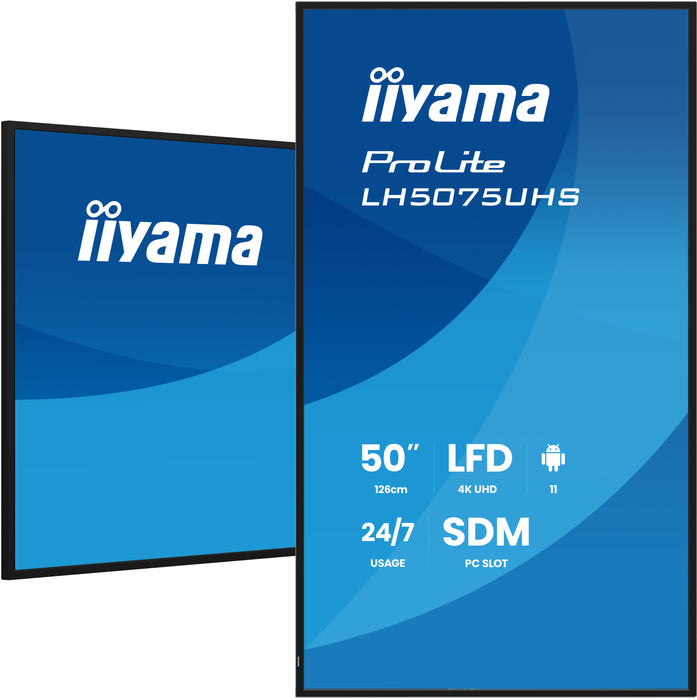

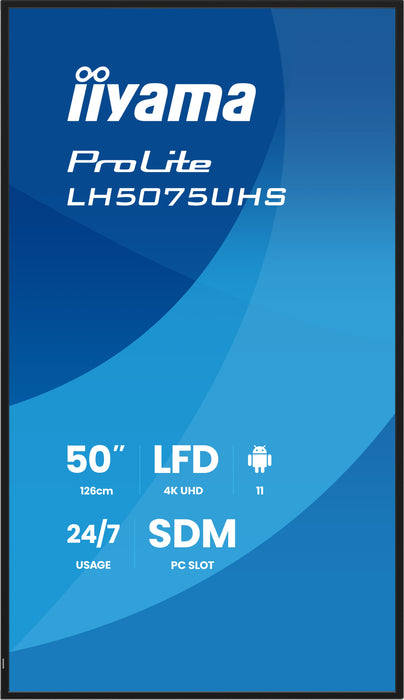

Flexible Orientation
With the option to switch between landscape and portrait mode, these displays let you get creative with any space. Whether it’s messaging, ads, videos, or safety info, you can tailor your content to grab attention exactly how you want.
Speakers
The built-in speakers offer high-quality sound, ensuring crystal-clear audio during multimedia playback.

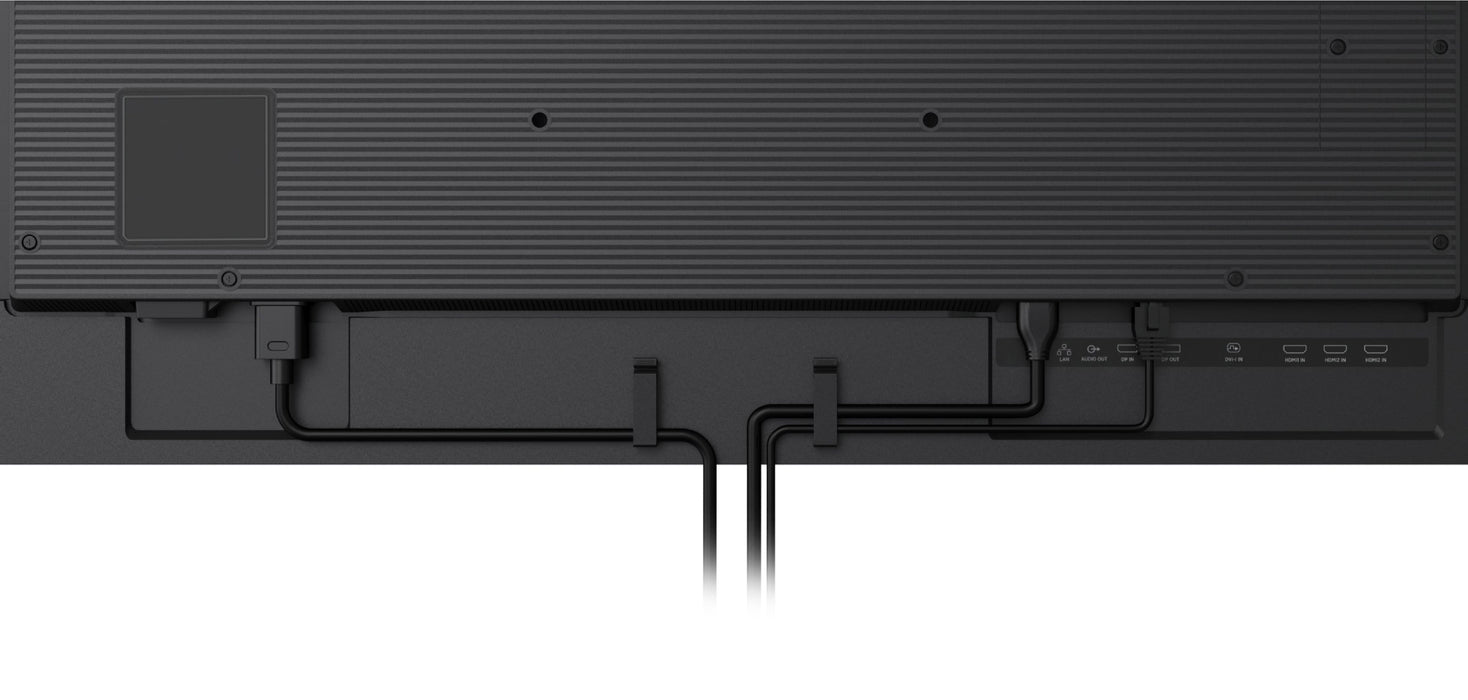

Cable Management
Cables can be neatly tied and routed with the special cable clips, so they cannot come loose or move around.
| Design | Thin bezel | Diagonal | 49.5", 125.7cm |
| Panel | VA, AG coated glass, matte finish, haze 25% | Native resolution | 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD) |
| Aspect ratio | 16:9 | Panel brightness | 500 cd/m² |
| Static contrast | 5000:1 | Response time (GTG) | 9.5ms |
| Viewing zone | 178°/178°, right/left: 89°/89°, up/down: 89°/89° | Colour support | 1.07B 8bit (NTSC 72%) |
| Horizontal Sync | 28 - 160kHz | Viewable area W x H | 1095.8 x 616.4mm, 43.2 x 24.3" |
| Bezel width | 14.9mm (sides, top, bottom) | Pixel pitch | 0.285mm |

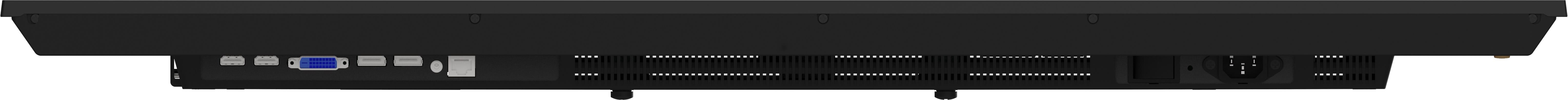

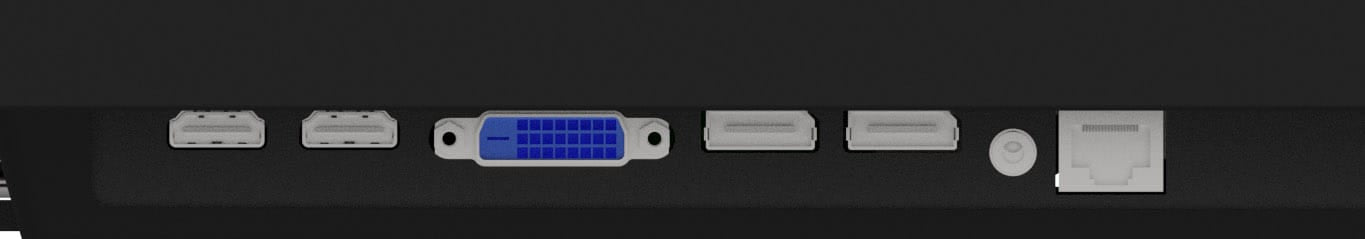

| Bezel colour & finish | Black, matte | Digital signal input | HDMI x3 (v2.0), DisplayPort x1 (v1.2) |
| Monitor control input | RS-232c x1, RJ45 x1, IR x1 | Digital signal output | DisplayPort x1, MST Daisy Chain |
| Audio output | Mini jack 3.5mm | Speakers | 2 x 10W |
| Monitor control output | RS-232c x1, IR loop-through | HDCP | v2.2 |

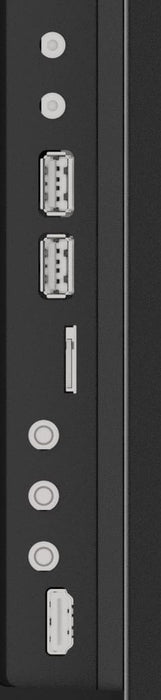

| USB ports | 2 x (v2.0) | Integrated software | Android 11, iiSignage², iiControl, iiShare, EShare, FailOver |
| WiFi | 802.11ac (built-in) | Hardware | SOC A311D2, CPU A73x4+A53x4, GPU G52 MP8, RAM 4GB, ROM 32GB |
| Extra | Intel® SDM-L, micro SD card slot | Max operating time | 24/7 |
| Anti image retention | Yes | Video wall / daisy chain | Yes (MST-output) |
| Media playback | Yes | Housing (bezel) | Metal |
| OSD languages | EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB | Control buttons | Power |
| Orientation | Landscape, portrait | Fanless design | Yes |

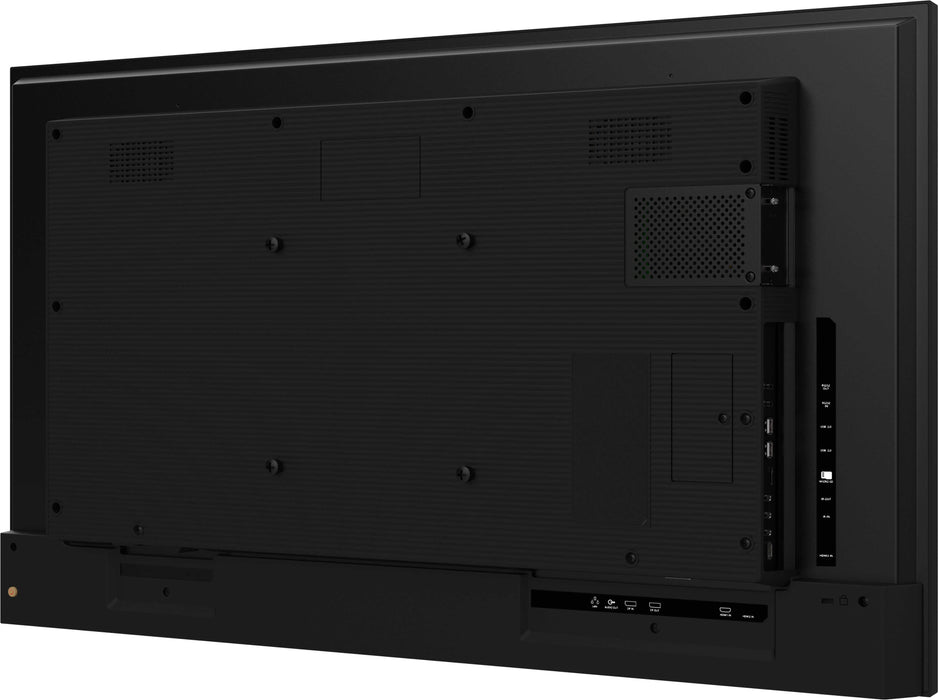

| VESA mounting | 400 x 400mm | Mini PC mount | VESA 100 x 100 |
| Operating temp | 0°C - 40°C | Storage temp | -20°C - 60°C |

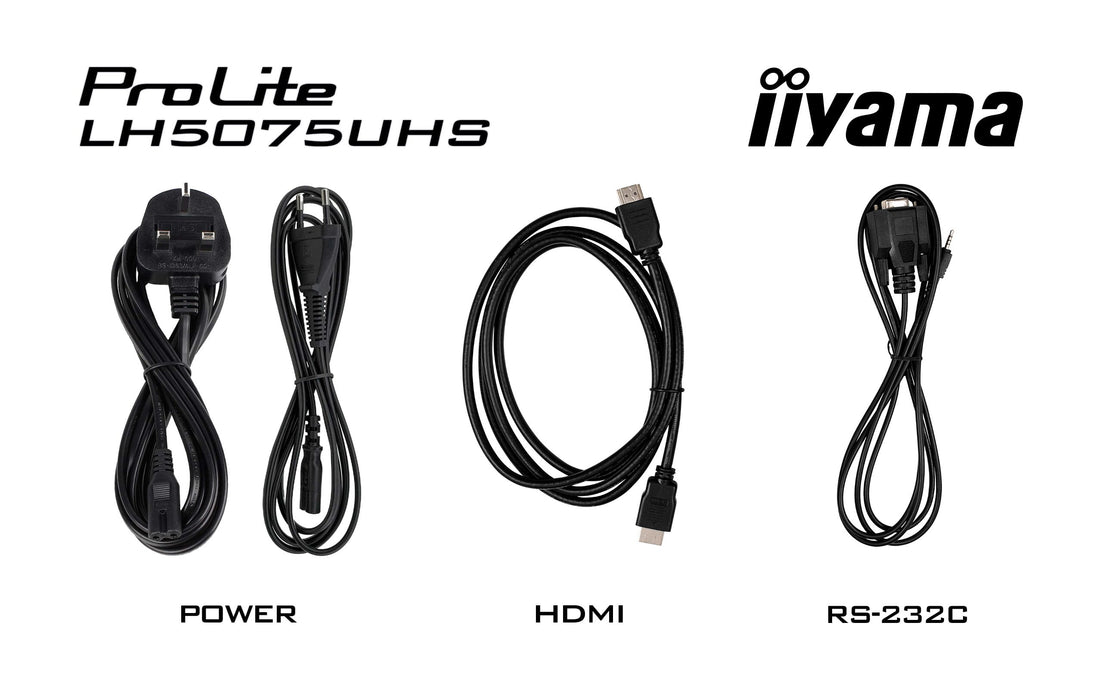

| MTBF | 44,000 hours (excluding backlight) | Accessories included | Power, HDMI, RS-232c cables, guides, remote |
| Power supply unit | Internal | Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 112W typical, 0.5W standby, 0.3W off | Sustainability | CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA |
| Energy efficiency class | G (EU 2017/1369) | Dimensions (W x H x D) | 1122.7 x 643.6 x 55mm |
| Box dimensions | 1261 x 761 x 132mm | Weight (without box) | 11.8kg |
| Weight (with box) | 16.2kg | EAN code | 4948570125241 |
| Description | Downloads |
|---|---|
| iiyama LH5075UHS-B2AG 50″ 4K Professional Digital Signage Display Technical Specification | Download |
| iiyama LH5075UHS-B2AG 50″ 4K Professional Digital Signage Display User Manual | Download |
| iiyama LH5075UHS-B2AG 50″ 4K Professional Digital Signage Display Drawing | Download |
| iiyama LH5075UHS-B2AG 50″ 4K Professional Digital Signage Display UK Energy Label | Download |
